CODE 3 - MAP Sensor Circuit
CODE 3 - MAP Sensor Circuit

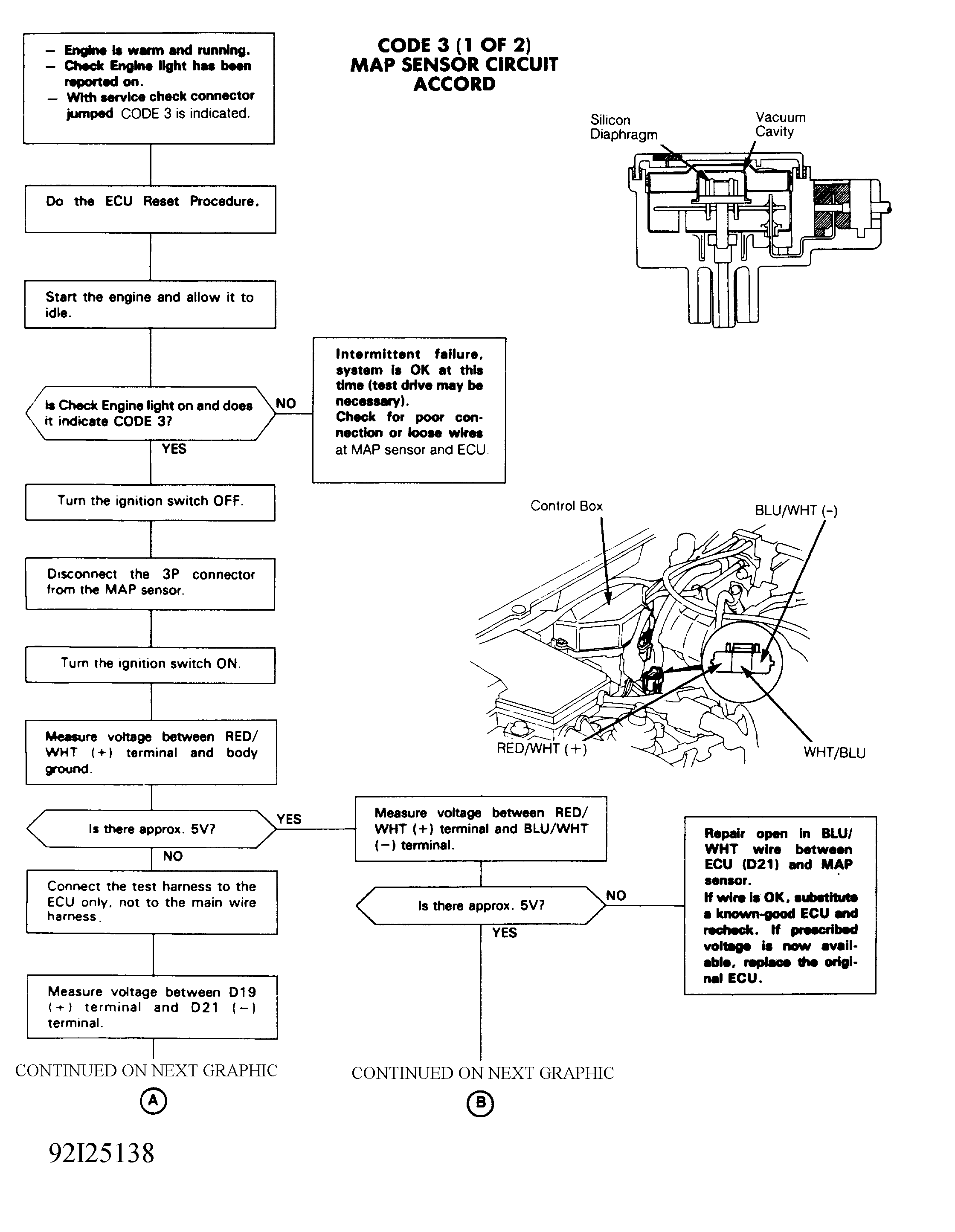

Fig 1: Code 3 Chart (1 of 2) - MAP Sensor Circuit

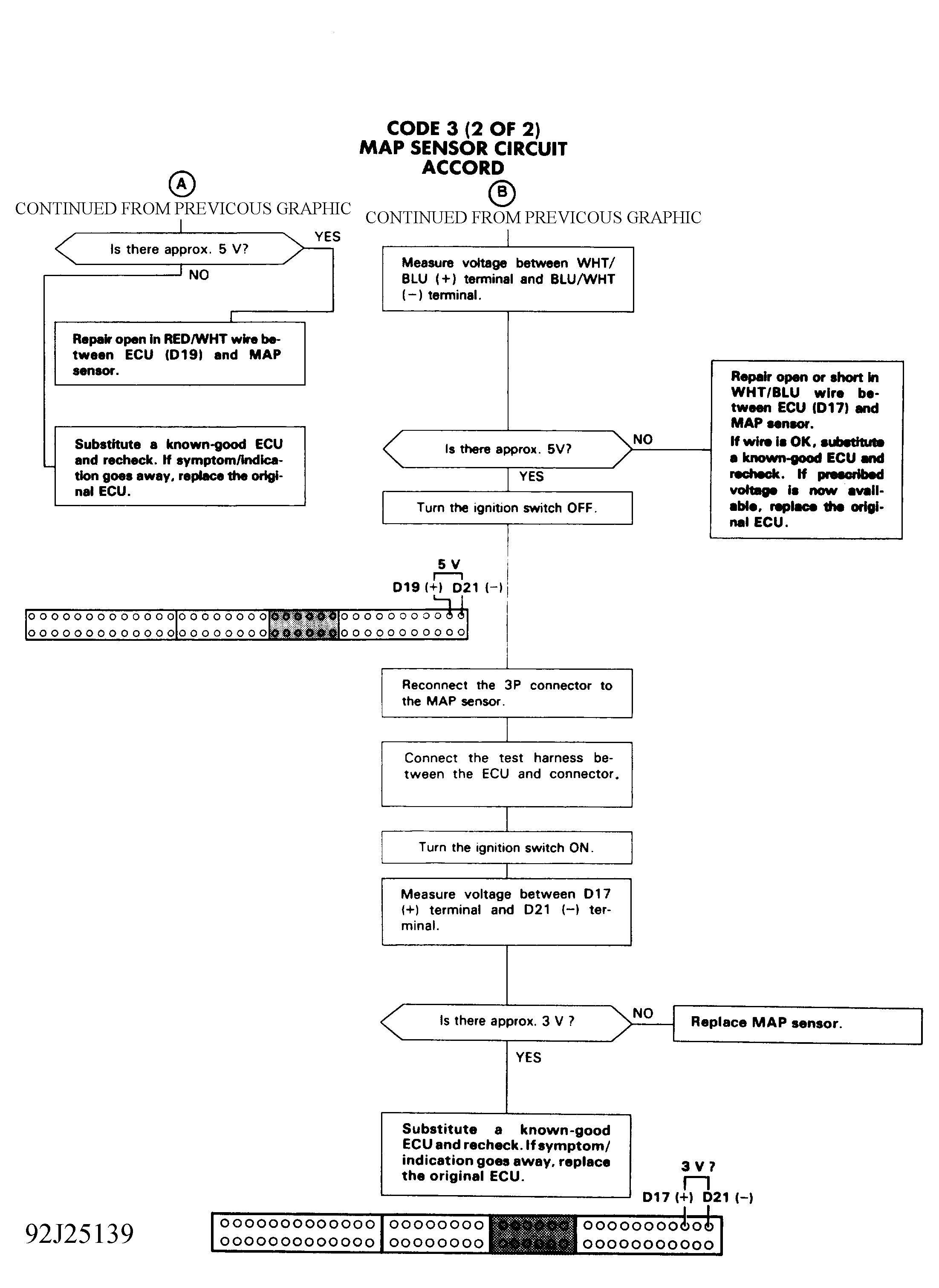

Fig 2: Code 3 Chart (2 of 2) - MAP Sensor Circuit
