Ignition Key Switch

  1. Remove the steering column lower cover. Then disconnect the 5-P connector from the main wire harness. See Fig 1 .
  2. Remove the key switch from the key cylinder by removing attaching screw.
  3. To install, reverse removal procedures.

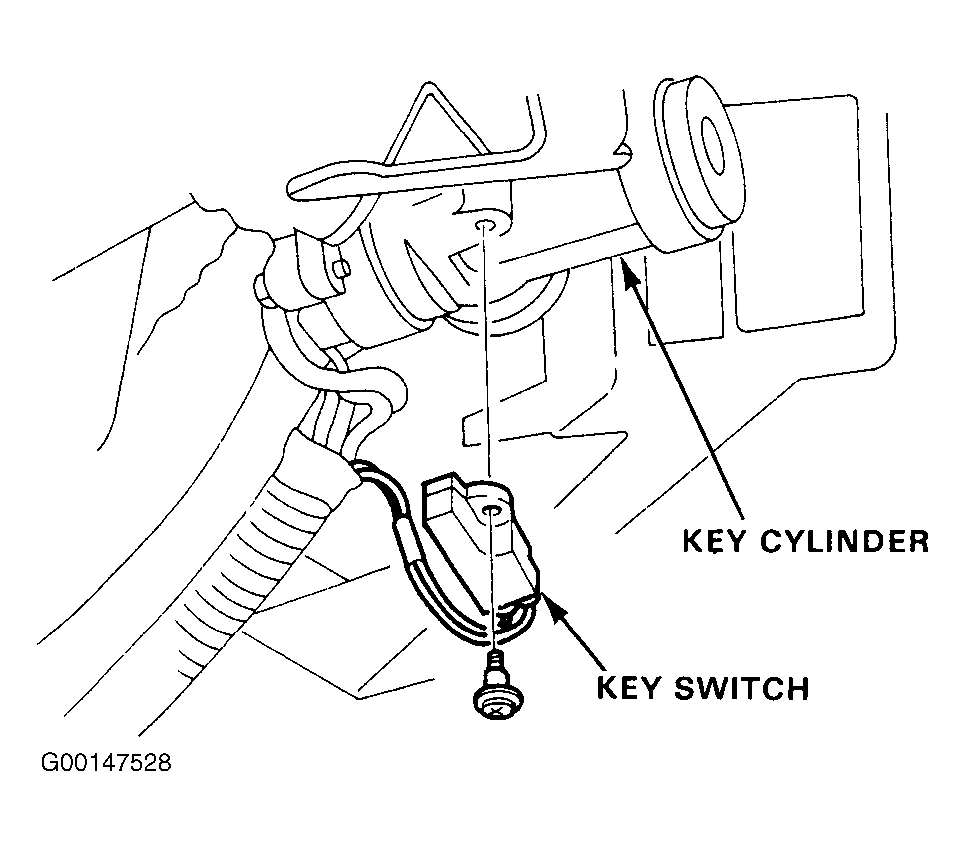

Fig 1: Removing & Installing Ignition Key Switch
G00147528Courtesy of AMERICAN HONDA MOTOR CO., INC.
