Side Marker Light Flasher System

For connector terminal identification see Figure . For input test see Fig 1 .

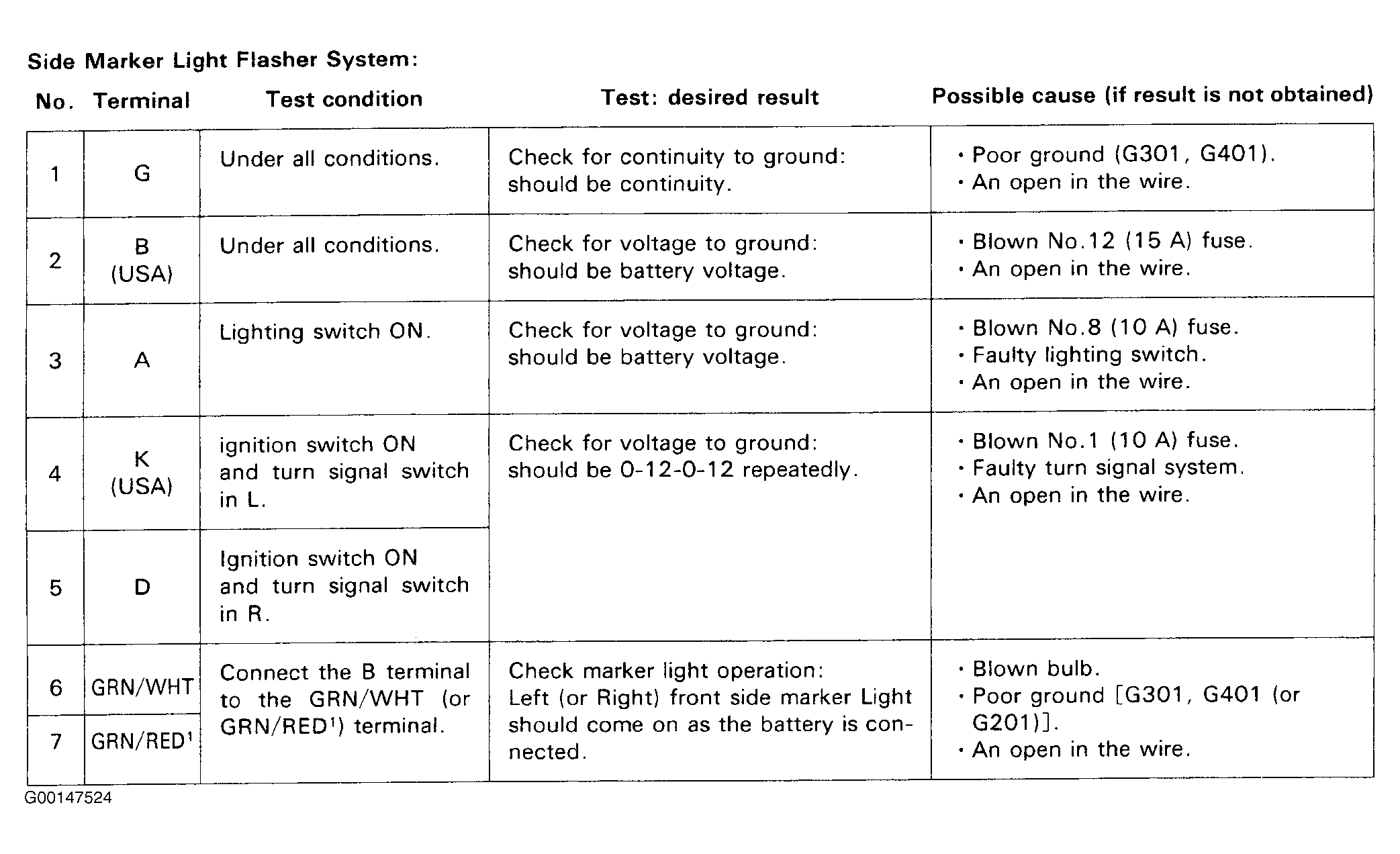

Fig 1: Side Marker Light Flasher System Input Test
G00147524Courtesy of AMERICAN HONDA MOTOR CO., INC.
