Seat Belt/Key-On Warning System

For connector terminal identification see Figure . For input test see Fig 1 .

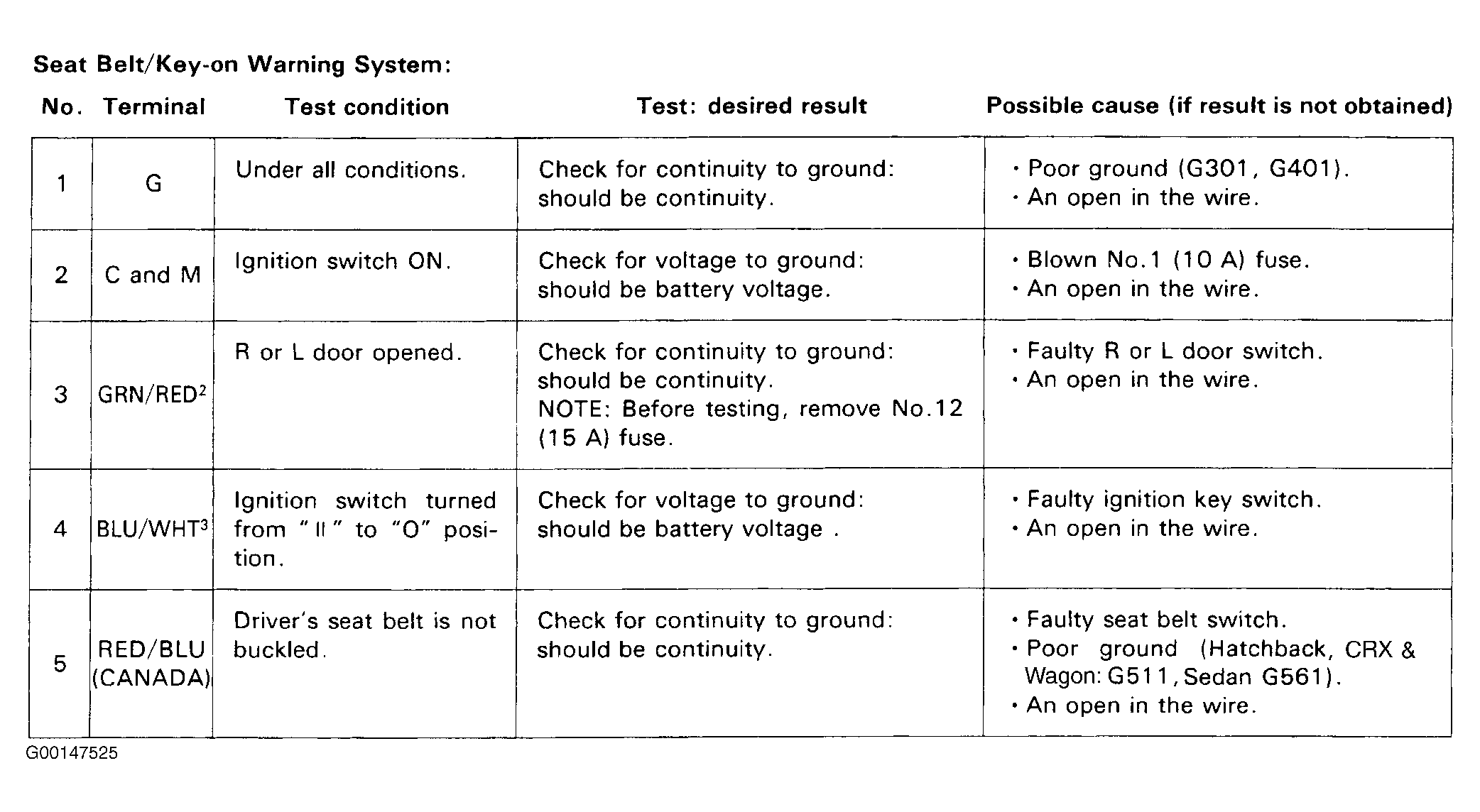

Fig 1: Seat Belt/Key-On Warning System Input Test

G00147525

Courtesy of AMERICAN HONDA MOTOR CO., INC.
