Driver's Switch Test

  1. Remove the door trim panel. See DOOR TRIM PANEL  under REMOVAL & INSTALLATION.
  2. Check for continuity between the terminals in each switch position according to the tables. See Fig 1 and Fig 2 .

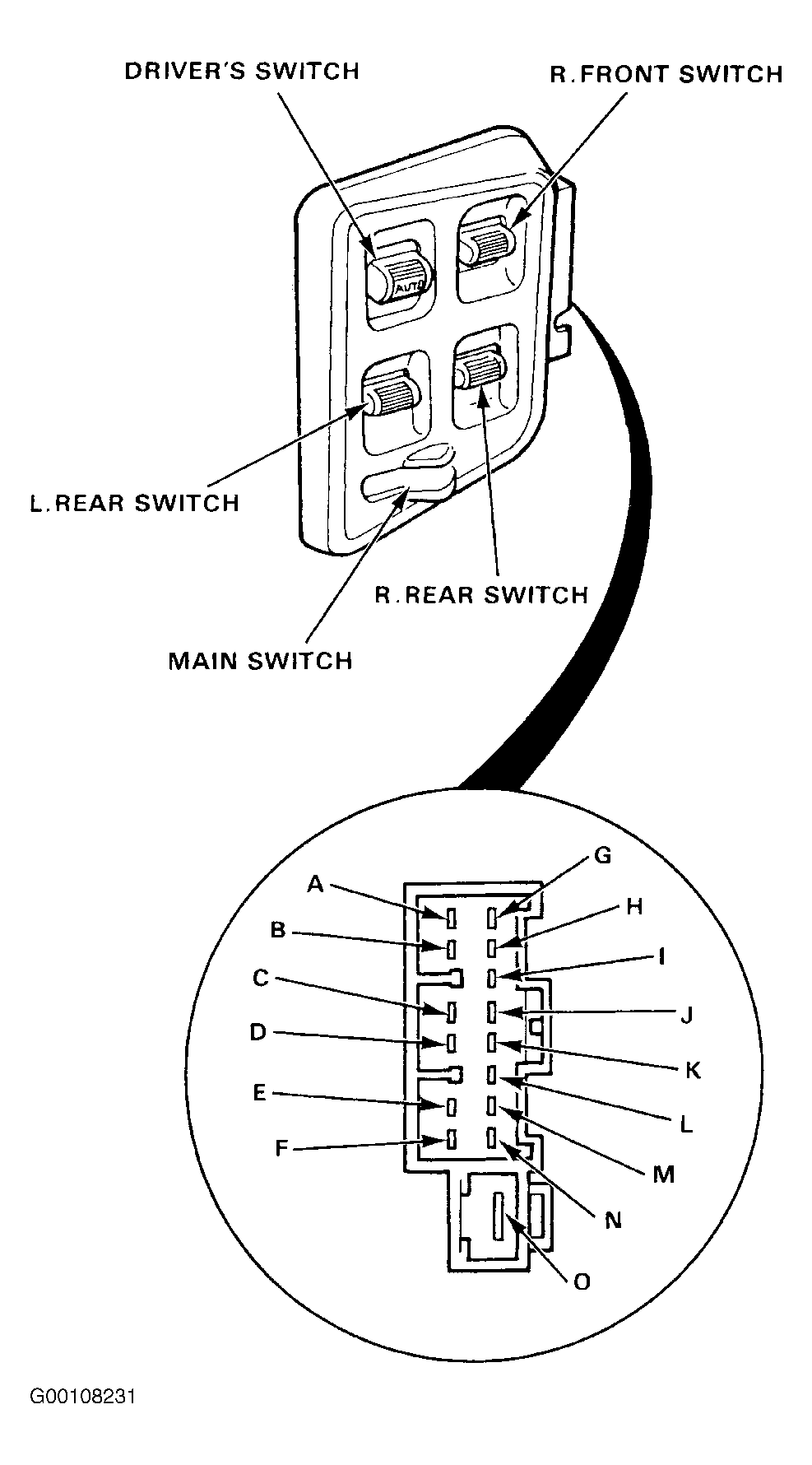

Fig 1: Identifying Driver's Switch Terminals
G00108231Courtesy of AMERICAN HONDA MOTOR CO., INC.

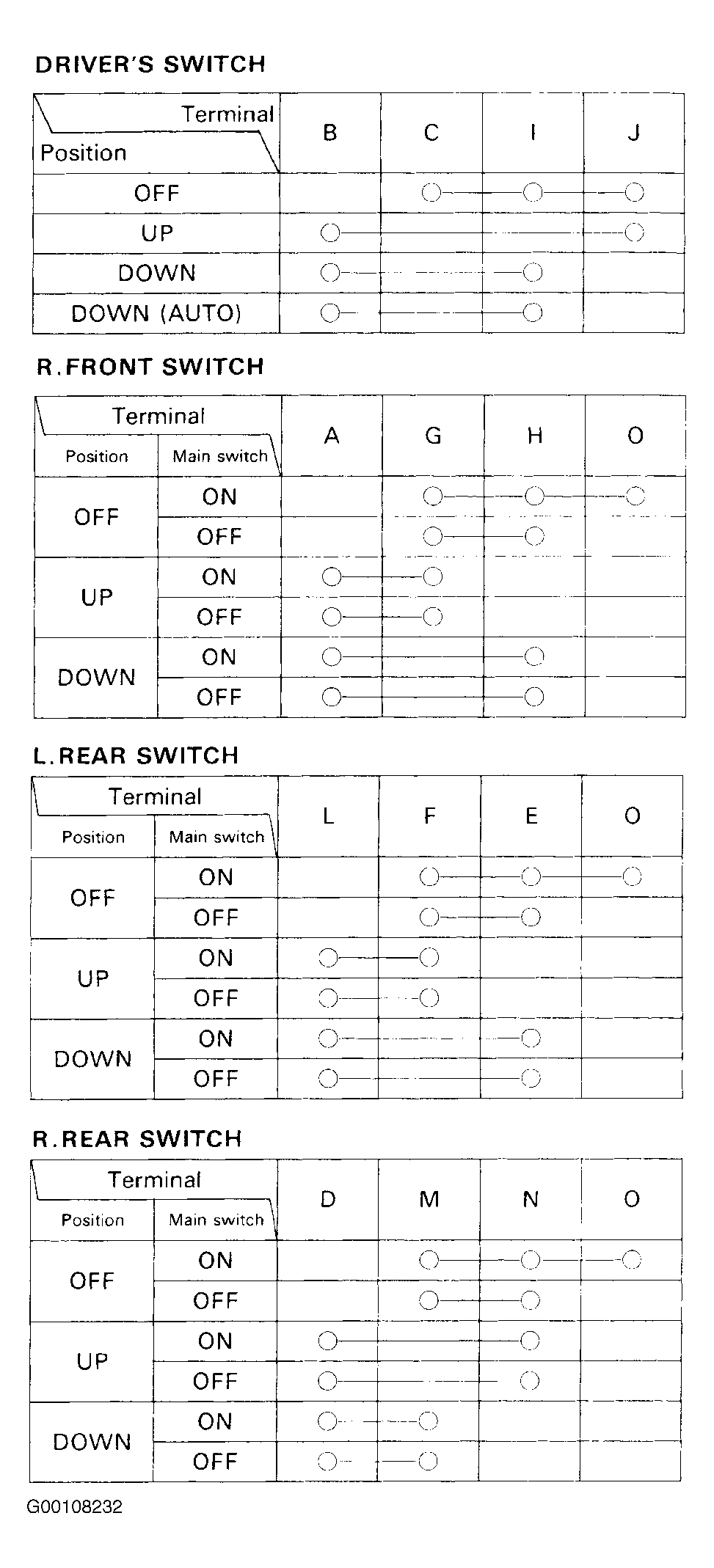

Fig 2: Driver's Switch Continuity Tables
G00108232Courtesy of AMERICAN HONDA MOTOR CO., INC.
