Relay Test

  1. Remove the relay from the under-hood relay box.
  2. There should be continuity between the A and B terminals when the battery is connected to the C and D terminals. There should be no continuity when the battery is disconnected. See Fig 1 .

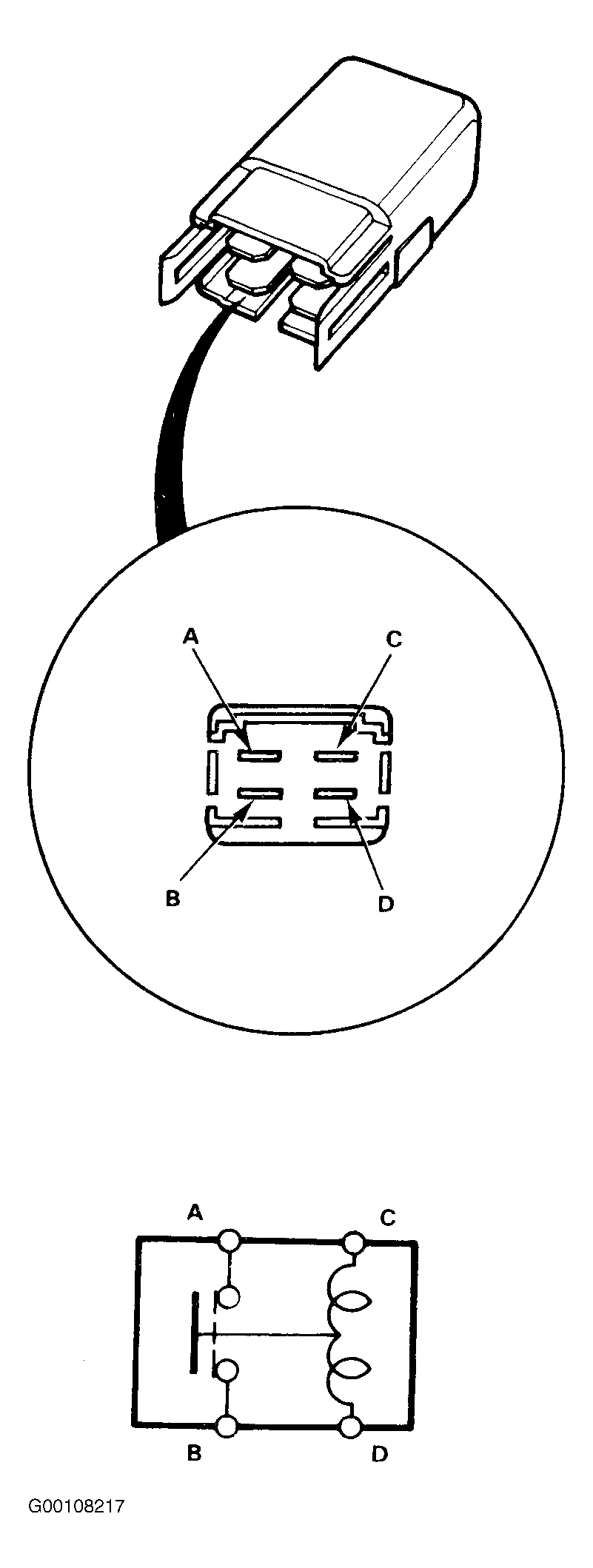

Fig 1: Identifying Relay Test
G00108217Courtesy of AMERICAN HONDA MOTOR CO., INC.
