Passenger Window Motor Test

  1. Remove the door trim panel. See DOOR TRIM PANEL  .
  2. Disconnect the 2-P connector from the motor.
  3. Test motor operation by applying battery voltage to the No. 1 and No.2 terminals. See Fig 1 .
  4. Test the motor in each direction, by switching the leads from the battery.
  5. If the motor does not run, replace it.

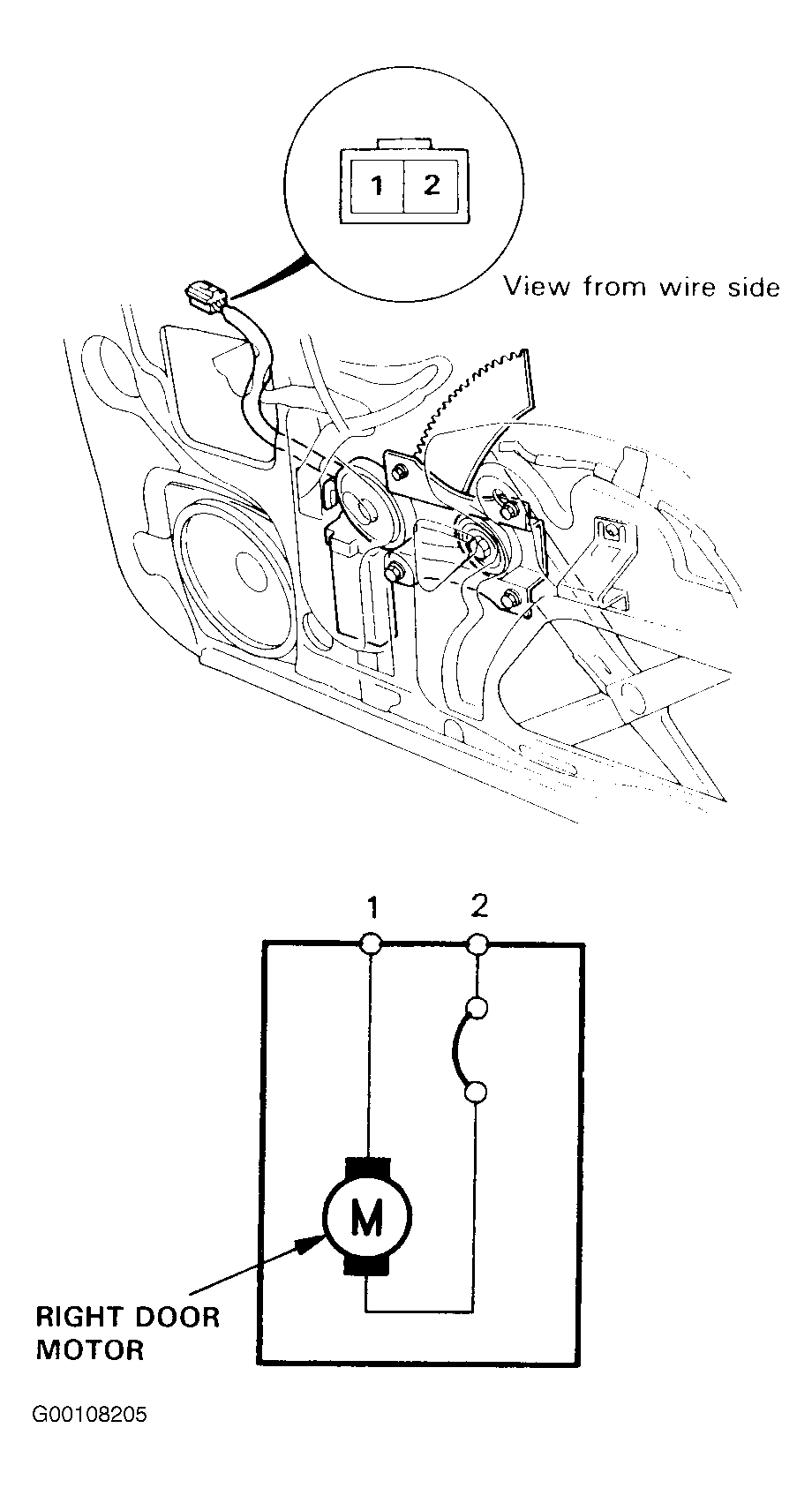

Fig 1: Identifying Passenger Window Motor Terminals
G00108205Courtesy of AMERICAN HONDA MOTOR CO., INC.
