Driver Window Switch Test: Coupe

  1. Remove the door trim panel. See DOOR TRIM PANEL  under REMOVAL & INSTALLATION.
  2. Remove the driver's switch from the door trim panel.
  3. Check for continuity between the terminals in each switch position. See Fig 1 and Fig 2 .

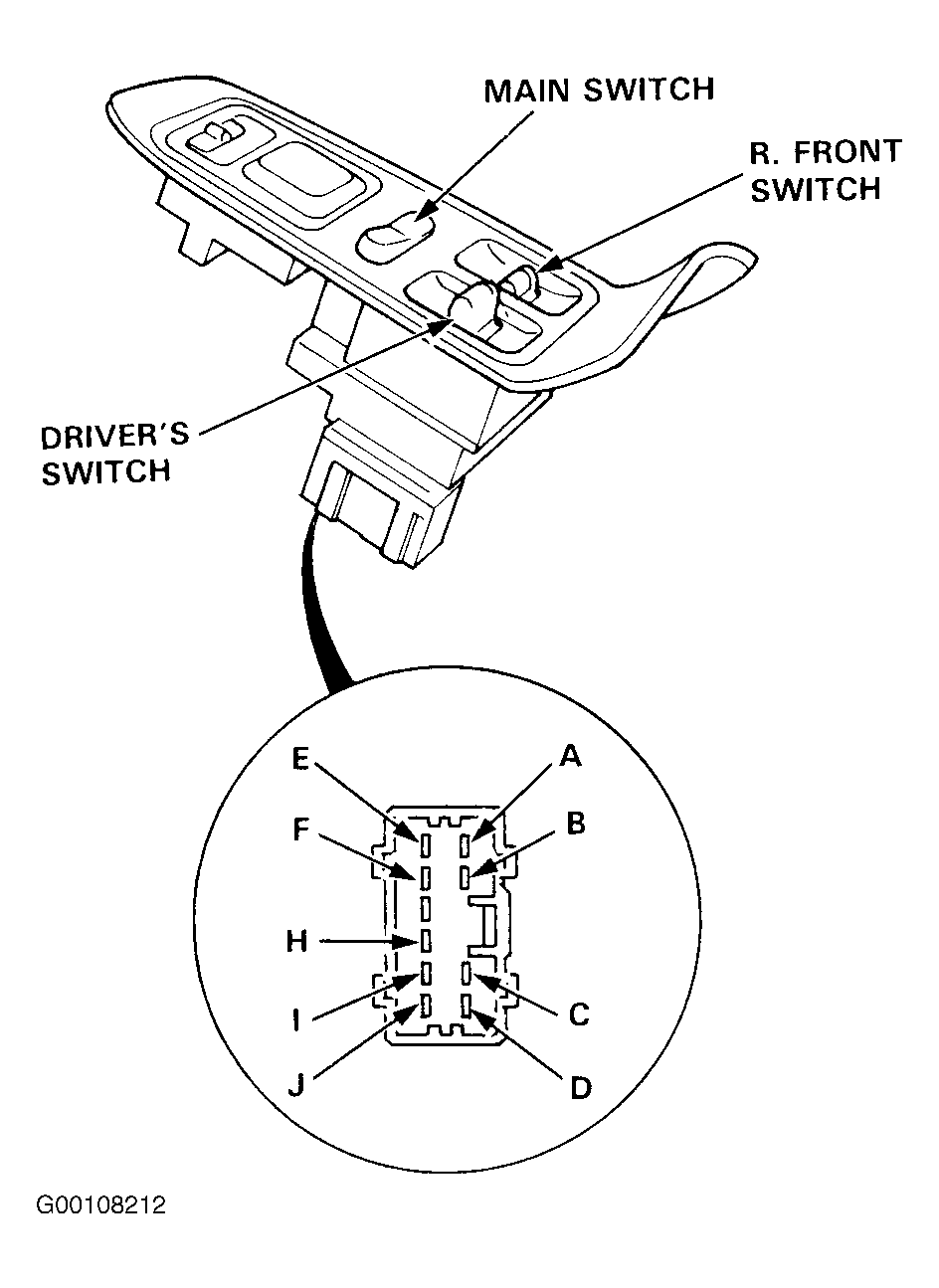

Fig 1: Identifying Driver's Power Window Switch Terminals (Coupe)
G00108212Courtesy of AMERICAN HONDA MOTOR CO., INC.

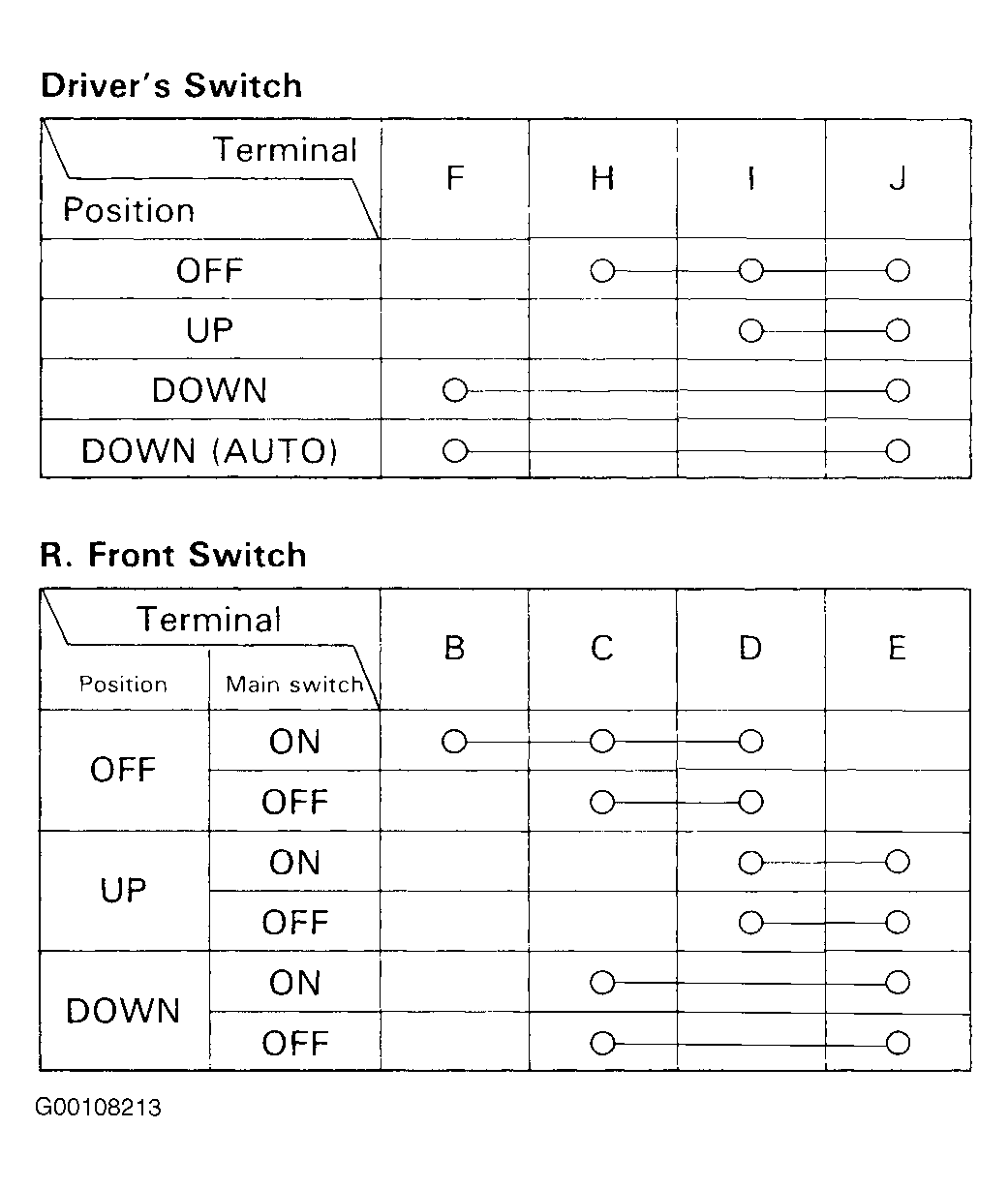

Fig 2: Driver's Power Window Switch Continuity Chart (Coupe)
G00108213Courtesy of AMERICAN HONDA MOTOR CO., INC.
