Ignition Key Light/Switch Replacement

1. Remove the steering column lower cover, then disconnect the 4-P connector from the main wire harness. See Fig 1 .
2. Remove the bulb/socket from the key light case by turning the socket 45°.
3. Remove the key switch from the key cylinder by removing the attaching screw.
4. To Install, reverse removal procedures.

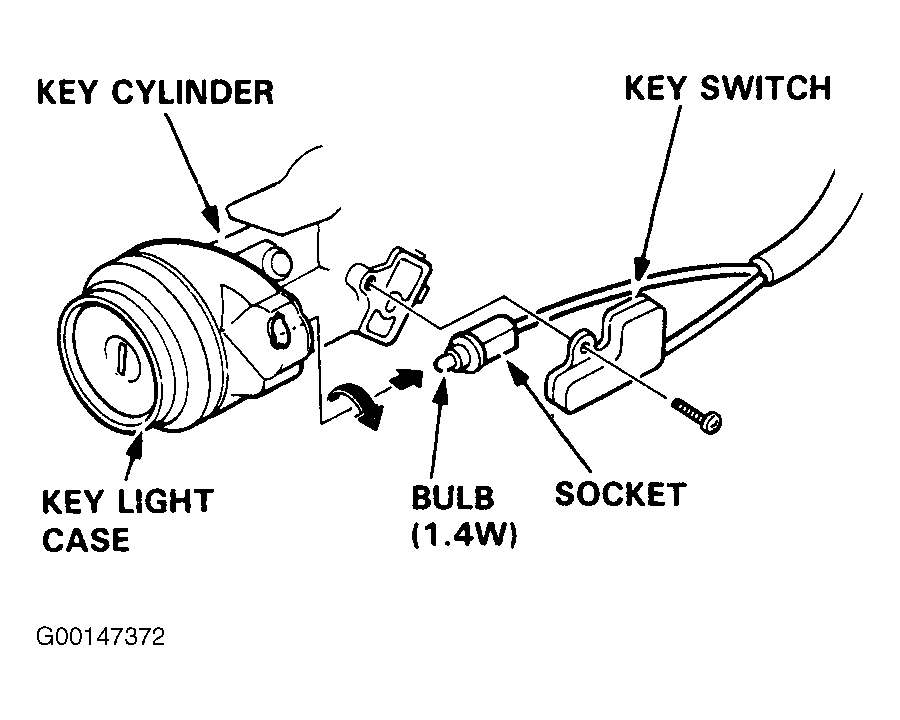

Fig 1: Removing & Installing Ignition Key Light/Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.
