Ignition Key Switch

  1. Remove the steering column lower cover, then disconnect the 13-P connector from the main wire harness. See Fig 1 .
  2. There should be continuity between the BLU/WHT and BLK terminals when the ignition switch is turned from "II" to "O" position. There should be no continuity when the ignition key is removed.

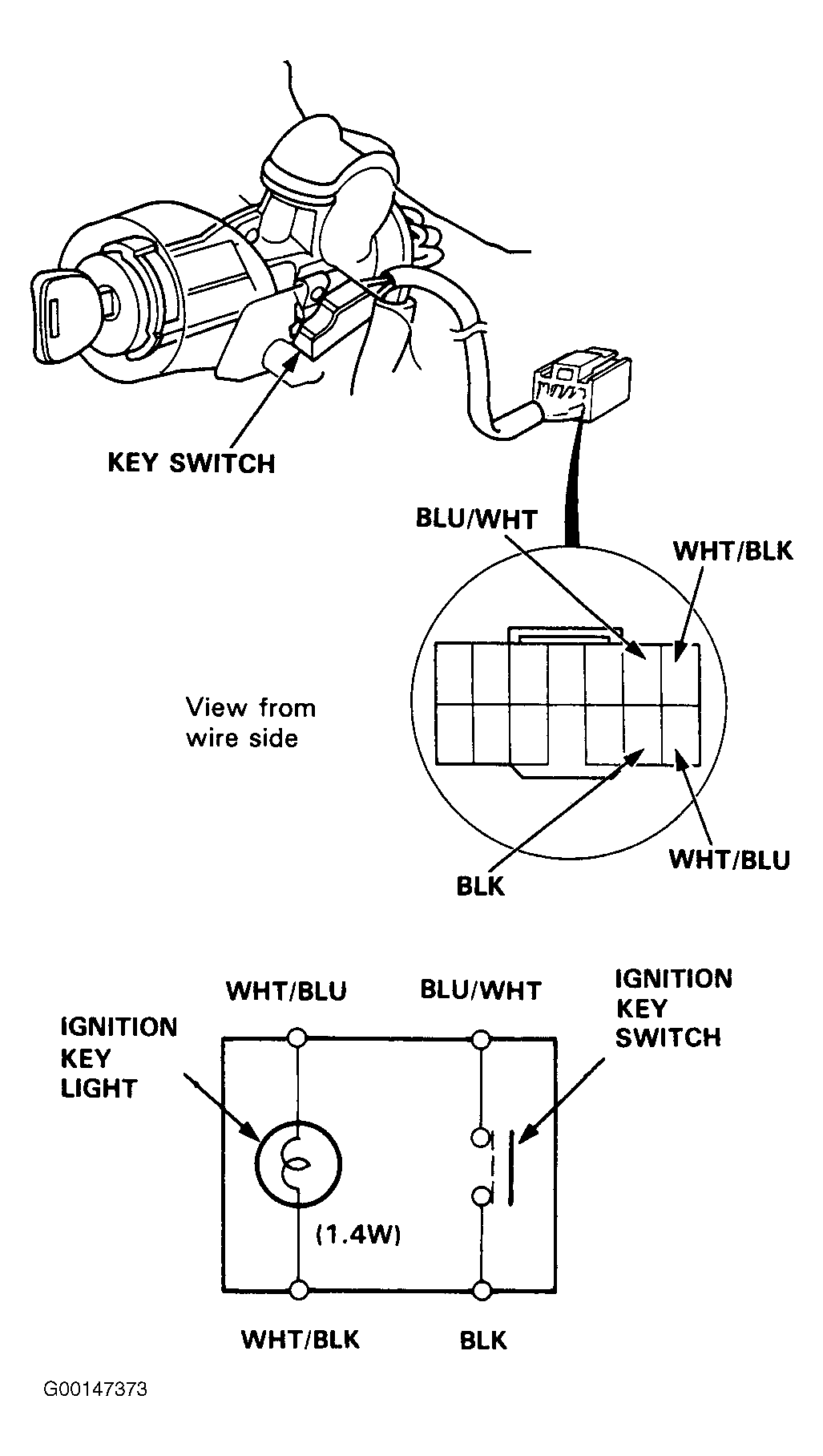

Fig 1: Locating & Identifying 13-P Connector
G00147373Courtesy of AMERICAN HONDA MOTOR CO., INC.
