Wiper System
Wiper System
For input test see
Fig 1
.

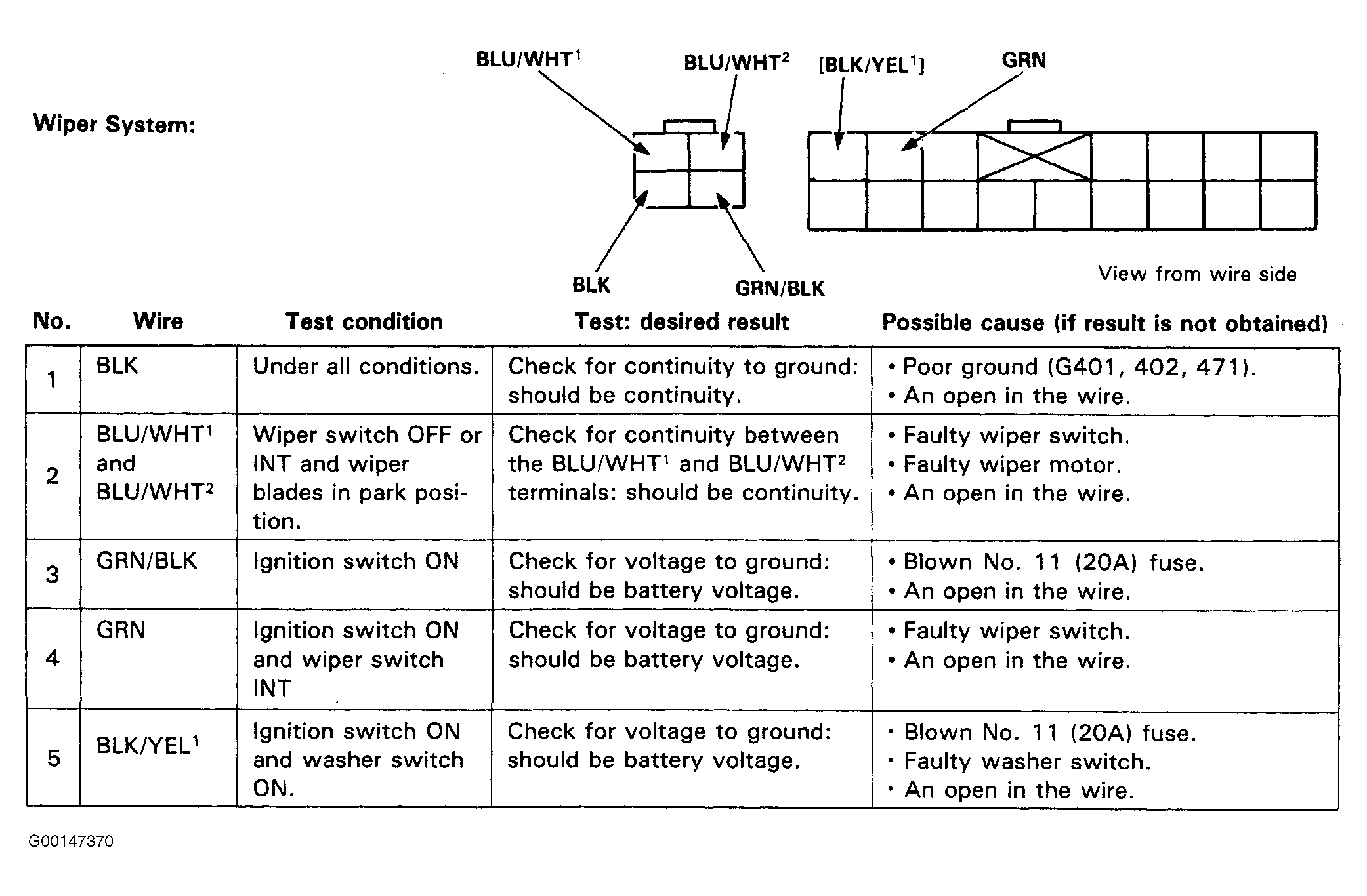

Fig 1: Wiper System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
