Side Marker Light Flasher System
Side Marker Light Flasher System
For input test see
Fig 1
.

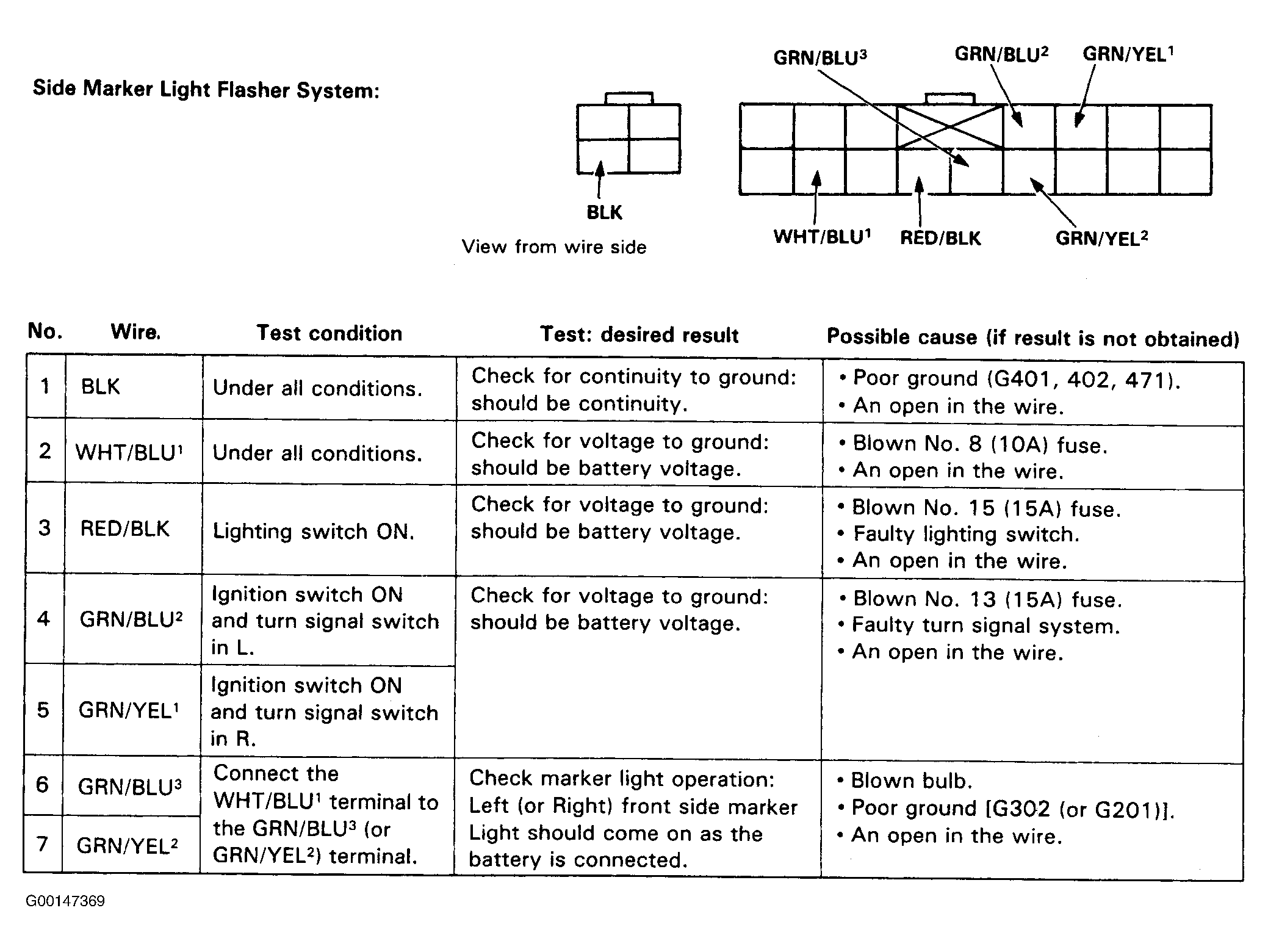

Fig 1: Side Marker Light Flasher System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
