Input Tests: Notes

Remove the front console, then disconnect the 4-P, 12-P and 16-P connector from the integrated control unit. See Fig 1 .

Make the following input tests at the harness pins. If all tests prove OK, yet the system still fails to work, replace the control unit.

NOTE: Several different wires have the same color. They have been given a number suffix to distinguish them (for example GRN¹ and GRN² are not the same).

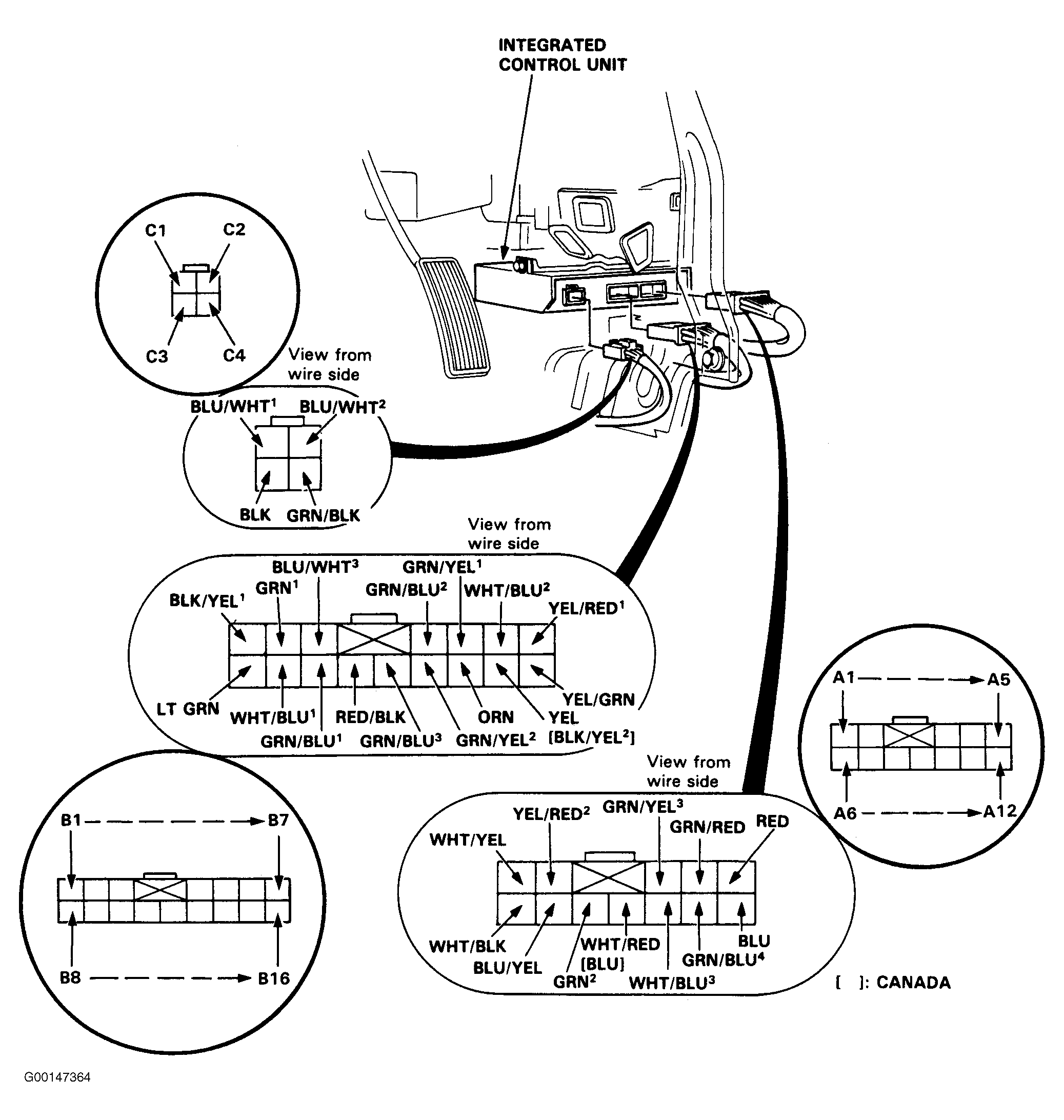

Fig 1: Locating & Identifying Integrated Control Unit & Connectors

Courtesy of AMERICAN HONDA MOTOR CO., INC.
