Light-On Warning System
Light-On Warning System
For input test see
Fig 1
.

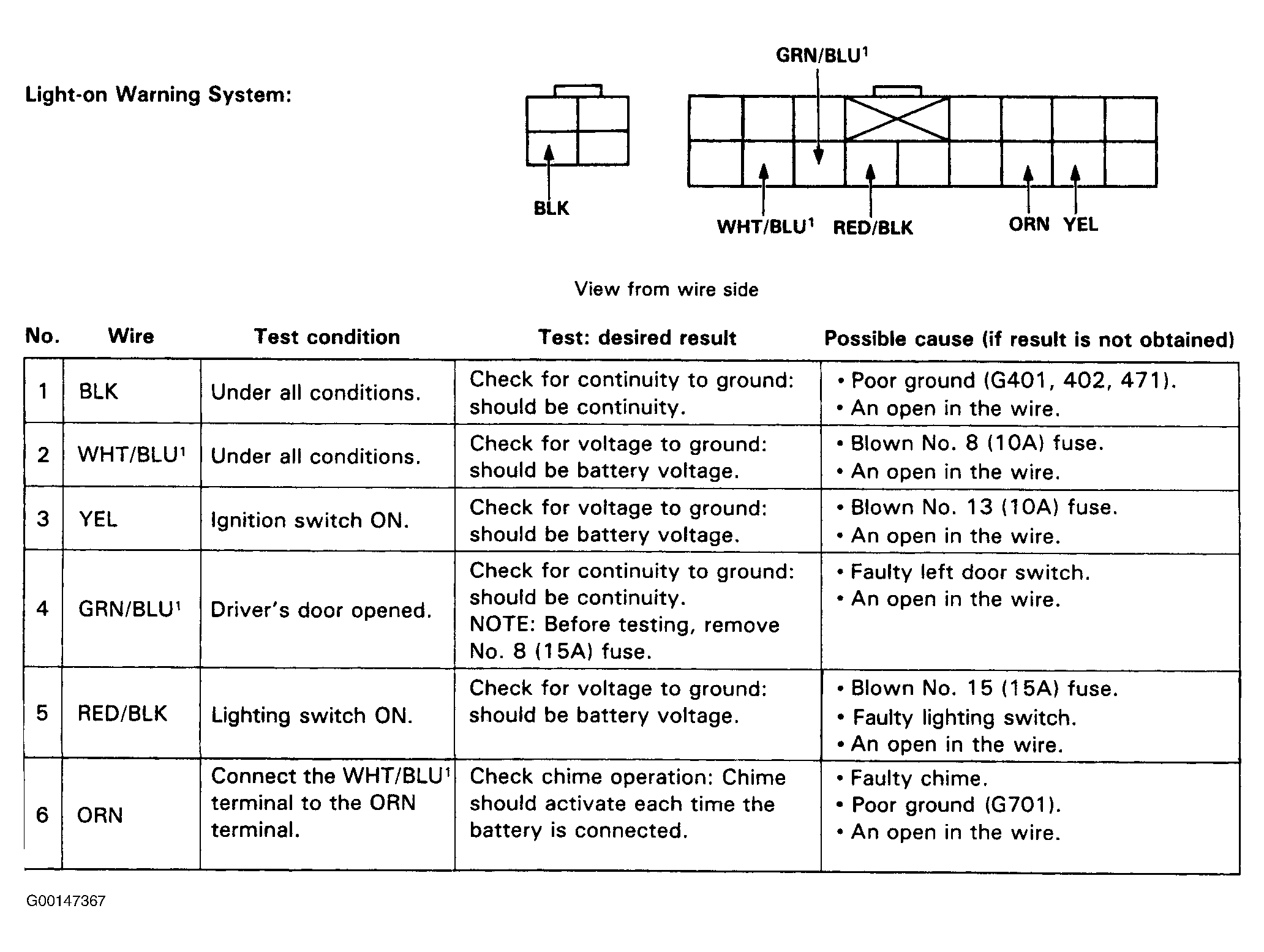

Fig 1: Light-On Warning System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
