Entry Light Timer System

For input test see Fig 1 .

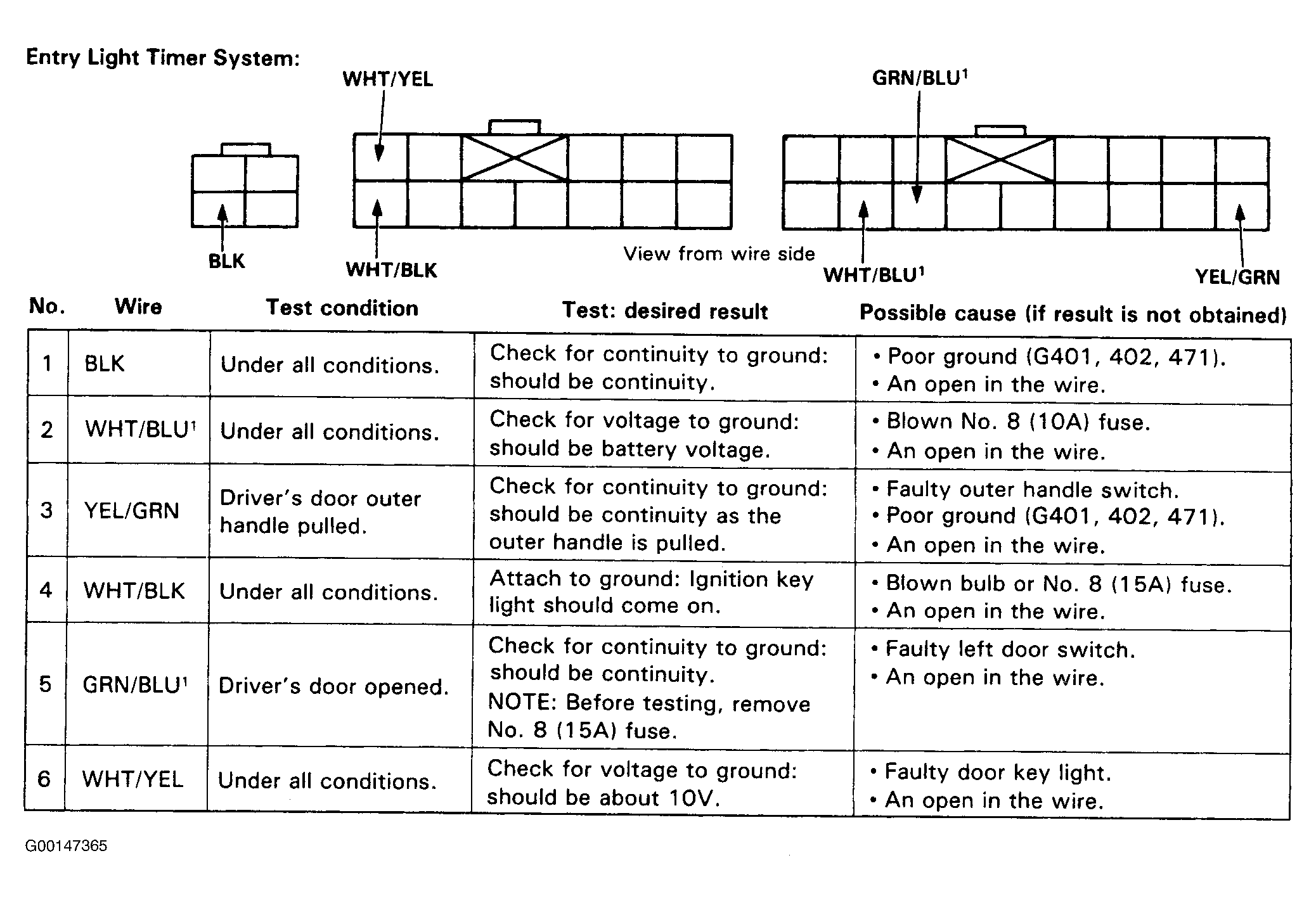

Fig 1: Entry Light Timer System Input Test

G00147365

Courtesy of AMERICAN HONDA MOTOR CO., INC.
