Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/C Compressor Control Unit | Behind right side of dash, right of glove box. | |
| Automatic Transmission Control Unit | ||
| 2.0L | Behind center of dash. | |
| 2.1L | Under passenger side footwell, by ECU control unit. | |

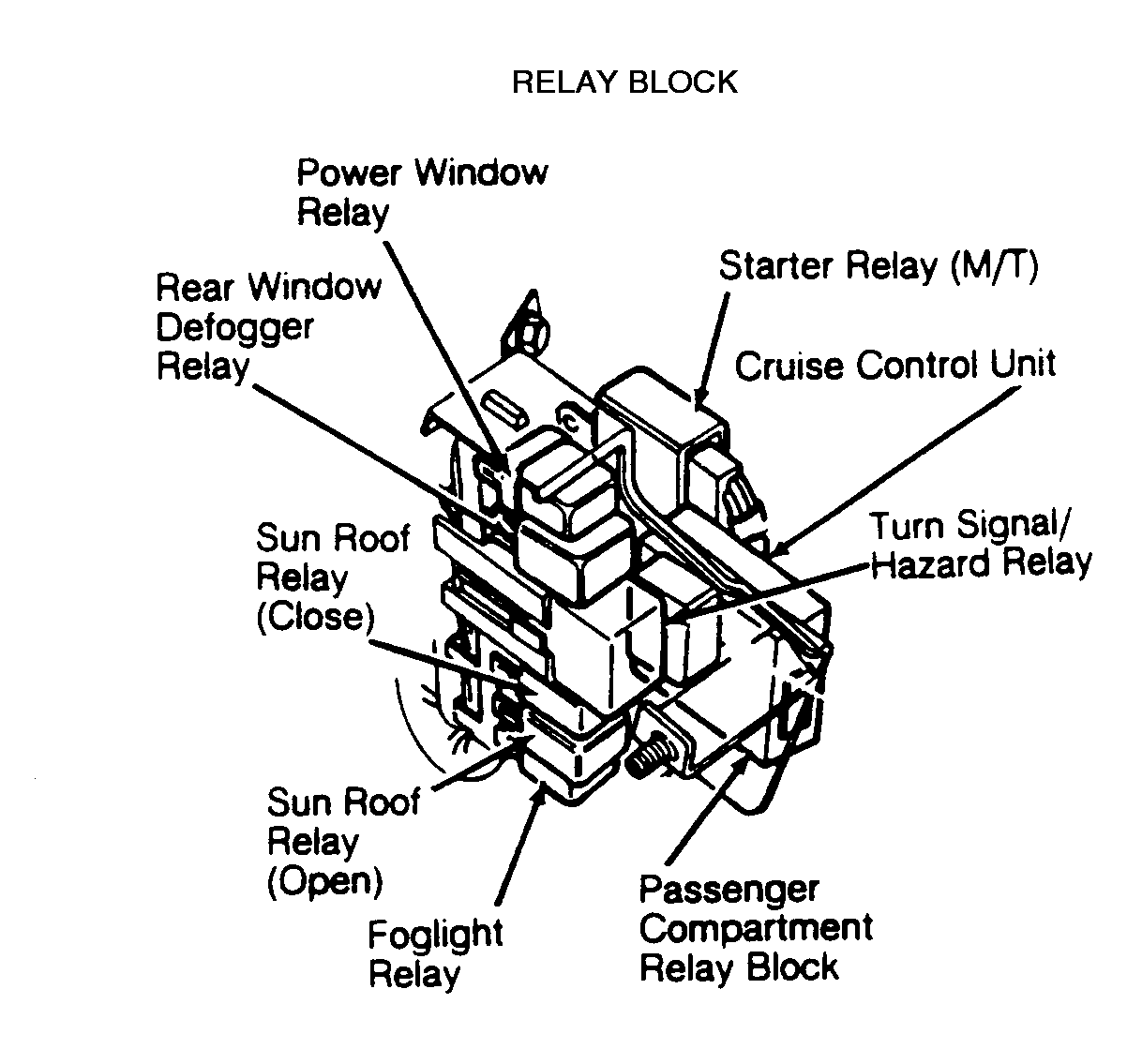

| Cruise Control Unit | Behind left side of dash. See Figure . | |

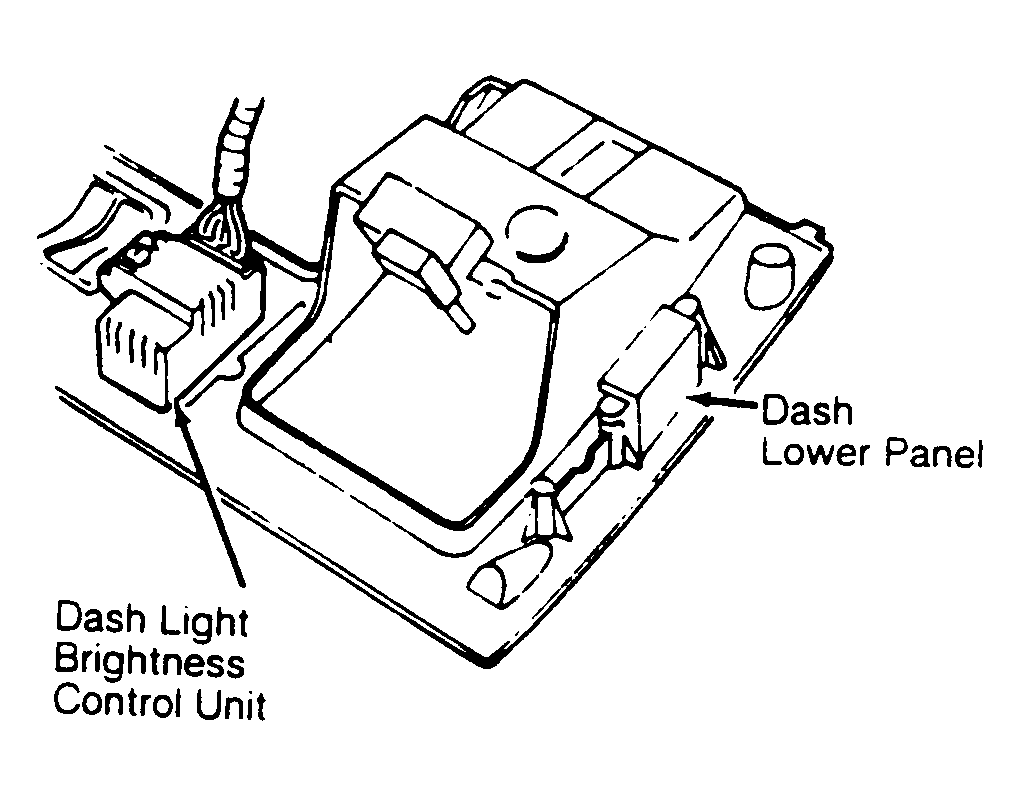

| Dash Light Brightness Control Unit | Behind dash lower left panel. See Figure . | |
| Electronic Control Unit (ECU) | On passenger side footwell, under carpet. | |
| Ignitor Unit (Carb) | On underside of distributor cover. | |
| Ignitor Unit (EFI) | ||
| View of Ignitor Unit | Near under-hood relay block. See Figure . | |

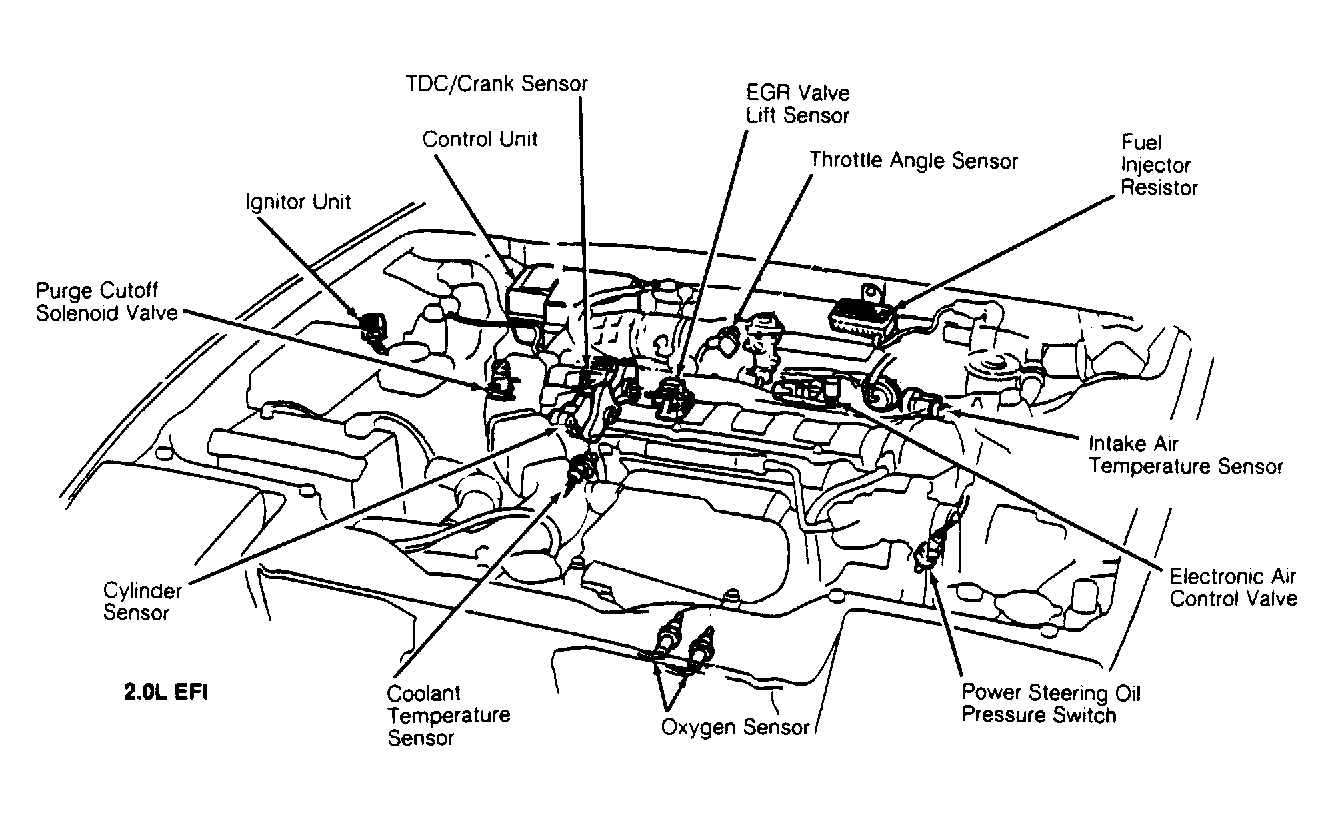

| View of Ignitor Unit (2.0L EFI) | Near under-hood relay block. See Figure . | |

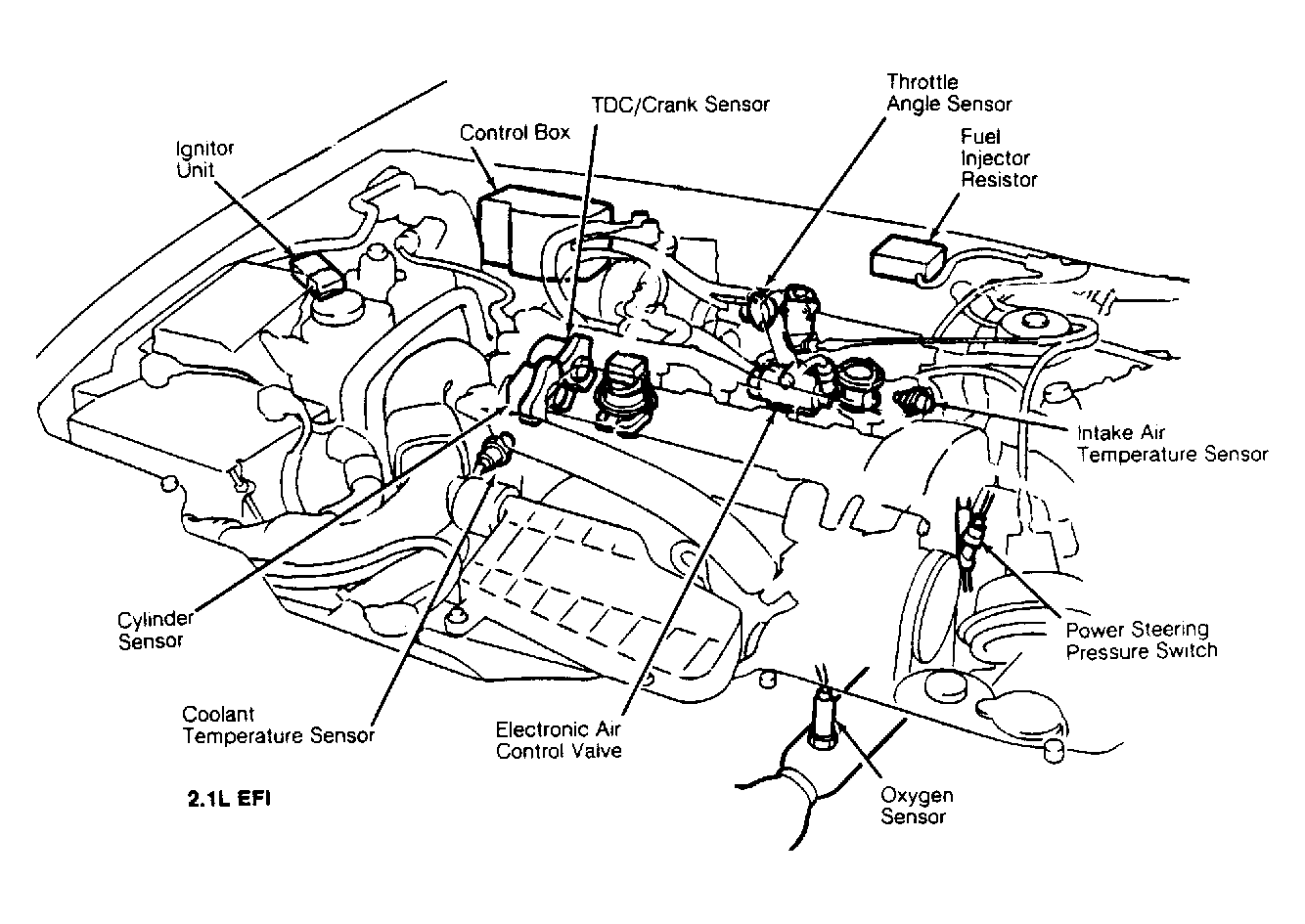

| View of Ignitor Unit (2.1L EFI) | Near under-hood relay block. See Figure . | |

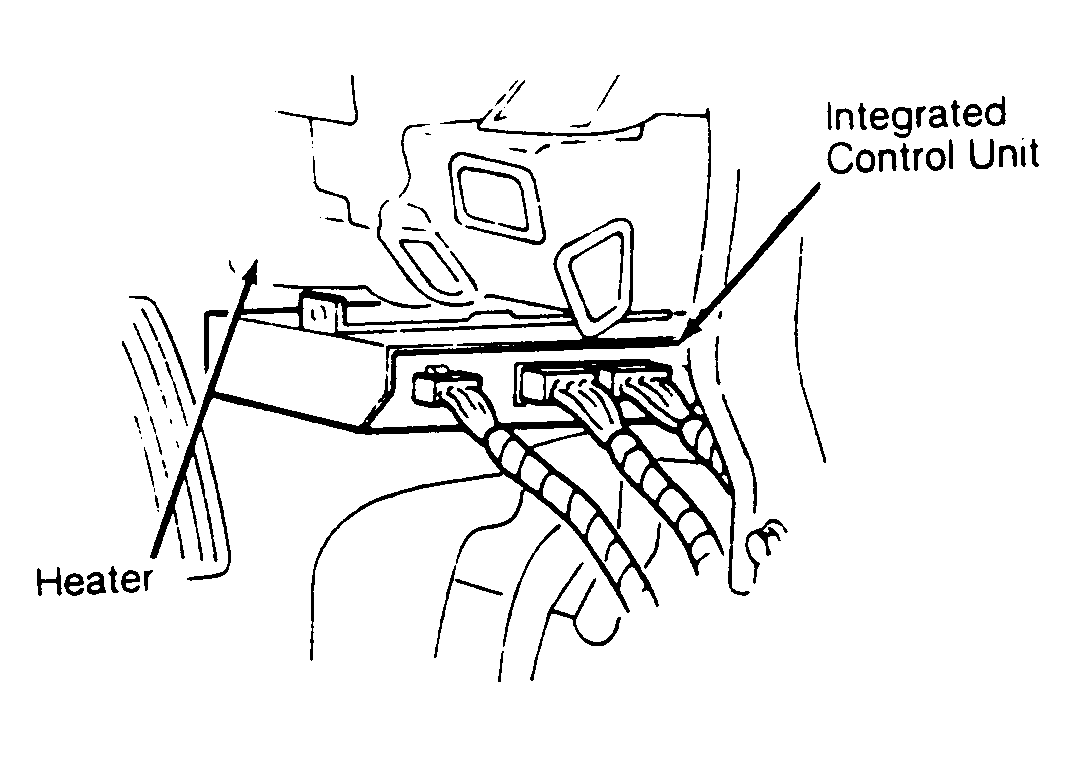

| Integrated Control Unit | Behind center of dash, near heater unit. See Figure . | |
| Retractable Headlight Control Unit | Behind right side of dash, right of glove box. | |
| Power Door Lock Control Unit | In passenger door, above speaker. | |
