Driver's Window Switch

  1. Remove the door trim panel. See DOOR TRIM PANEL  under REMOVAL & INSTALLATION.
  2. Check for continuity between driver's window switch terminals with switch in each position as shown in illustration. See Fig 1 .

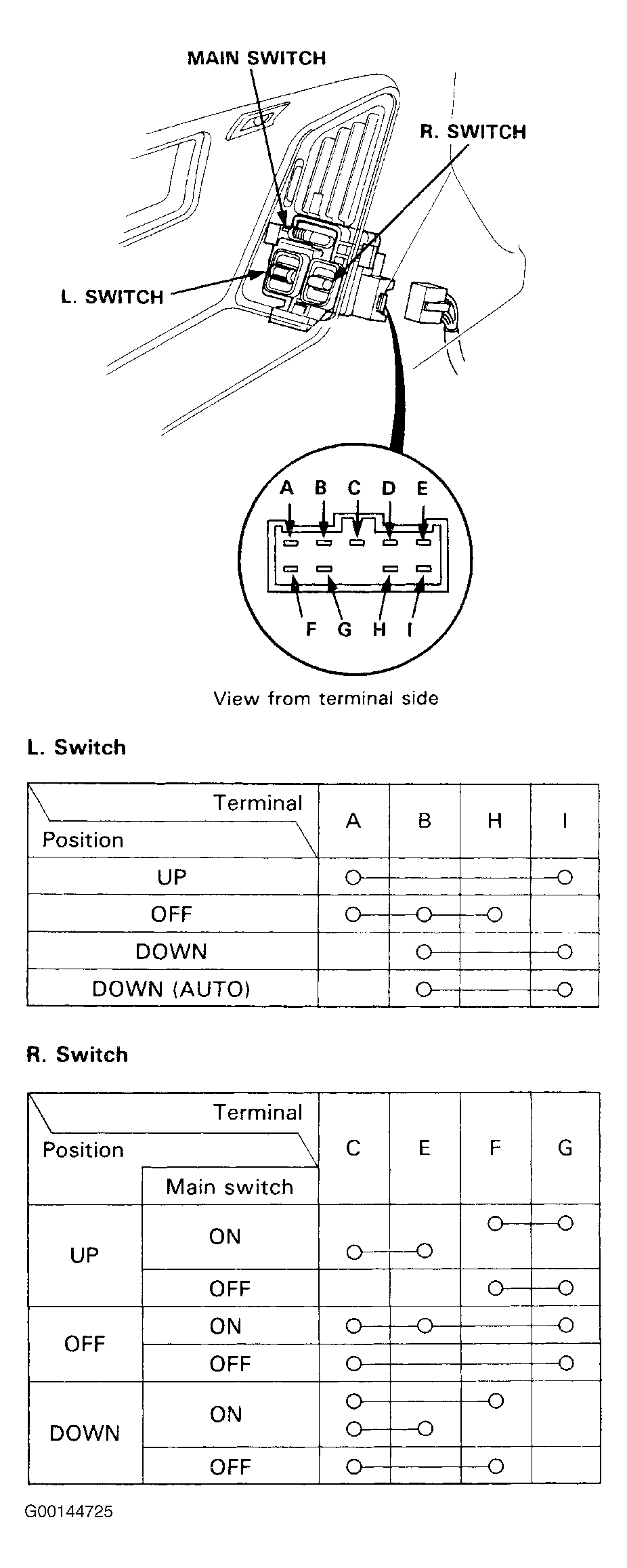

Fig 1: Driver's Window Switch Test
G00144725Courtesy of AMERICAN HONDA MOTOR CO., INC.
