Component Locations

COMPONENT LOCATIONS

Component Location
Driver's Power Window Motor (1) In Front Half Of Driver's Door
Driver's Power Window Switch On Driver's Door Trim Panel
Fuse Box Behind Left Side Of Dash
G401 (2) Behind Top Center Of Dash
G402 (2) Behind Top Center Of Dash
G471 (3) Behind Right Side Of Rear Seat
Passenger's Power Window Motor (1) In Front Half Of Passenger's Door
Passenger's Power Window Switch On Passenger's Door Trim Panel
Power Window Relay (1) Under Dash, Left Side
(1) See Fig 1
(2) See Fig 2
(3) See Fig 3
Fig 1: Locating Power Window Components
G00144720Courtesy of AMERICAN HONDA MOTOR CO., INC.

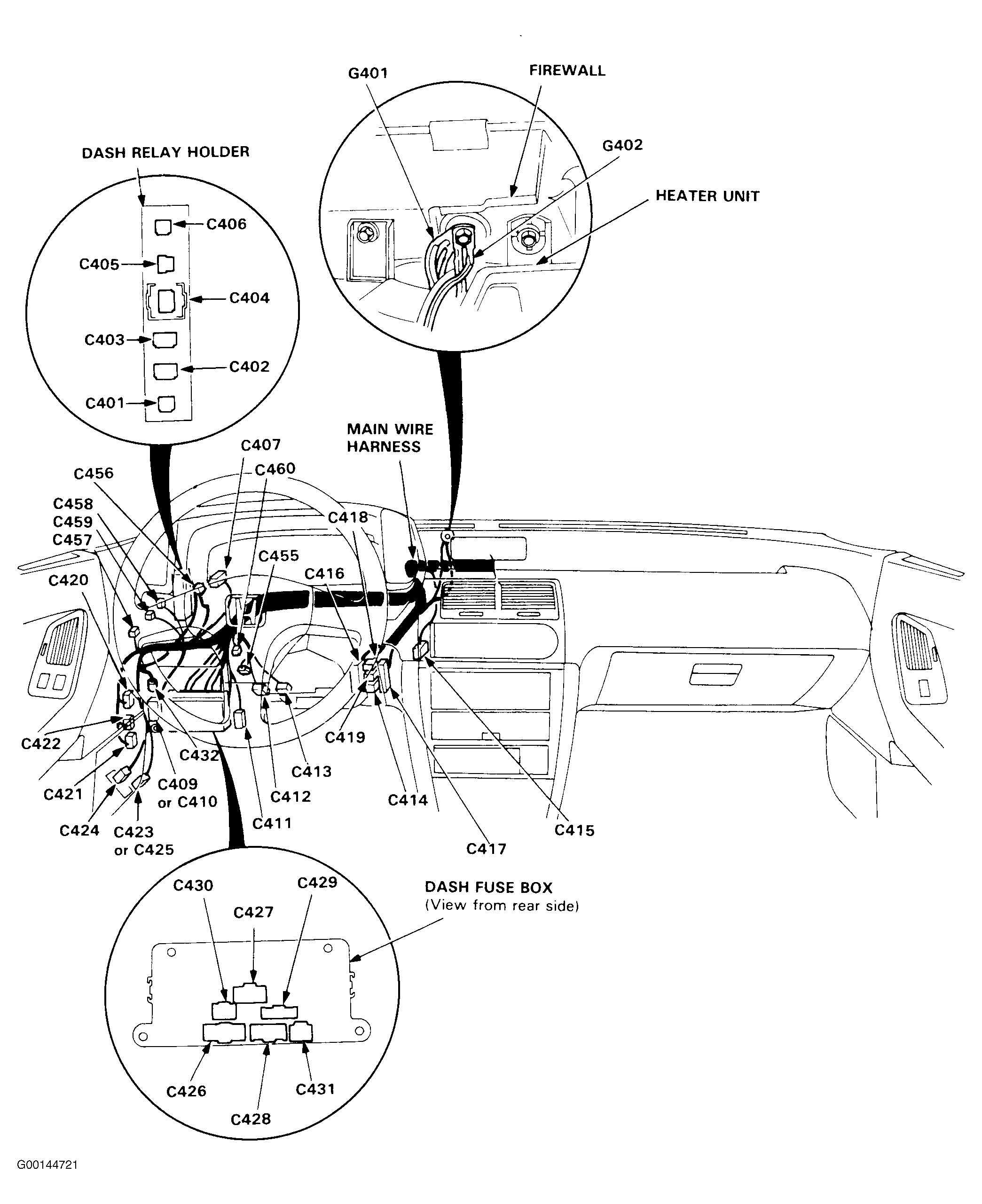

Fig 2: Locating Grounds G401 & G402
G00144721Courtesy of AMERICAN HONDA MOTOR CO., INC.

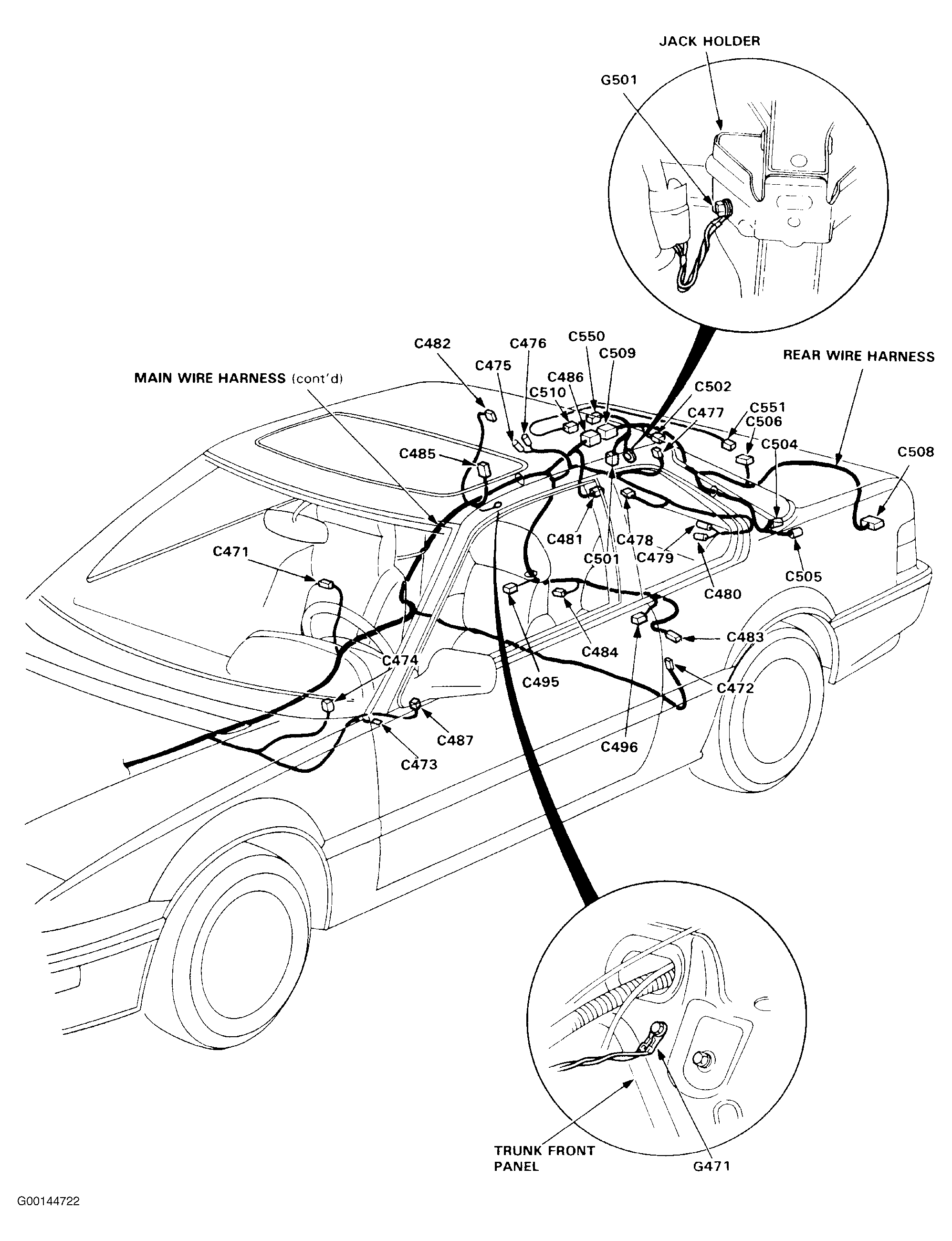

Fig 3: Locating Ground G471
G00144722Courtesy of AMERICAN HONDA MOTOR CO., INC.
