Trouble Shooting

To aid in repair of the power window system, refer to illustration. See Fig 1 . Numbers in illustration are the sequence that the test should be perform.

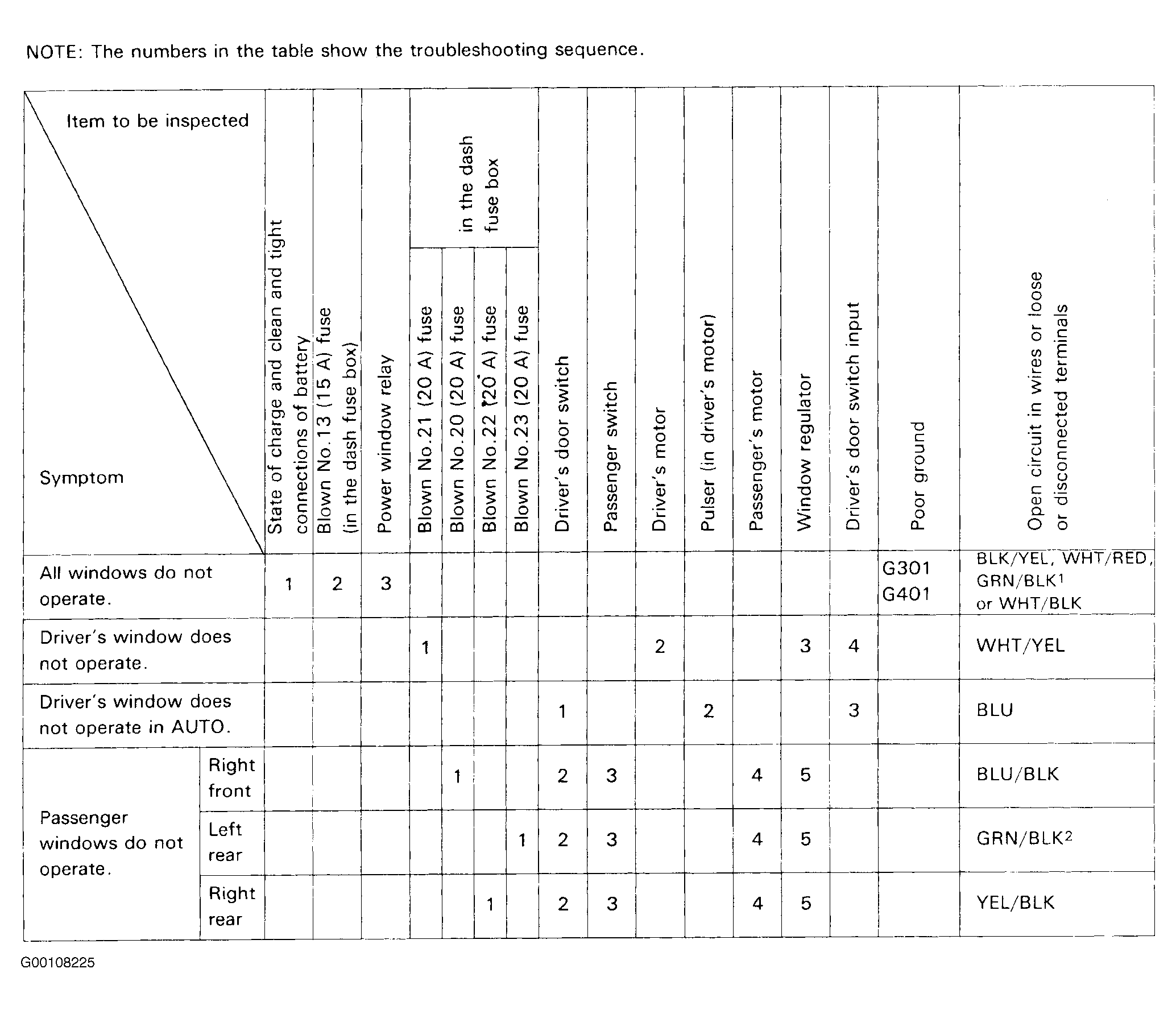

Fig 1: Power Window Trouble Shooting Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
