Control Unit Testing

Turn ignition off. Disconnect control unit connector. Using a DVOM, check wire(s) specified under test condition. See Fig 1 . If all test results are okay, replace control unit.

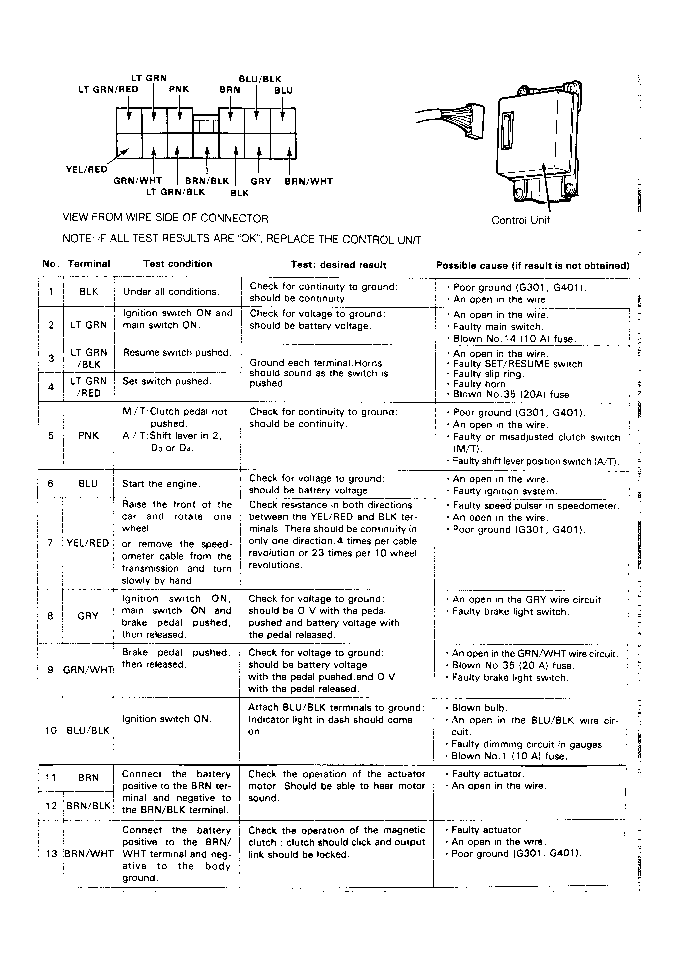

Fig 1: Testing Control Unit Input

Courtesy of AMERICAN HONDA MOTOR CO., INC.
