Hazard Warning Switch: Notes

Carefully pry out hazard warning switch from dash. Disconnect hazard warning switch 8-pin connector. With hazard switch in specified position, check continuity between switch terminals. See Fig 1 . If continuity is not as specified, replace hazard warning switch.

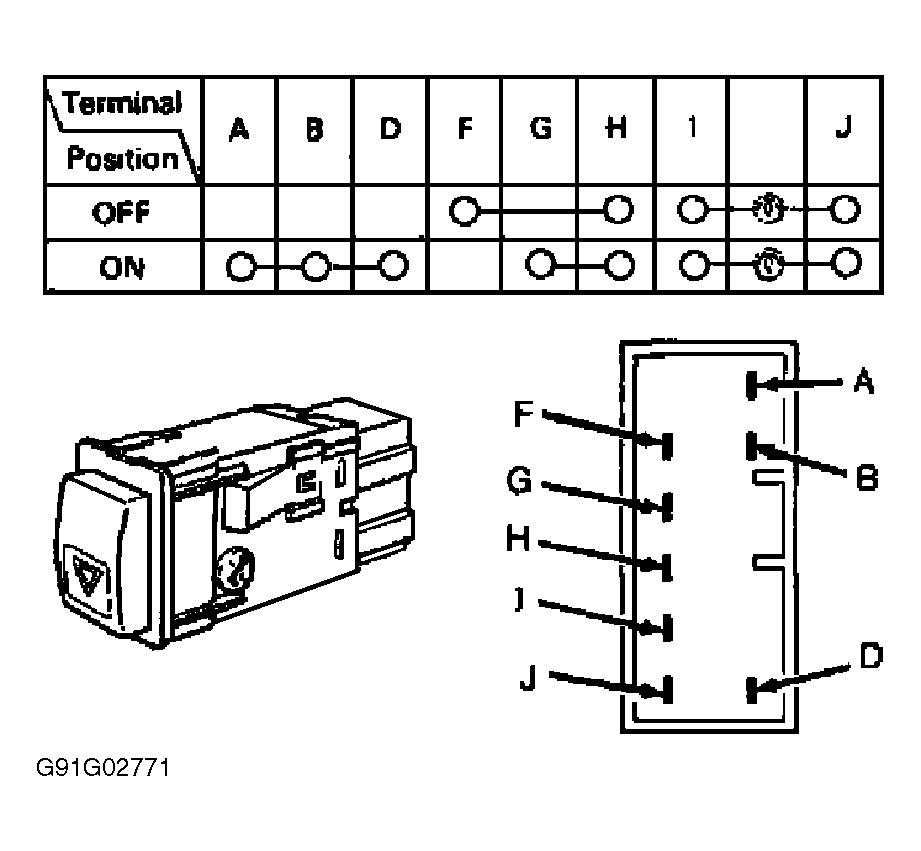

Fig 1: Testing Hazard Warning Switch
G91G02771Courtesy of AMERICAN HONDA MOTOR CO., INC.
