Wiring Diagrams

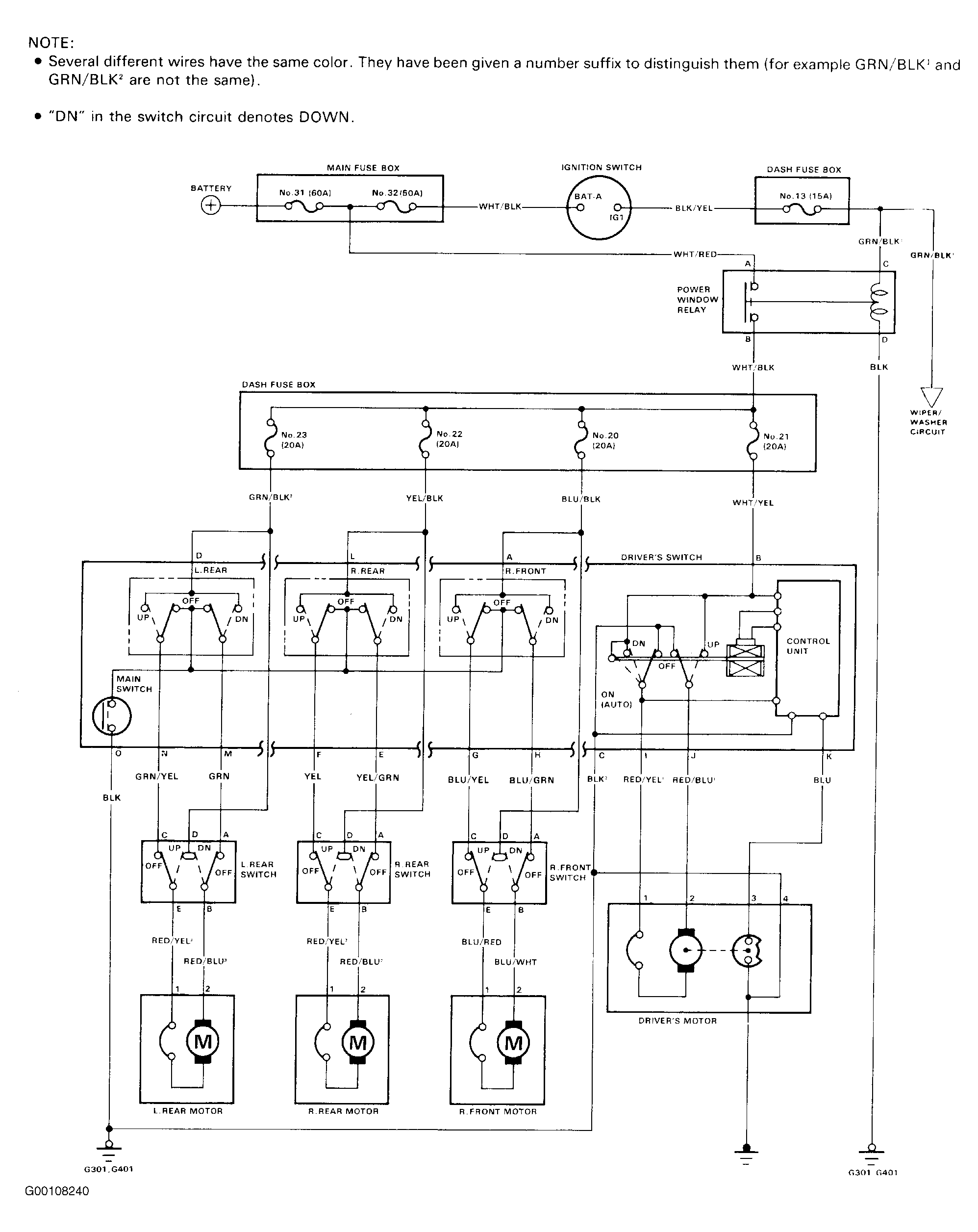

Fig 1: Power Window Wiring Diagram

G00108240

Courtesy of AMERICAN HONDA MOTOR CO., INC.
