Passenger's Motor Test

  1. Remove door trim panel. See DOOR TRIM PANEL  under REMOVAL & INSTALLATION.
  2. Disconnect the 2-P connector from the motor.
  3. Test motor operation by applying battery voltage to the No. 1 and No. 2 terminals. See Fig 1 .
  4. Test the motor in each direction, by switching the leads from the battery
  5. If the motor does not run, replace it.

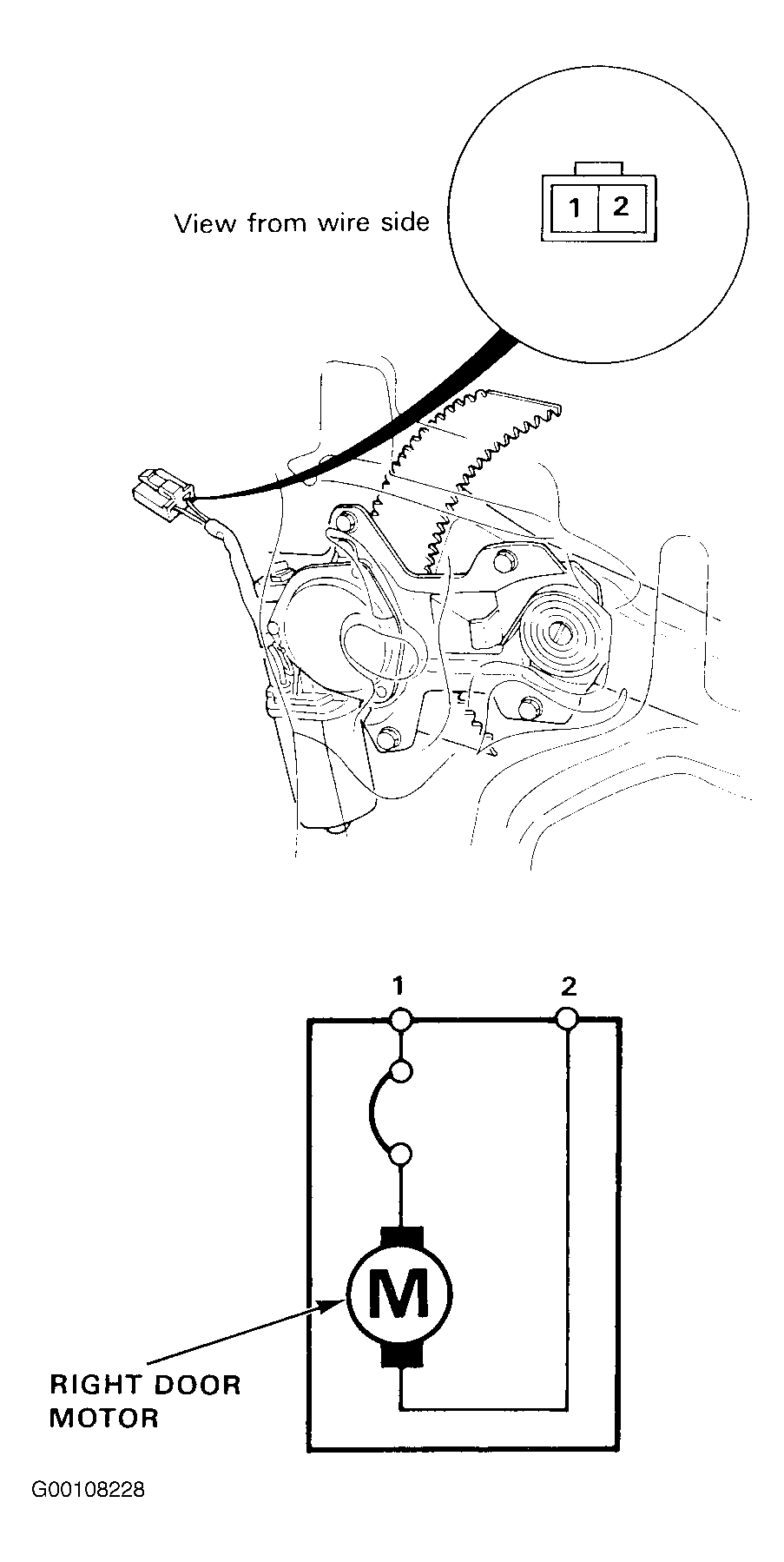

Fig 1: Identifying Passenger's Window Motor Terminals
G00108228Courtesy of AMERICAN HONDA MOTOR CO., INC.
