Switch Test

  1. Remove the driver's door trim panel. See REMOVAL & INSTALLATION  .
  2. Disconnect the 3-P connector from the switch.
  3. Check for continuity between the terminals in each switch position according to the table. SeeFig 1 .

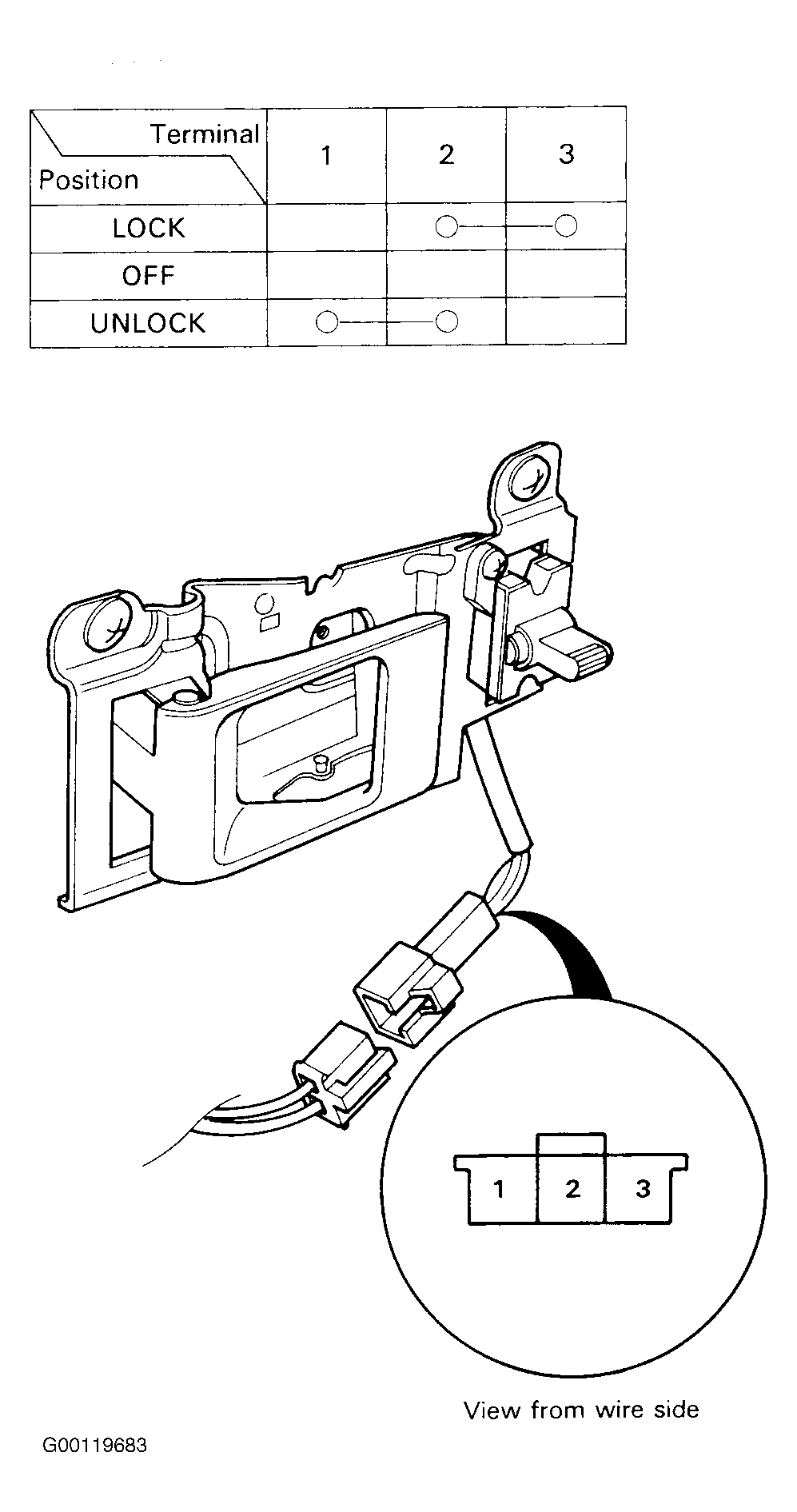

Fig 1: Testing Switch Continuity
G00119683Courtesy of AMERICAN HONDA MOTOR CO., INC.
