Component Locations

WARNING: Vehicles are equipped with air bag supplemental restraint system. Before attempting any repairs involving steering column, instrument panel or related components, see SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM in appropriate AIR BAG RESTRAINT SYSTEMS article.

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.

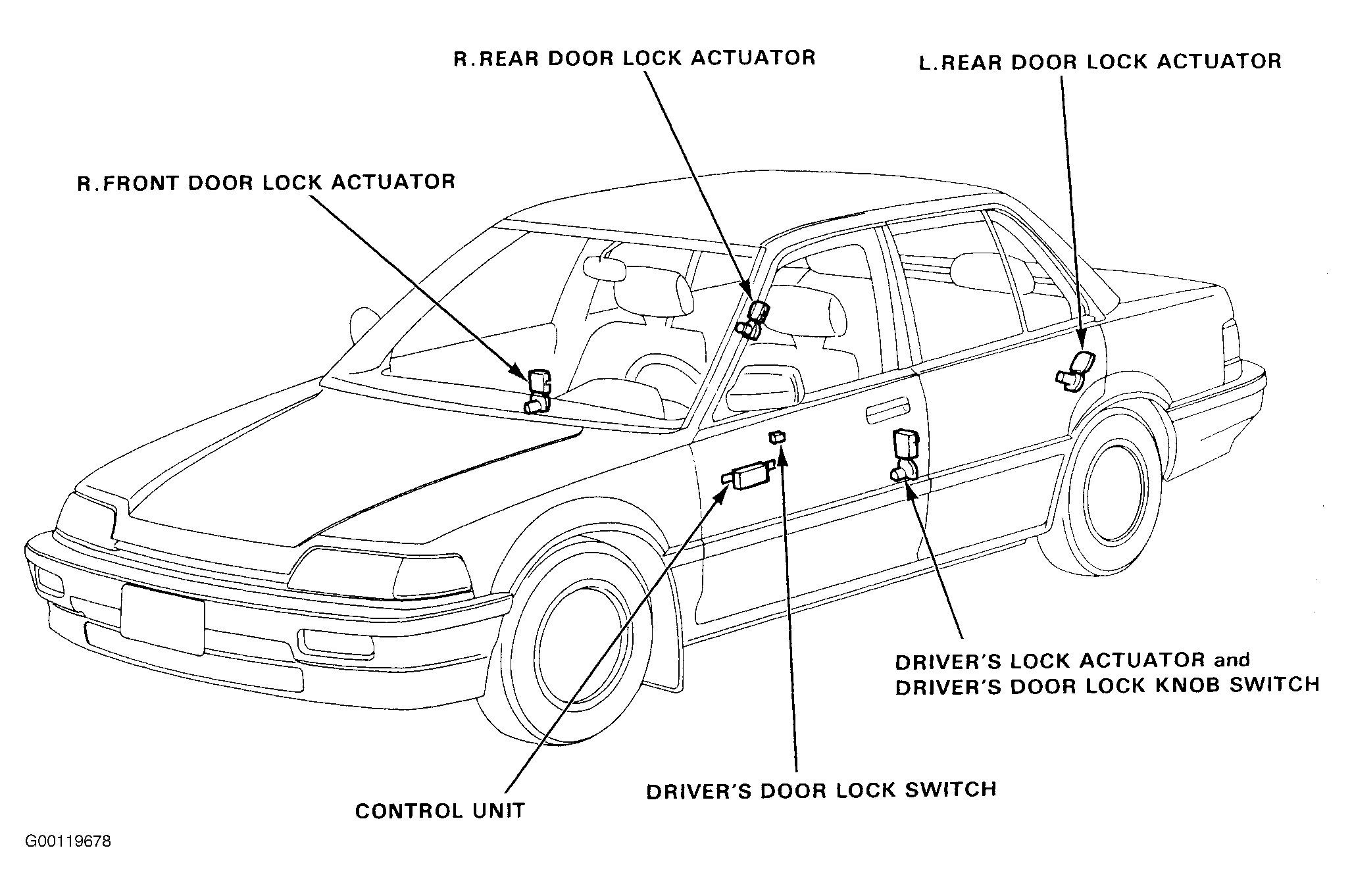

Fig 1: Locating Door Lock Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating Ground G401

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Locating Ground G301

Courtesy of AMERICAN HONDA MOTOR CO., INC.
