Ignition Key Switch

  1. Remove the dashboard lower panel, then disconnect the 5-P connector from the main wire harness. See Fig 1 .
  2. There should be continuity between the BLU/WHT and WHT/BLU terminals when the ignition switch is turned from "II" to "O" position. There should be no continuity when the ignition key is removed.

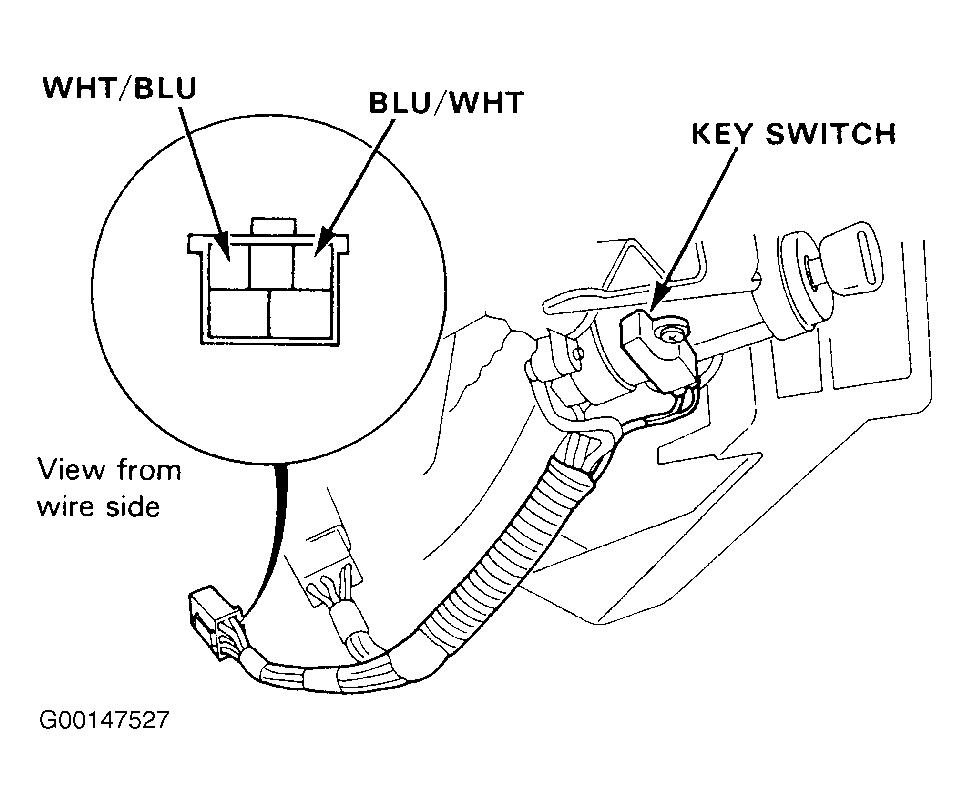

Fig 1: Identifying Ignition Key Switch 5-P Connector
G00147527Courtesy of AMERICAN HONDA MOTOR CO., INC.
