Steering Column Assembly

See STEERING COLUMN under REMOVAL & INSTALLATION. Also see Fig 1 .

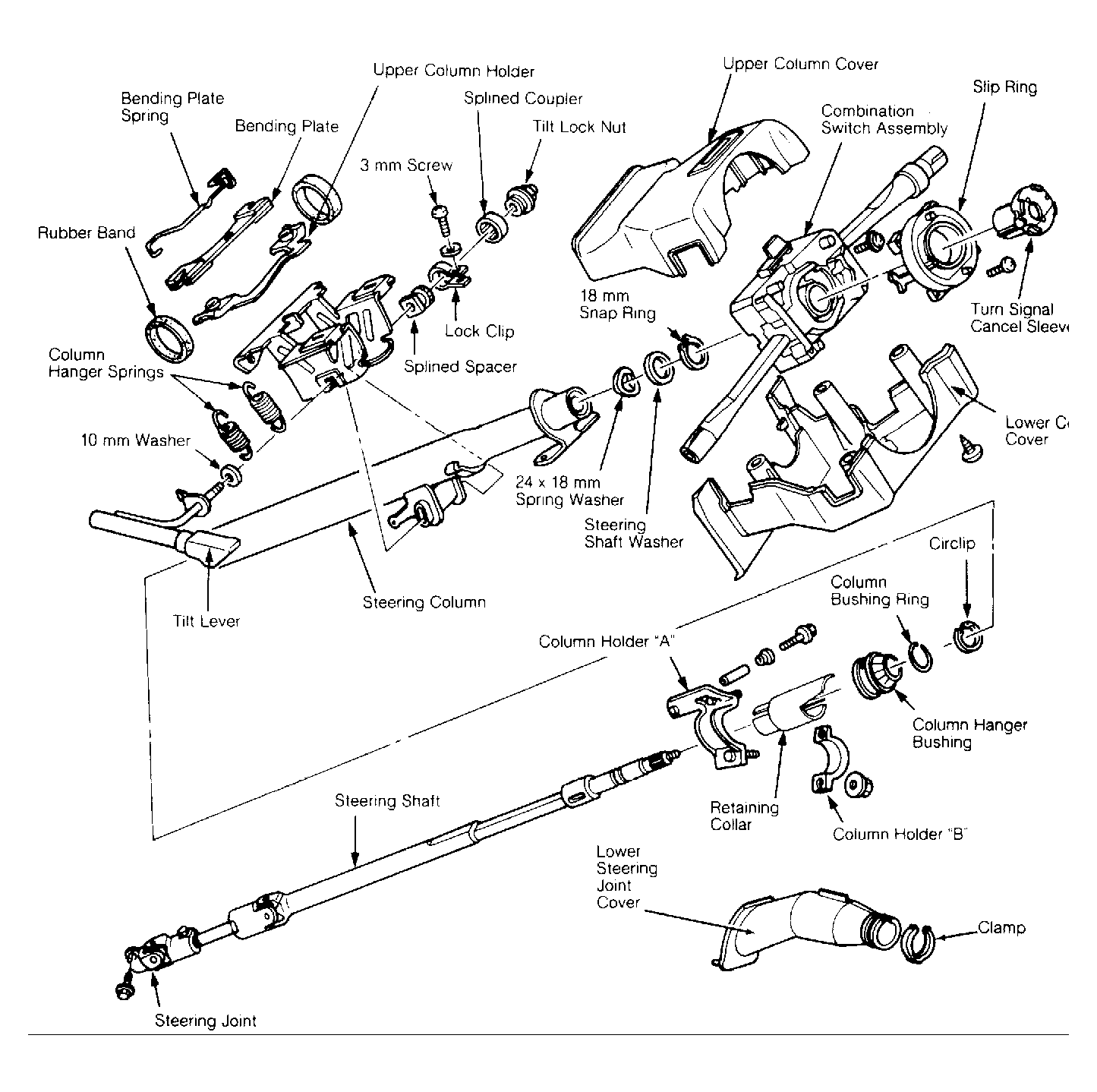

Fig 1: Exploded View of Steering Column Assembly

G90I05964

Courtesy of AMERICAN HONDA MOTOR CO.
