Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Compressor Control Unit | Behind right side of dash. |
| Auto. Trans. Control Unit | On passenger side footwell, by PGM-FI control unit. |
| Cruise Control Unit | Behind left side of dash. |

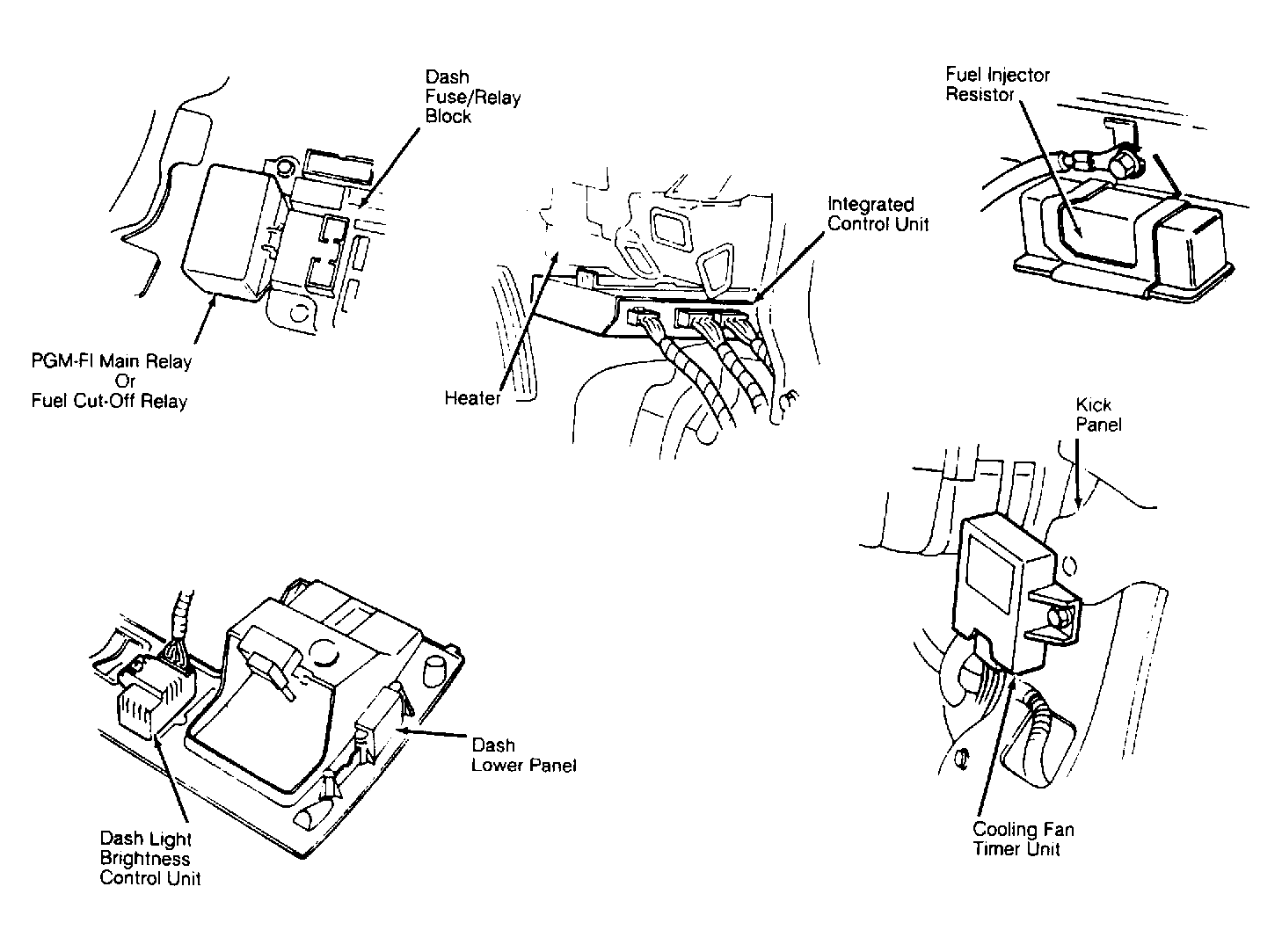

| Dash Light Brightness Control Unit | Behind dash lower panel. See Figure . |
| Electronic Control Unit (ECU) | On passenger side footwell, under carpet. |
| Igniter Unit (Carb.) | On underside of distributor cover. |
| Igniter Unit (EFI) | On right rear side of engine compartment, by under-hood relay block. See Figure . |
| Integrated Control Unit | Behind center of dash, near heater unit. See Figure . |
| Retractable Headlight Control Unit | In passenger compartment fuse/relay block. |
| Power Door Lock Control Unit | Behind front of passenger's door, above speaker. |
| Power Window Control Unit | Behind front of driver's door, above speaker. |
