Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Block
Passenger Compartment Under left side of dash.

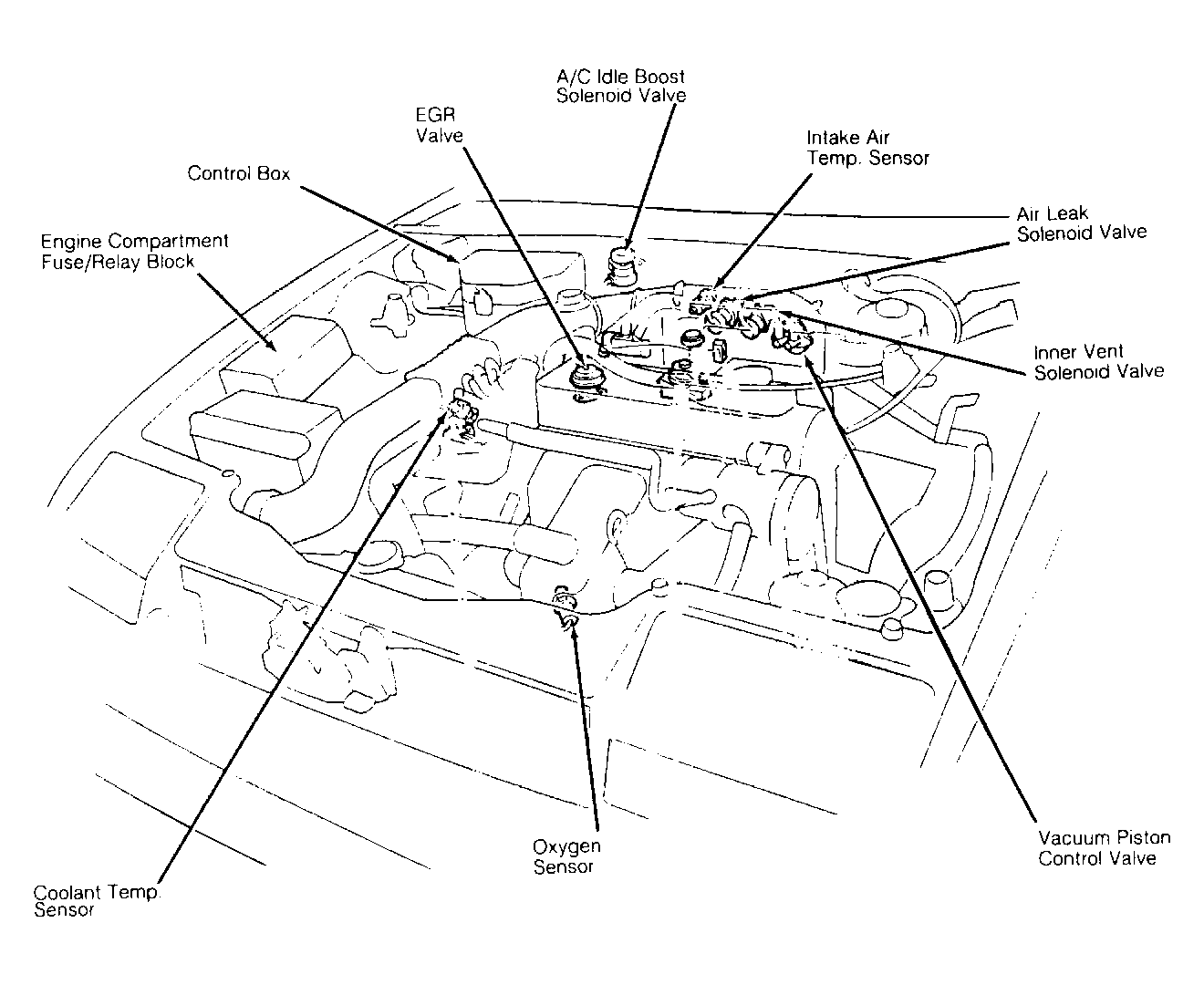

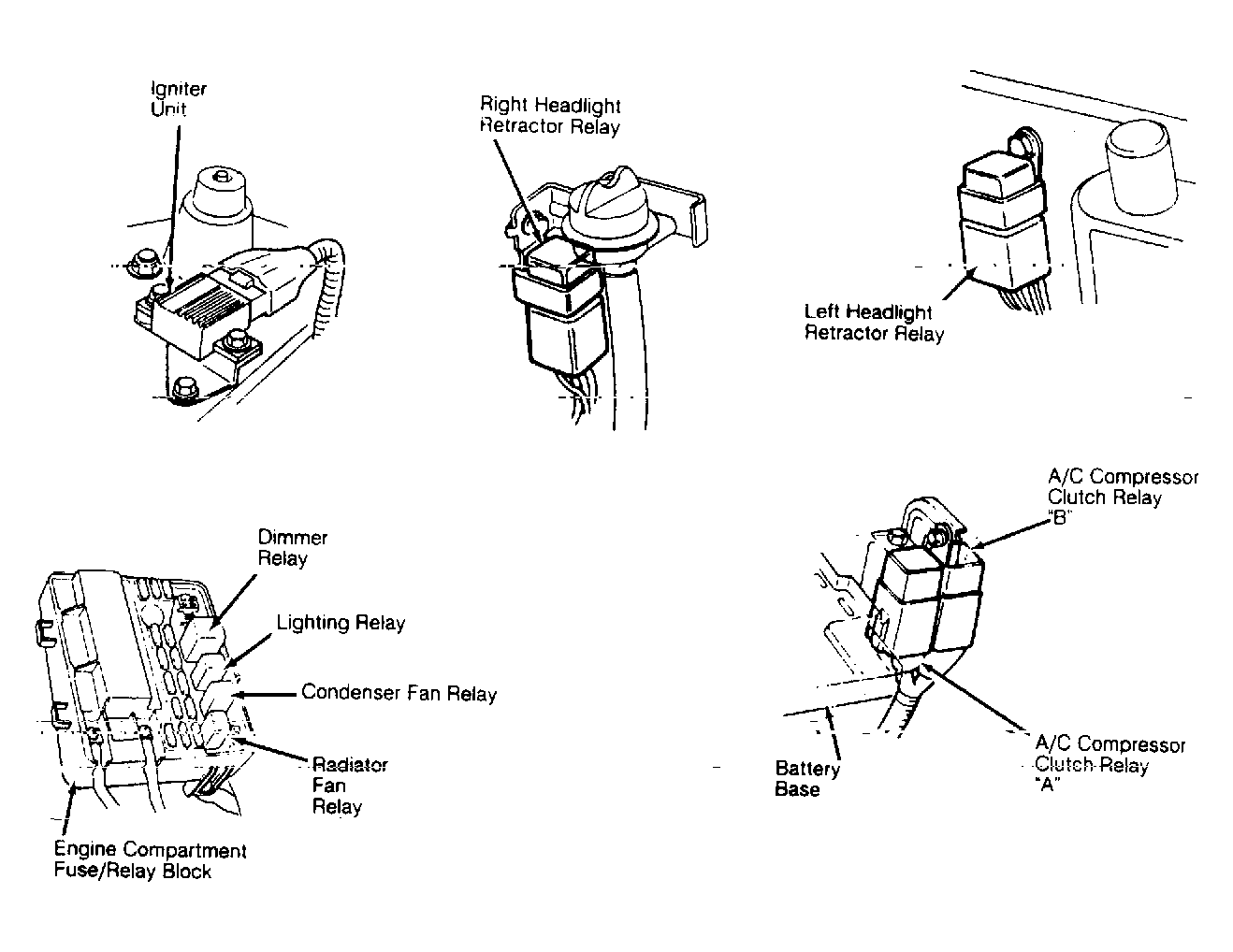

Engine Compartment In front of right wheelwell. See `Figure & Figure .
