Accord & Prelude

NOTE: Overhaul procedures are not available from manufacturer. Refer to exploded views. See Figure -Fig 5 .

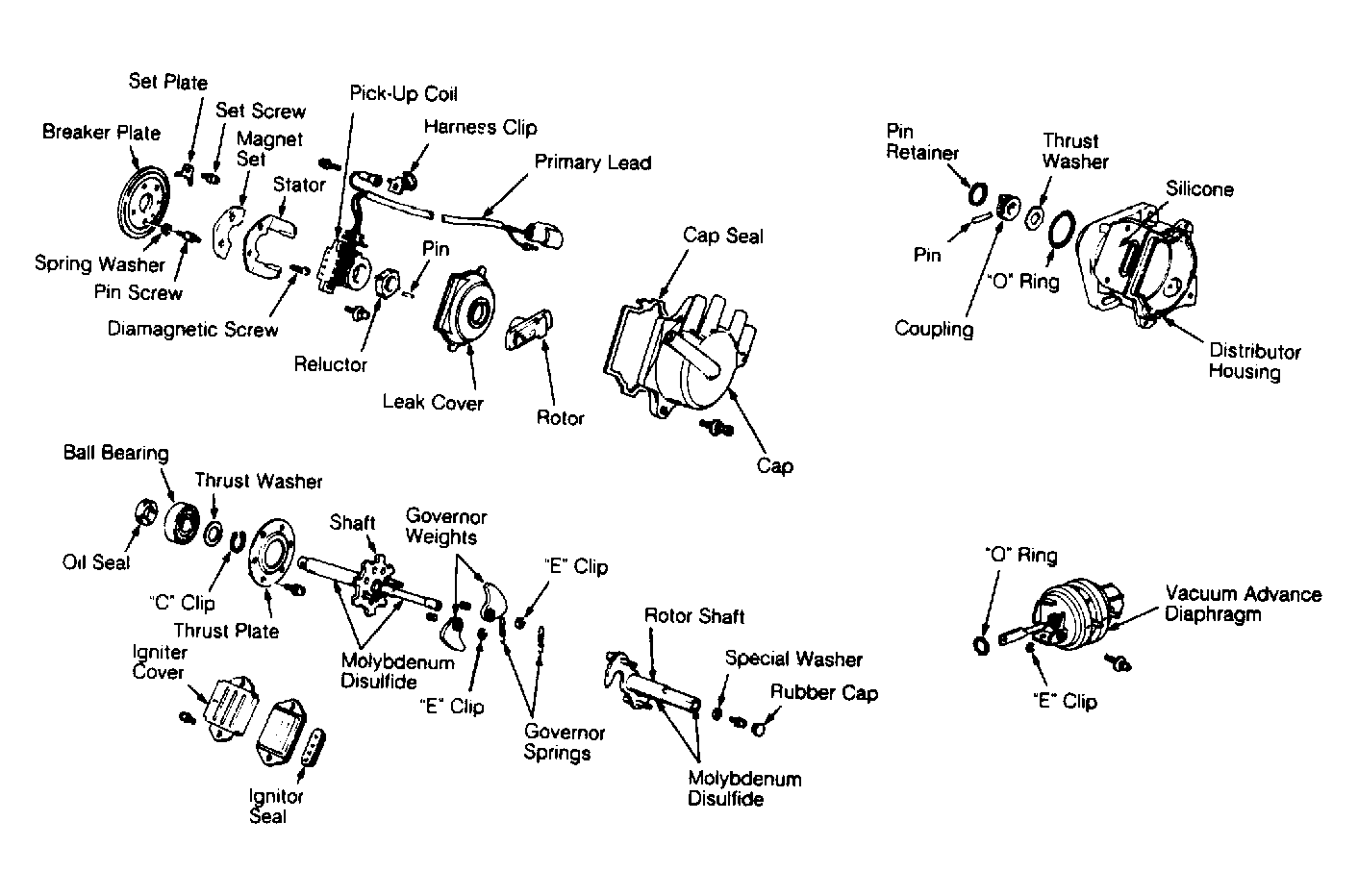

Fig 1: Exploded View of Carbureted Accord & Prelude Internal Igniter Hitachi Distributor

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Exploded View of Carbureted Accord External Igniter Toyo Denso Distributor

Courtesy of AMERICAN HONDA MOTOR CO., INC.

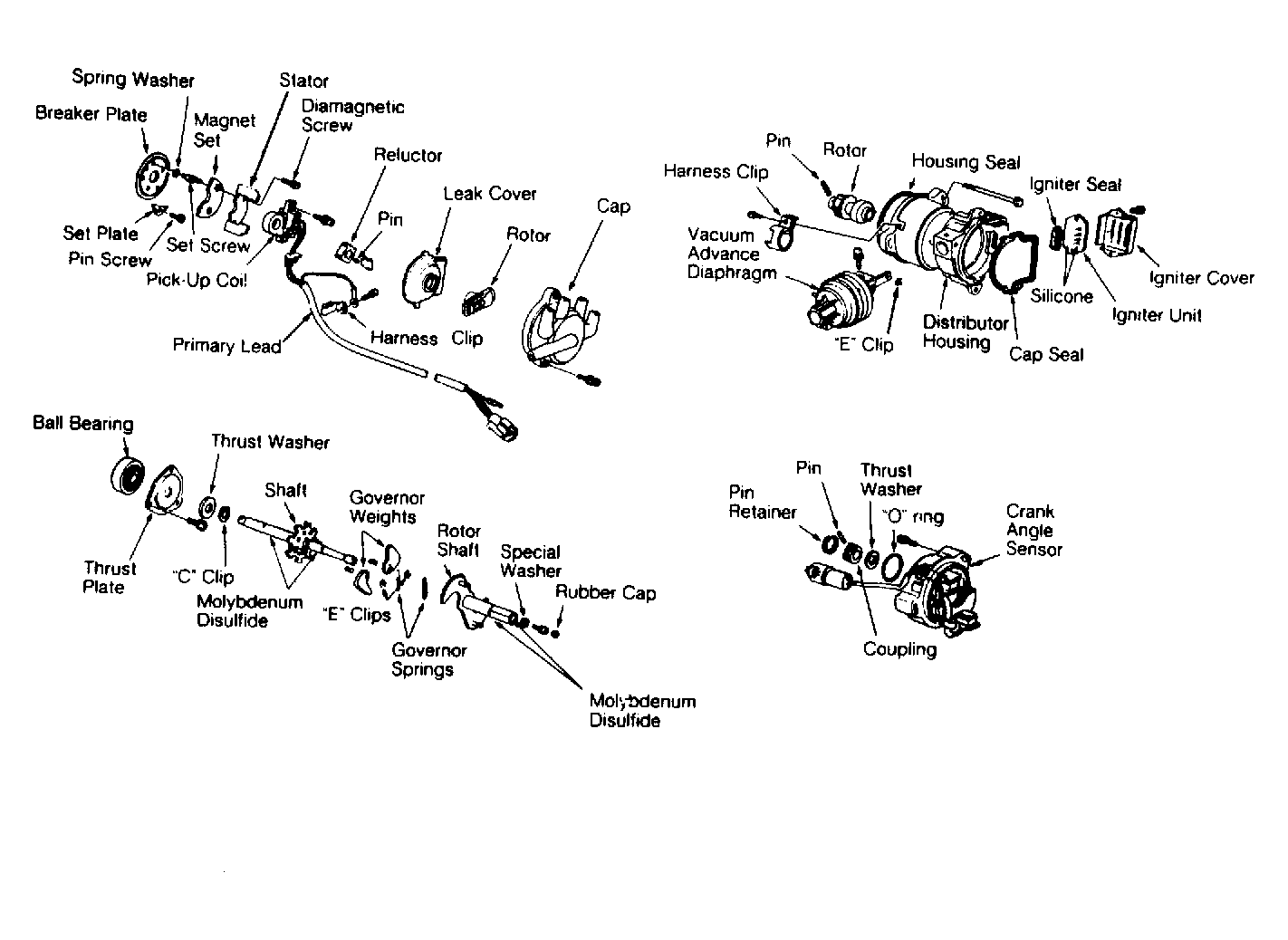

Fig 3: Exploded View of Carbureted Prelude Internal Igniter Toyo Denso Distributor

Courtesy of AMERICAN HONDA MOTOR CO., INC.

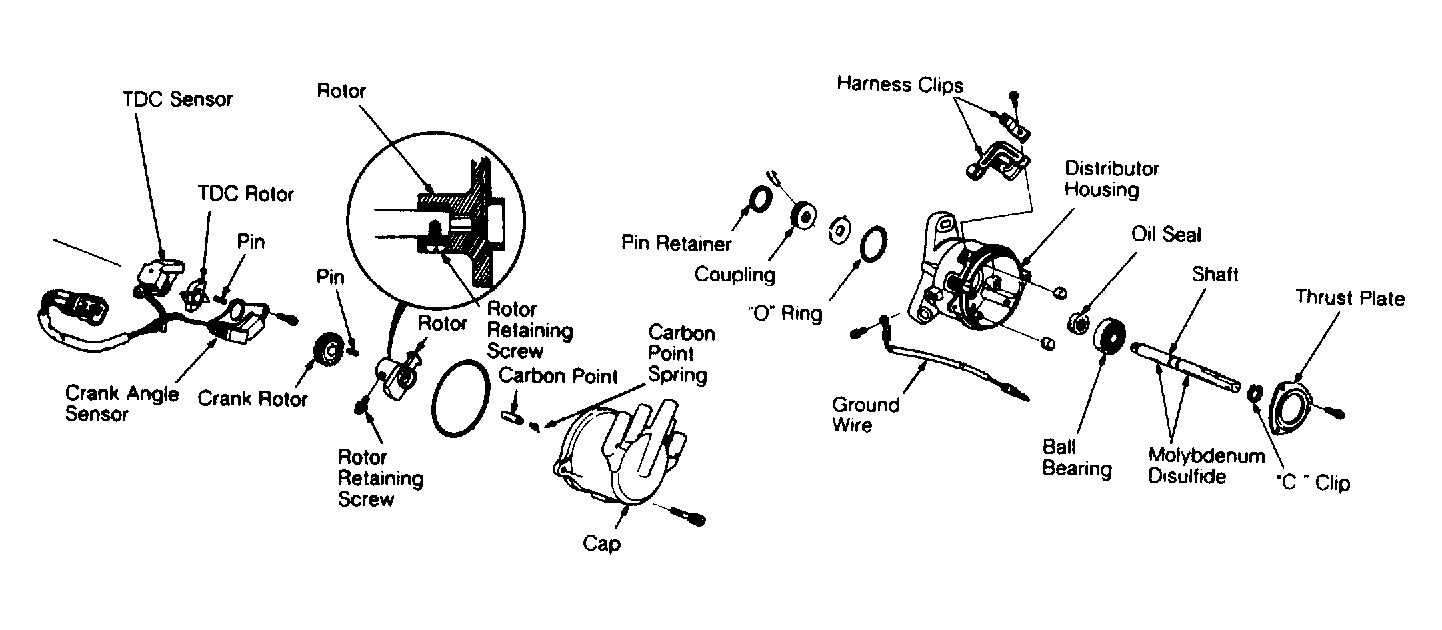

Fig 4: Exploded View of Fuel Injected Accord Internal Igniter Distributor

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Exploded View of Fuel Injected Accord Internal Igniter Distributor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
