Notes
Air Intake System: Notes
NOTE:
DO NOT
adjust by-pass valve full-close screw. Adjustment was preset at the factory.

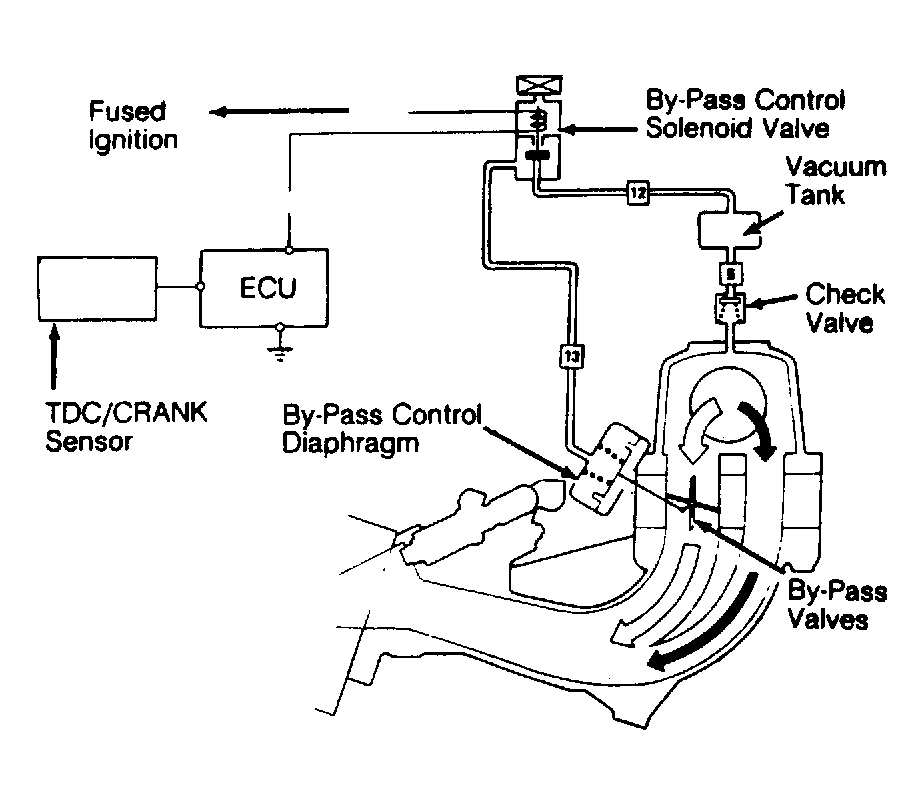

Fig 1: By-Pass Control System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
