Wiring Diagrams

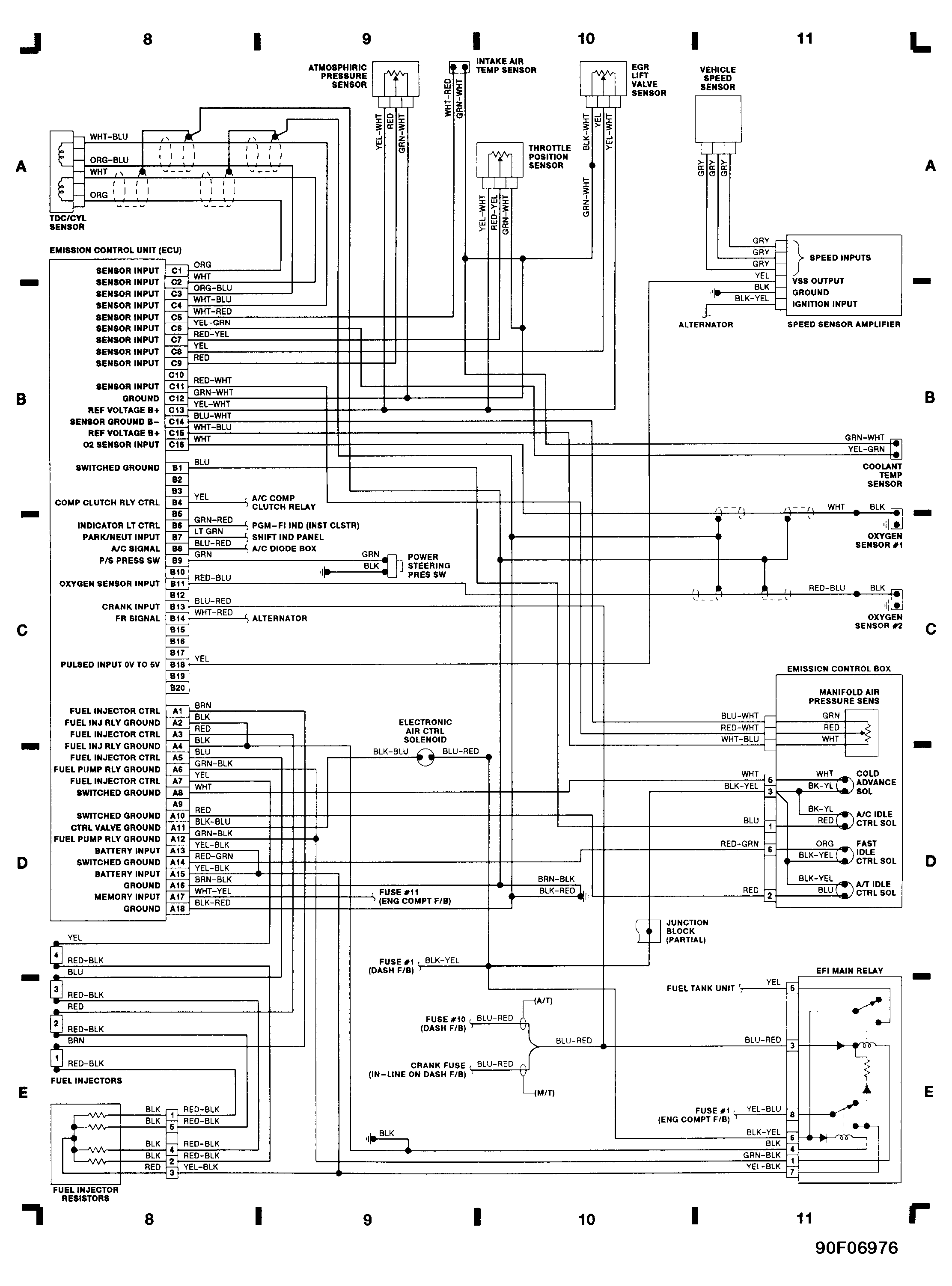

Fig 1: Wiring Diagram (Sensors & Fuel Control)
G90F06976Courtesy of AMERICAN HONDA MOTOR CO., INC.

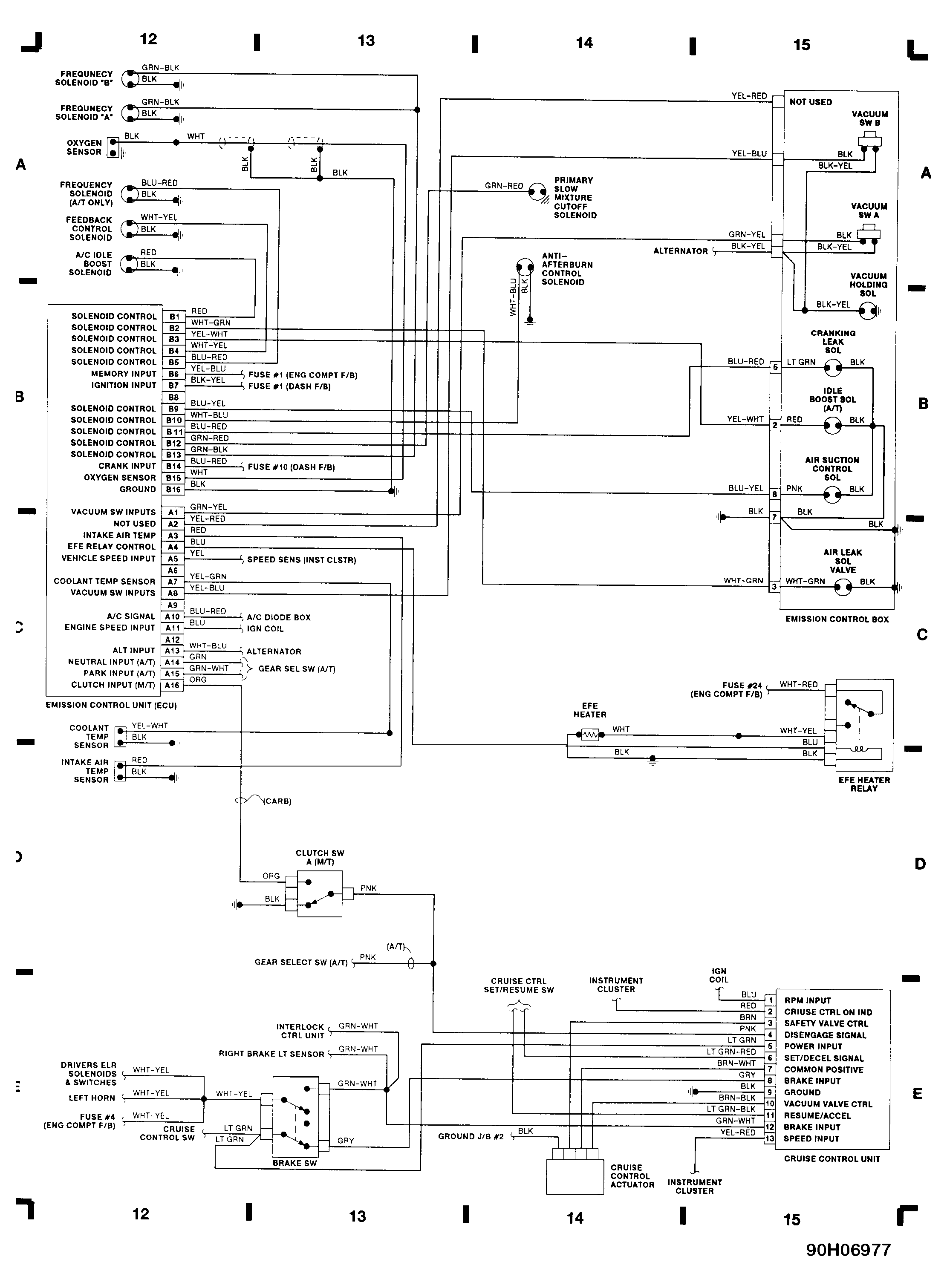

Fig 2: Wiring Diagram (Cruise Control & Engine Control)
G90H06977Courtesy of AMERICAN HONDA MOTOR CO., INC.
