Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Compressor Control Unit | Behind right side of dash. See Figure . |

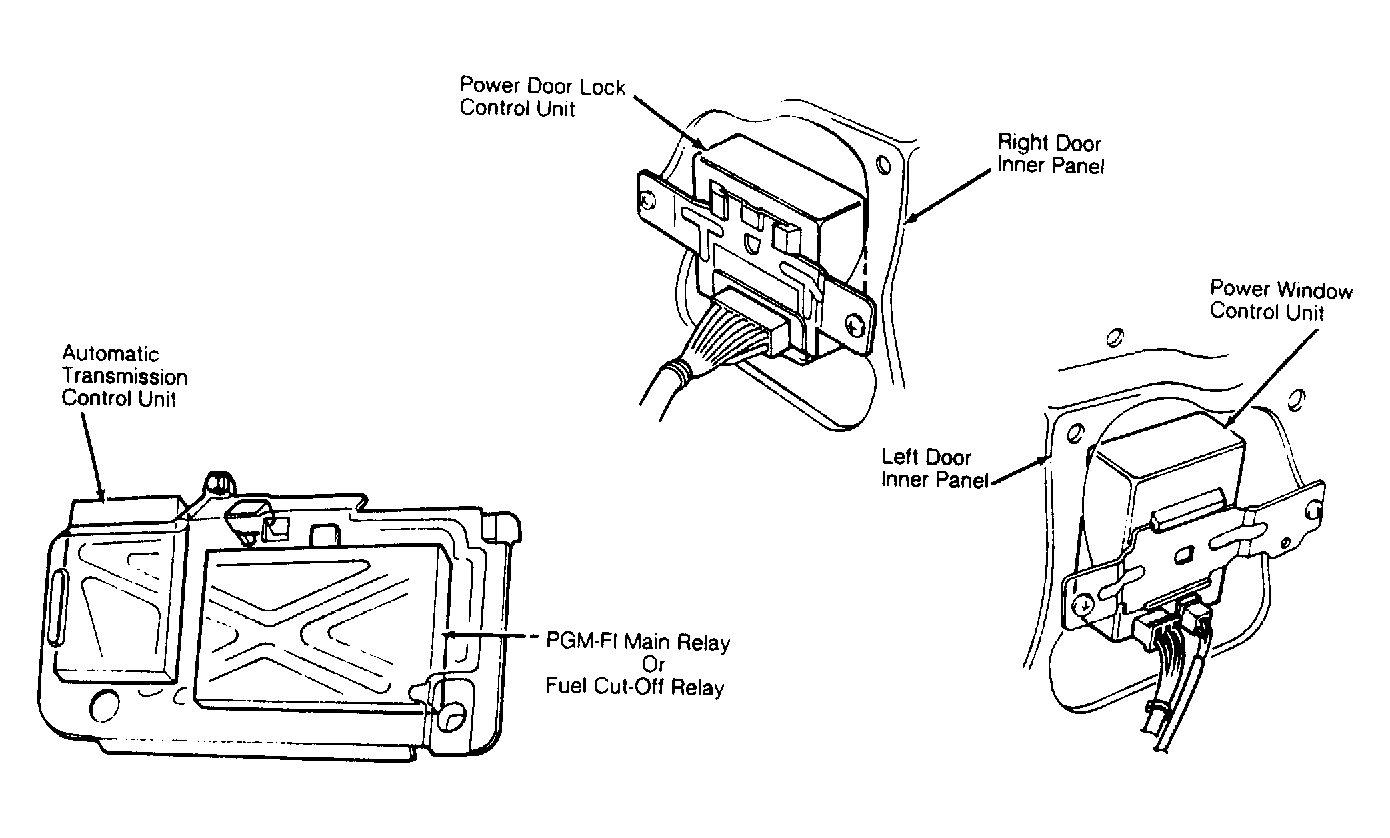

| Auto. Trans. Control Unit | Behind right side of dash. See Figure . |
| Cooling Fan Timer Unit | Below right side dash, below kick panel. See Figure . |
| Cruise Control Unit | Behind left side of dash. See Figure . |
| Dash Light Brightness Control Unit | Behind dash lower panel. See Figure . |
| Electronic Control Unit (PGM-FI) | Behind right side of dash. |
| Igniter Unit (Carb.) | On under side of distributor cover. |
| Igniter Unit (EFI) | On right rear side of engine compartment. See Figure . |
| Integrated Control Unit | Behind left side of dash, near heater unit. See Figure . |
| PGM-CARB. Control Unit | Behind right side of dash. |

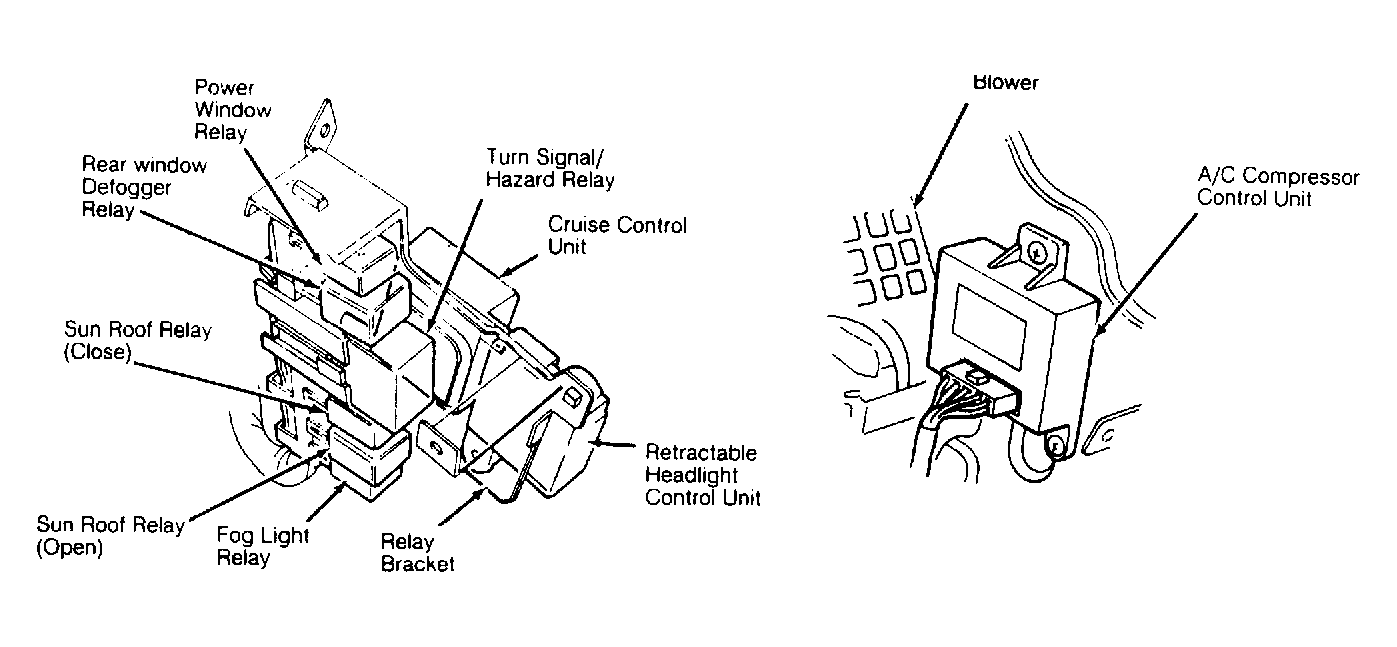

| Retractable Headlight Control Unit | In passenger compartment fuse/relay block. See Figure . |
| Power Door Lock Control Unit | Behind center of passenger's door. See Figure . |
| Power Window Control Unit | Behind front of driver's door, above speaker. See Figure . |
