Fuel Injector Resistor

NOTE: Civic (standard) does not use an injector resistor.

Disconnect resistor coupler. Check resistance between all resistor terminals and terminal "A". See Fig 1 . Resistance should be 5-7 ohms. Replace resistor if any resistance readings are out of specified range.

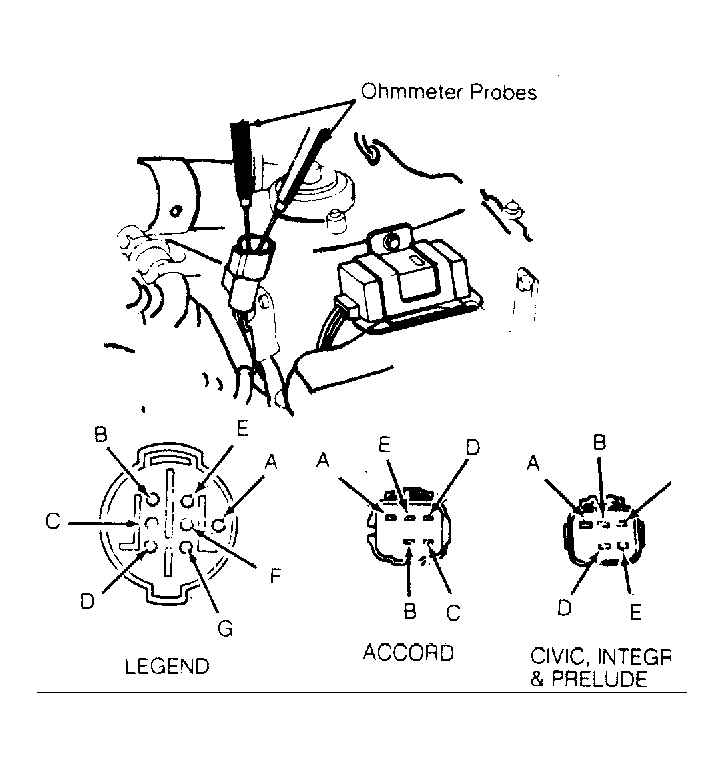

Fig 1: Testing Fuel System Resistor
G93519Courtesy of AMERICAN HONDA MOTOR CO., INC.
