Driver's Window Motor Test

Remove door panel. Unplug 4-pin connector from motor. Using jumper wires, connect terminals No. 1 and 2 to battery voltage and ground. See Fig 1 . Check for motor operation. Reverse jumper wires and retest. Replace motor if it does not operation in both directions.

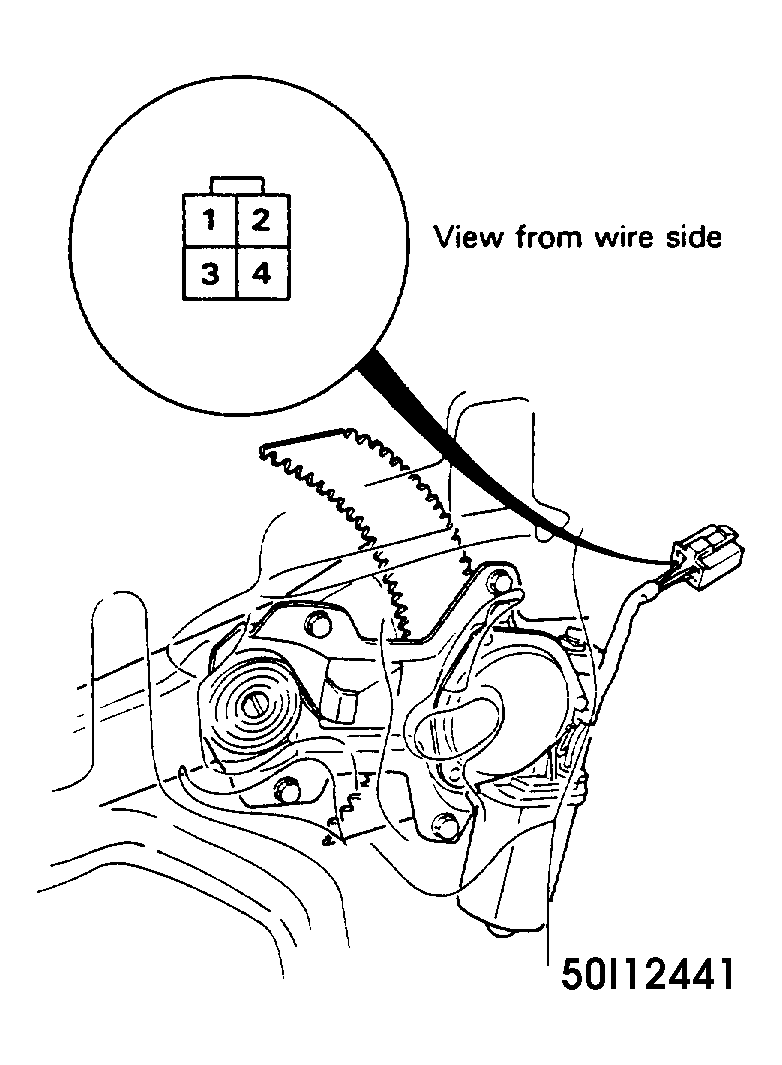

Fig 1: Driver's Window Motor Connector Terminal ID

Courtesy of AMERICAN HONDA MOTOR CO., INC.
