Driver's Switch Test

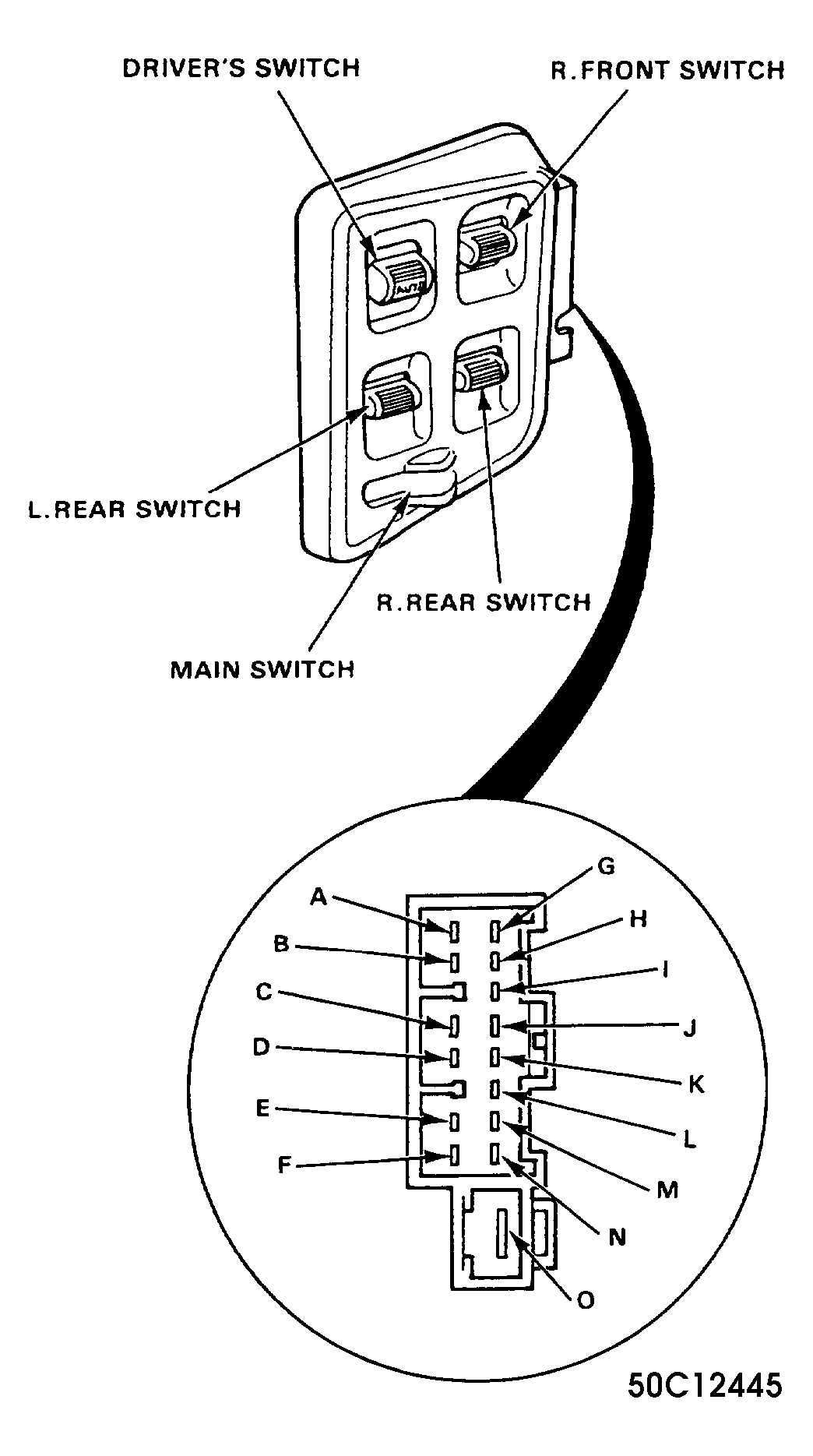

Remove door trim panel. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Fig 1 . See POWER WINDOW DRIVER'S SWITCH CONTINUITY TEST table.
POWER WINDOW DRIVER'S SWITCH CONTINUITY TEST
| Position | Main Switch | Pin Continuity | |||
|---|---|---|---|---|---|
| Left Front Switch | |||||
| Off | (1) | "C", "I" & "J" | |||
| Up | (1) | "B" & "J" | |||
| Down | (1) | "B" & "I" | |||
| Down (AUTO) | (1) | "B" & "I" | |||
| Right Front Switch | |||||
| Off | On | "G", "H" & "O" | |||
| Off | "G" & "H" | ||||
| Up | On | "A" & "G" | |||
| Off | "A" & "G" | ||||
| Down | On | "A" & "H" | |||
| Off | "A" & "H" | ||||
| Left Rear Switch | |||||
| Off | On | "F", "E" & "O" | |||
| Off | "F" & "E" | ||||
| Up | On | "L" & "F" | |||
| Off | "L" & "F" | ||||
| Down | On | "L" & "E" | |||
| Off | "L" & "E" | ||||
| Right Rear Switch | |||||
| Off | On | "M", "N" & "O" | |||
| Off | "M" & "N" | ||||
| Up | On | "D" & "N" | |||
| Off | "D" & "N" | ||||
| Down | On | "D" & "M" | |||
| Off | "D" & "M" | ||||
|
|||||
