Valve Body Unit: Reassembly

Clean all parts before reassembly. Coat plungers, cut-off valve and reaction control valve with Honda ATF. Use new "O" rings and seals.
Use grease in the cap seal and port seal grooves to hold seals in place during reassembly. Use grease to hold "O" rings in place during reassembly. To complete reassembly, reverse disassembly procedure.

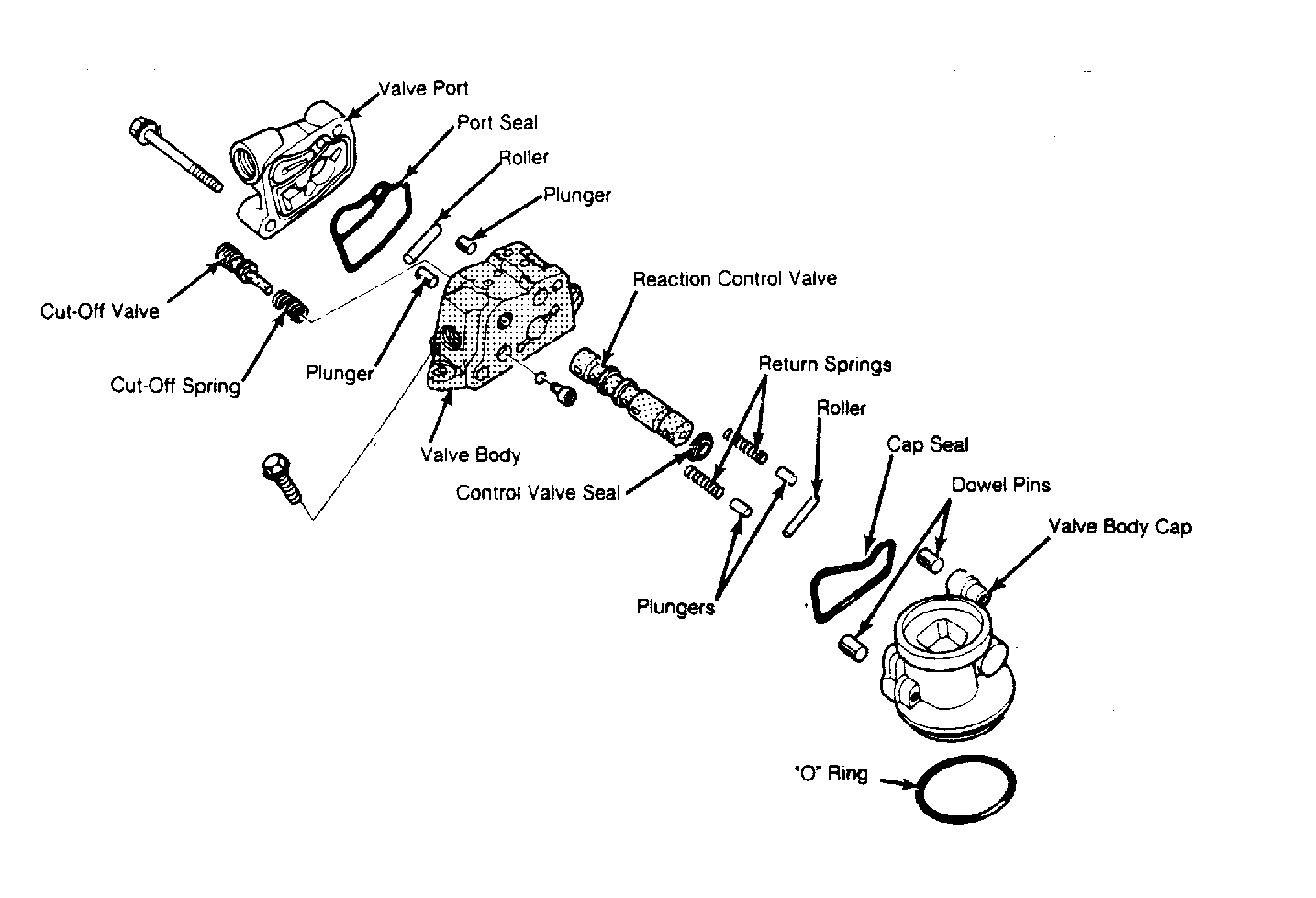

Fig 1: Exploded View of Civic Valve Body Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Exploded View of Accord & Prelude Valve Body Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.

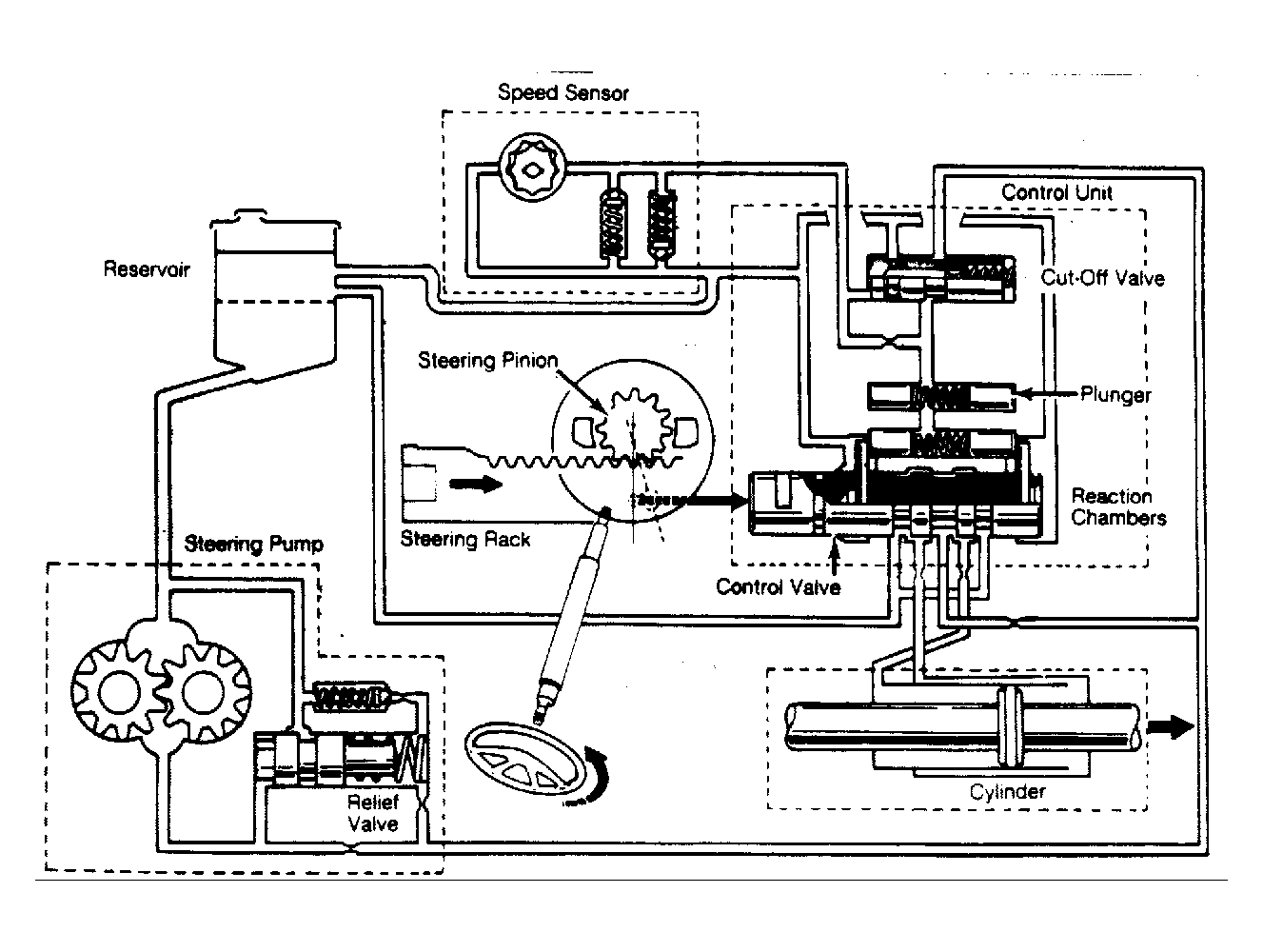

Fig 3: Civic Power Steering Hydraulic Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Accord & Prelude Power Steering Hydraulic Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
