RELUCTOR-To-Stator Air Gap

Align reluctor teeth with those of stator and check air gap. Rotate reluctor and check air gap at all teeth. See Fig 1. There should be equal air gap at all teeth. If necessary, loosen screws and reposition stator to provide equal air gaps.

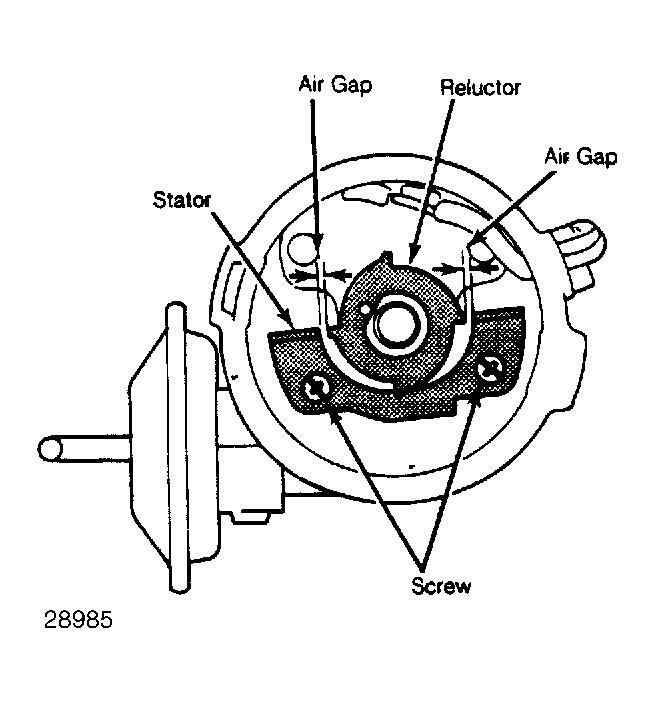

Fig 1: Adjusting Reluctor-To-Stator Air Gap

Courtesy of AMERICAN HONDA MOTOR CO., INC.
