Fuel Injection System - HONDA PGM-FI
>>
Wiring Diagrams
Wiring Diagrams

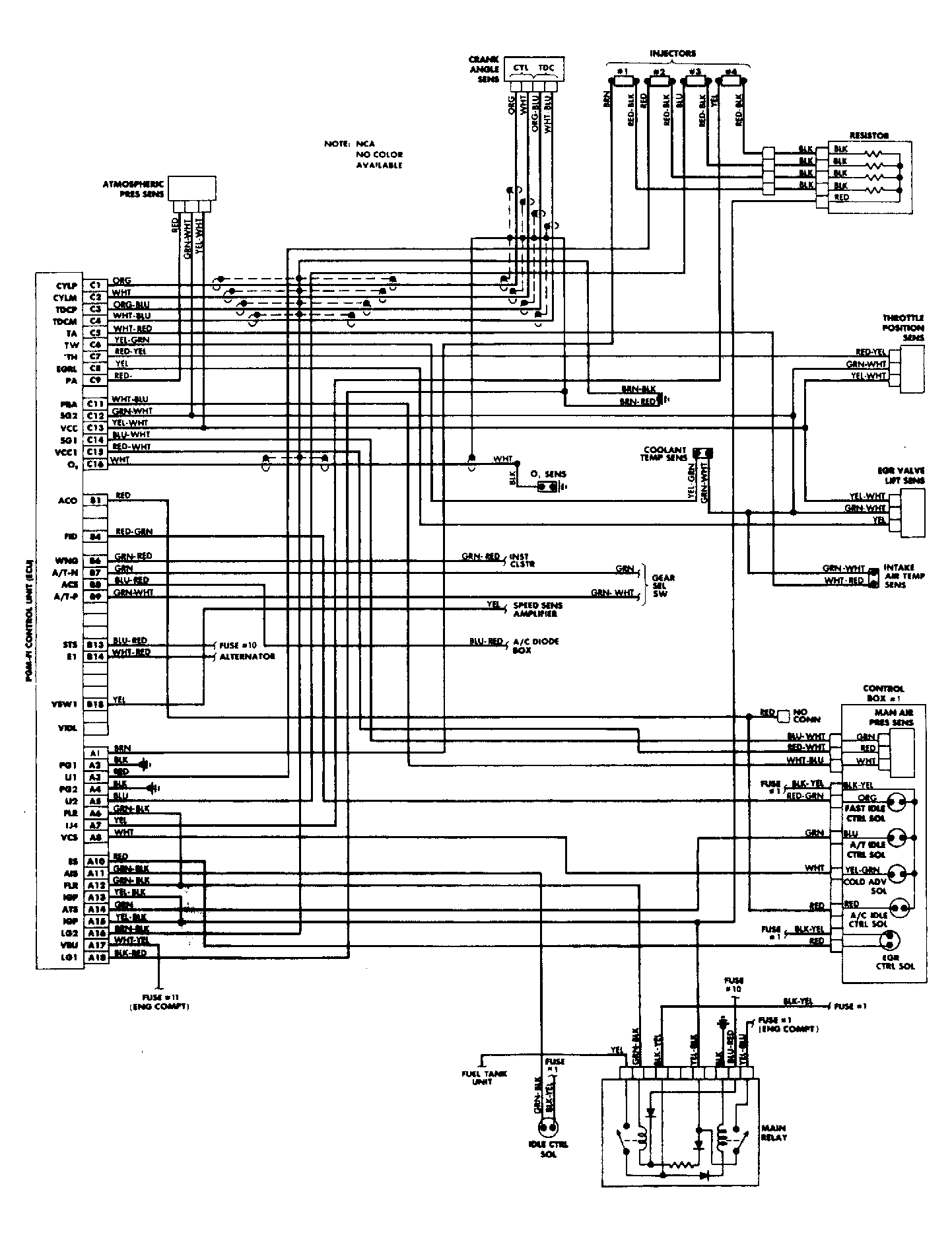

Fig 1: Accord PGM-FI/CEC Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Civic & CRX PGM-FI/CEC Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Prelude PGM-FI/CEC Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
