Combination Switch
- Remove combination switch from steering column. Using an ohmmeter check for continuity between terminals of each connector in each switch position. Ensure that wire leads are not being pulled while moving switch from one position to another.

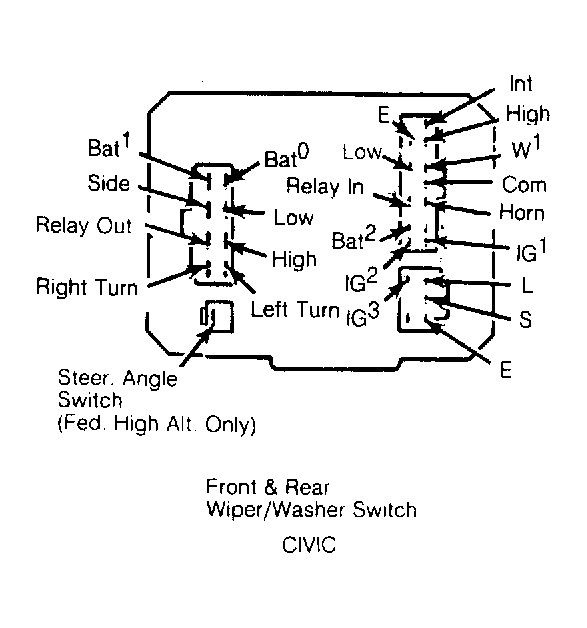

- Ensure switch lever works freely without binding. Check continuity according to the following charts. For harness connector identification, See Fig 1 .
NOTE:
Several different wires have the same color. They have been given a numbered suffix to distinguish them. For example; GRN(1) GRN(2).
CIVIC FRONT WIPER SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals | Mist Switch |
|---|---|---|
| Off | Low & Com | Off |
| Off | High & E | On |
| Int | Low & Com | Off |
| Int | IG(1) & Int | Off |
| Int | High & E | On |
| Int | IG(1) & Int | On |
| Low | Low & E | Off |
| Low | High & E | On |
| High | High & E | Off |
| High | High & E | On |
CIVIC FRONT WASHER SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals |
|---|---|
| Off | None |
| On | W(1) & IG(1) |
CIVIC REAR WIPER SWITCH CONTINUITY TEST
| Switch Position | Wire Terminals | Continuity |
|---|---|---|
| Off | L & S | Yes |
| On | L & E | Yes |
CIVIC REAR WASHER SWITCH CONTINUITY TEST
| Switch Position | Wire Terminals | Continuity |
|---|---|---|
| Off | Any | No |
| On | IGN(1) & W(2) | Yes |
CIVIC HAZARD & TURN SWITCH CONTINUITY TEST
| Switch Position | Wire Terminals | Hazard Switch |
|---|---|---|
| Right | IG(2) & Relay In | Off |
| Right | Relay Out & Right Turn | Off |
| Neutral | IG(2) & Relay In | Off |
| Left | IG(2) & Relay In | Off |
| Left | Relay Out & LFT | Off |
| No Pos. | Bat(2) & Relay In | On |
| No Pos. | Relay Out & RGT & LFT | On |
CIVIC HEADLIGHT SWITCH CONTINUITY TEST
| Switch Position | Wire Terminals | Continuity |
|---|---|---|
| Off | Any | No |
| Park | Bat(1) & Side | Yes |
| On | Bat(1) & Side & Bat(0)& Head | Yes |
CIVIC DIMMER SWITCH CONTINUITY TEST
| Switch Position | Wire Terminals | Continuity |
|---|---|---|
| High | Head & High | Yes |
| Low | Head & Low | Yes |
CIVIC PASSING LIGHT SWITCH CONTINUITY TEST
| Switch Position | Wire Terminals | Continuity |
|---|---|---|
| Off | Any | No |
| On | Bat(0) & High | Yes |
