Alternator - NIPPONDENSO: Overhaul

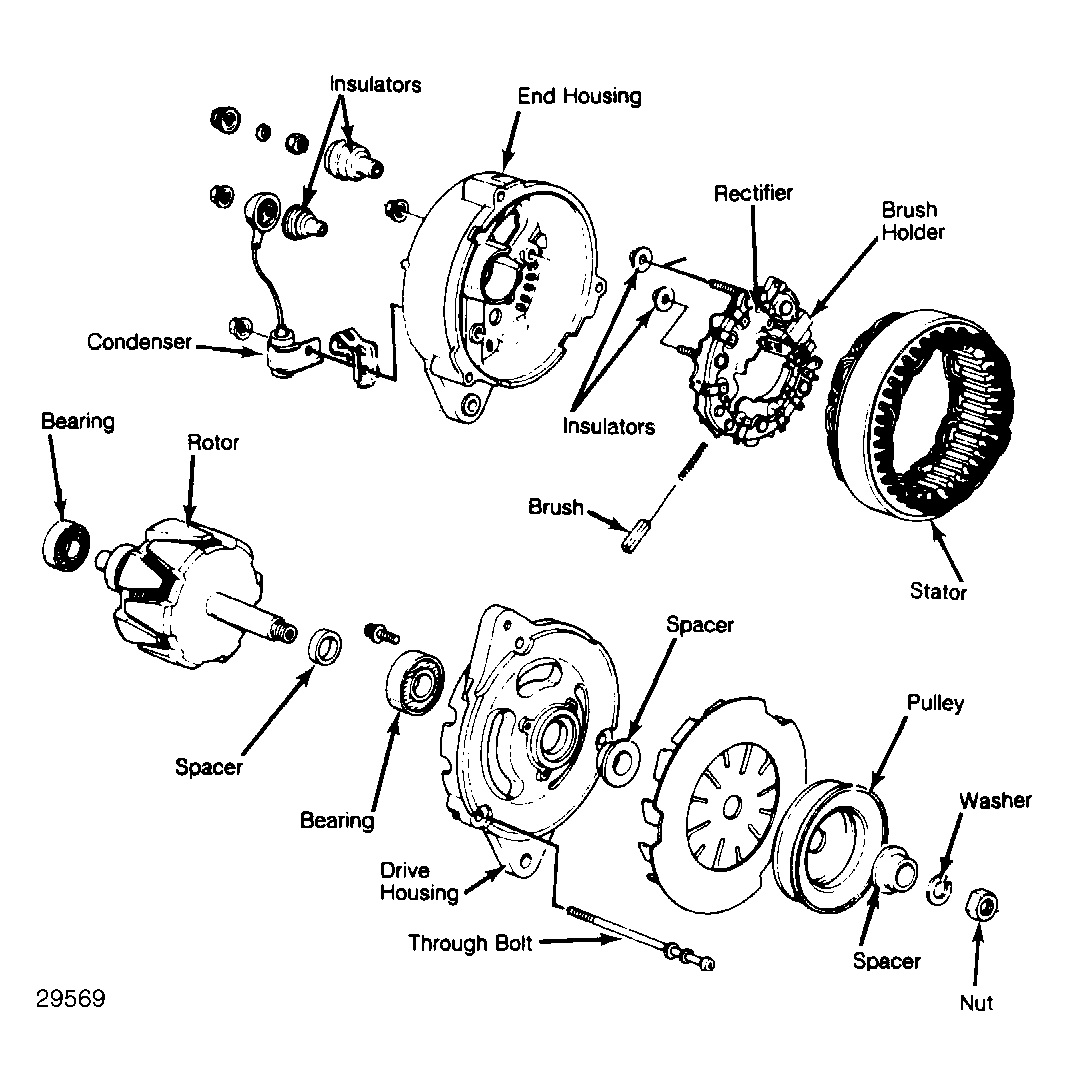

Fig 1: Exploded View of Prelude Alternator

G29569

Courtesy of AMERICAN HONDA MOTOR CO., INC.
