Combination Switch
- Remove combination switch from steering column. Using an ohmmeter check for continuity between terminals of each connector in each switch position. Ensure that wire leads are not being pulled while moving switch from one position to another.

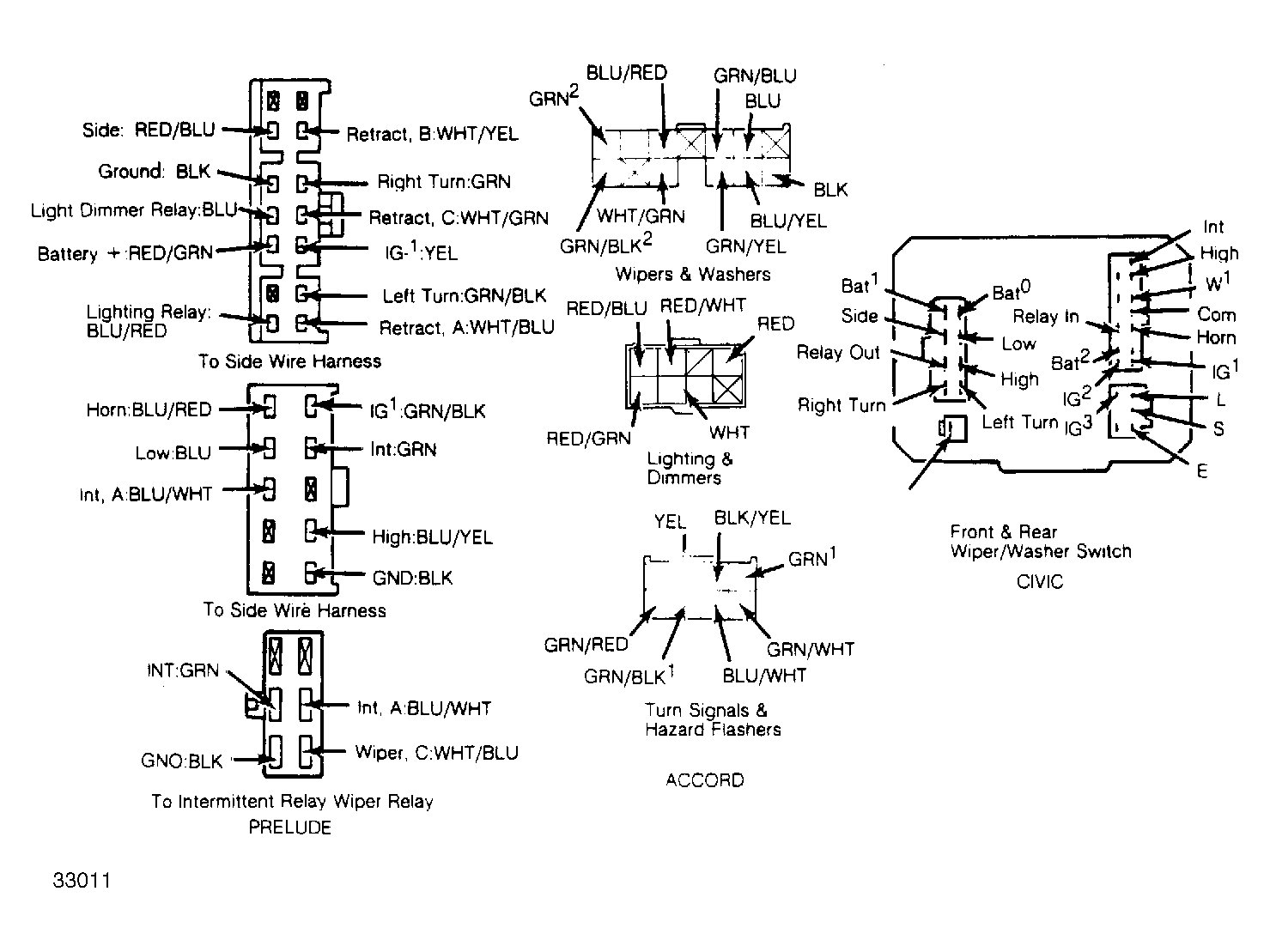

- Ensure switch lever works freely without binding. Check continuity according to the following charts. For harness connector identification, See Fig 1 .
ACCORD COMBINATION SWITCH CONTINUITY TEST
| Switch Position | Wire Colors | Mist Switch |
|---|---|---|
| Off | BLU/WHT & BLU | Off |
| Off | BLU & BLU/YEL | On |
| Int | GRN/BLK & GRN | Off |
| Int | BLU/WHT & BLU | Off |
| Int | GRN/BLK & GRN | On |
| Int | BLU/YEL & BLU | On |
| Low | BLU & BLK | Off |
| Low | BLU/YEL & BLK | On |
| High | BLU/YEL & BLK | Off |
| High | BLU/YEL & BLK | On |
ACCORD FRONT WASHER SWITCH CONTINUITY TEST
| Switch Position | Wire Colors | Continuity |
|---|---|---|
| Off | BLU/YEL & GRN/BLK | No |
| On | BLU/YEL & GRN/BLK | Yes |
ACCORD DIMMER SWITCH CONTINUITY TEST
| Switch Position | Wire Colors | Continuity |
|---|---|---|
| Off | Any | No |
| Park | WHT & RED | Yes |
| High | WHT, RED, RED/GRN & RED/BLU | Yes |
| Low | WHT, RED, RED/GRN & RED/WHT | Yes |
ACCORD PASSING LIGHT SWITCH CONTINUITY TEST
| Switch Position | Wire Colors | Continuity |
|---|---|---|
| Off | BLU/RED & BLK & BLU | Yes |
| On | WHT & RED/BLU | Yes |
ACCORD TURN SIGNAL SWITCH CONTINUITY TEST
| Switch Position | Wire Colors | Continuity |
|---|---|---|
| Off | YEL & GRN/WHT | Yes |
| On RT | YEL & GRN | Yes |
| On RT | GRN/RED & GRN/YEL | Yes |
| Neut | YEL & GRN/WHT | Yes |
| On LFT | YEL & GRN/WHT | Yes |
| On LFT | GRN/RED & GRN/BLU | Yes |
ACCORD HAZARD & TURN SWITCH CONTINUITY TEST
| Switch Position | Wire Colors | Hazard Switch |
|---|---|---|
| On RT | WHT/GRN & GRN/WHT | On |
| On RT | RED/GRN & GRN/YEL & GRN/BLU | On |
| Neut | WHT/GRN & GRN/WHT | On |
| Neut | GRN/RED & GRN/YEL & GRN/BLU | On |
| On LFT | WHT/GRN & GRN/WHT | On |
| On LFT | GRN/RED & GRN/YEL & GRN/BLU | On |
CIVIC FRONT WIPER SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals | Mist Switch |
|---|---|---|
| Off | Low & Com | Off |
| Off | High & E | On |
| Int | Low & Com | Off |
| Int | IG(1) & Int | Off |
| Int | High & E | On |
| Int | IG(1) & Int | On |
| Low | Low & E | Off |
| Low | High & E | On |
| High | High & E | Off |
| High | High & E | On |
CIVIC FRONT WASHER SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals |
|---|---|
| Off | None |
| On | W(1) & IG(1) |
CIVIC HAZARD & TURN SWITCH CONTINUITY TEST
| Swtich Position | Wire Terminals | Hazard Switch |
|---|---|---|
| Right | IG(1) & Relay In | Off |
| Right | Relay Out & Right Turn | Off |
| Neutral | IG(2) & Relay In | Off |
| Left | IG(2) & Relay In | Off |
| Left | Relay & RGT & LFT | On |
CIVIC HEADLIGHT SWITCH CONTINUITY TEST
| Switch Position | Wire Terminals | Continuity |
|---|---|---|
| Off | Any | No |
| Park | Bat(1) & Side | Yes |
| On | Bat(1) & Side & Bat(0)& Head | Yes |
CIVIC DIMMER SWITCH CONTINUITY TEST
| Switch Position | Wire Terminals | Continuity |
|---|---|---|
| High | Head & High | Yes |
| Low | Head & Low | Yes |
CIVIC PASSING LIGHT SWITCH CONTINUITY TEST
| Switch Position | Wire Terminals | Continuity |
|---|---|---|
| Off | Any | No |
| On | Bat(0) & High | Yes |
PRELUDE COMBINATION SWITCH CONTINUITY TEST
| Switch Position | Wire Colors | Mist Switch |
|---|---|---|
| Off | BLU/WHT & BLU | Off |
| Off | BLU & BLU/YEL | On |
| Int | GRN/BLK & GRN | Off |
| Int | BLU/WHT & BLU | Off |
| Int | GRN/BLK & GRN | On |
| Int | BLU/YEL & BLU | On |
| Low | BLU/YEL & BLK | Off |
| Low | BLU/YEL & BLK | On |
| High | BLU/YEL & BLK | Off |
| High | BLU/YEL & BLK | On |
PRELUDE FRONT WASHER SWITCH CONTINUITY TEST
| Switch Position | Wire Colors | Continuity |
|---|---|---|
| Off | BLU/YEL & GRN/BLK | No |
| On | BLU/YEL & GRN/BLK | Yes |
PRELUDE DIMMER SWITCH CONTINUITY TEST
| Switch Position | Wire Colors | Continuity |
|---|---|---|
| High | BLK & BLU | Yes |
| Low | BLU & BLK | No |
PRELUDE PASSING LIGHT SWITCH CONTINUITY TEST
| Switch Position | Wire Colors | Continuity |
|---|---|---|
| Off | BLU/RED & BLK & BLU | Yes |
PRELUDE HEADLIGHT SWITCH CONTINUITY TEST
| Switch Position | Wire Colors | Continuity |
|---|---|---|
| Off | WHT/GRN & WHT/YEL | Yes |
| "O" | RED/GRN & RED/BLU | Yes |
| "O" | WHT/GRN & WHT/BLK | Yes |
| "O" | BLU/RED & BLU | Yes |
PRELUDE TURN SIGNAL SWITCH CONTINUITY TEST
| Switch Position | Wire Colors | Continuity |
|---|---|---|
| Off | Any | No |
| On Right | YEL & GRN | Yes |
| On Left | YEL & GRN/BLK | Yes |
