Fuel System Resistor

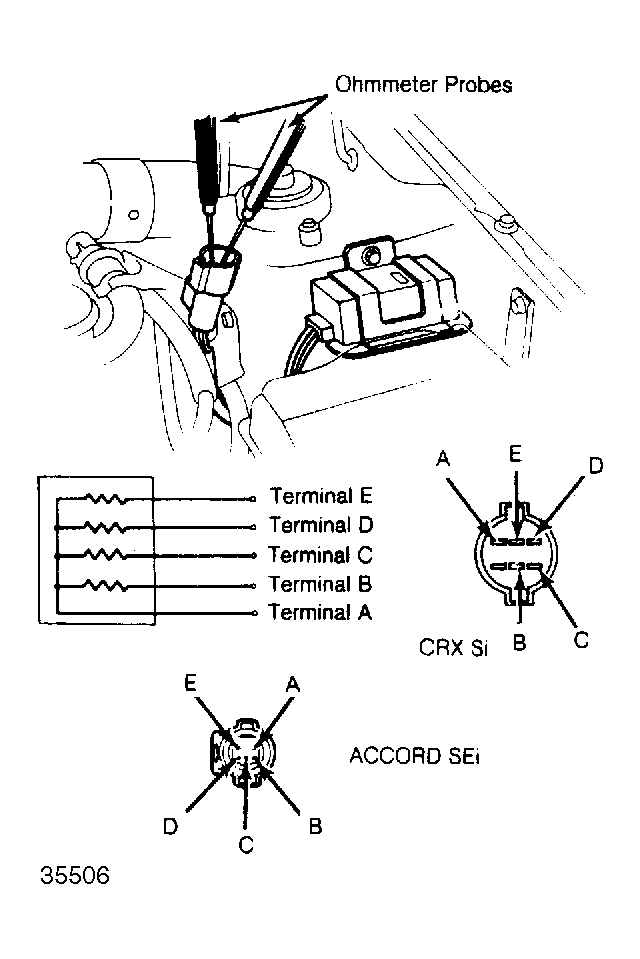

Disconnect resistor coupler. Check resistance between all resistor terminals (E, D, C and B), and power terminal (A). See Fig 1 . Resistance should read 5-7 ohms. Replace resistor if any resistance readings are out of specified range.
