Ignition System - TOYO DENSO Electronic: Testing: IGNITOR

1. Disconnect wire leads from ignitor. Turn ignition on. Check voltage between Blue wire terminal and ground. Also check voltage between Black/Yellow wire terminal and ground. Battery voltage should be present in both instances.
2. Turn ignition off. Set ohmmeter to x100 range. Connect a jumper wire between Blue and Green ignitor terminals. With ignitor leads still disconnected, check continuity between ignitor terminals. See Fig 1.
3. There should be no continuity with positive probe on Black/Yellow wire terminal. There should be continuity with positive probe on Blue wire terminal.

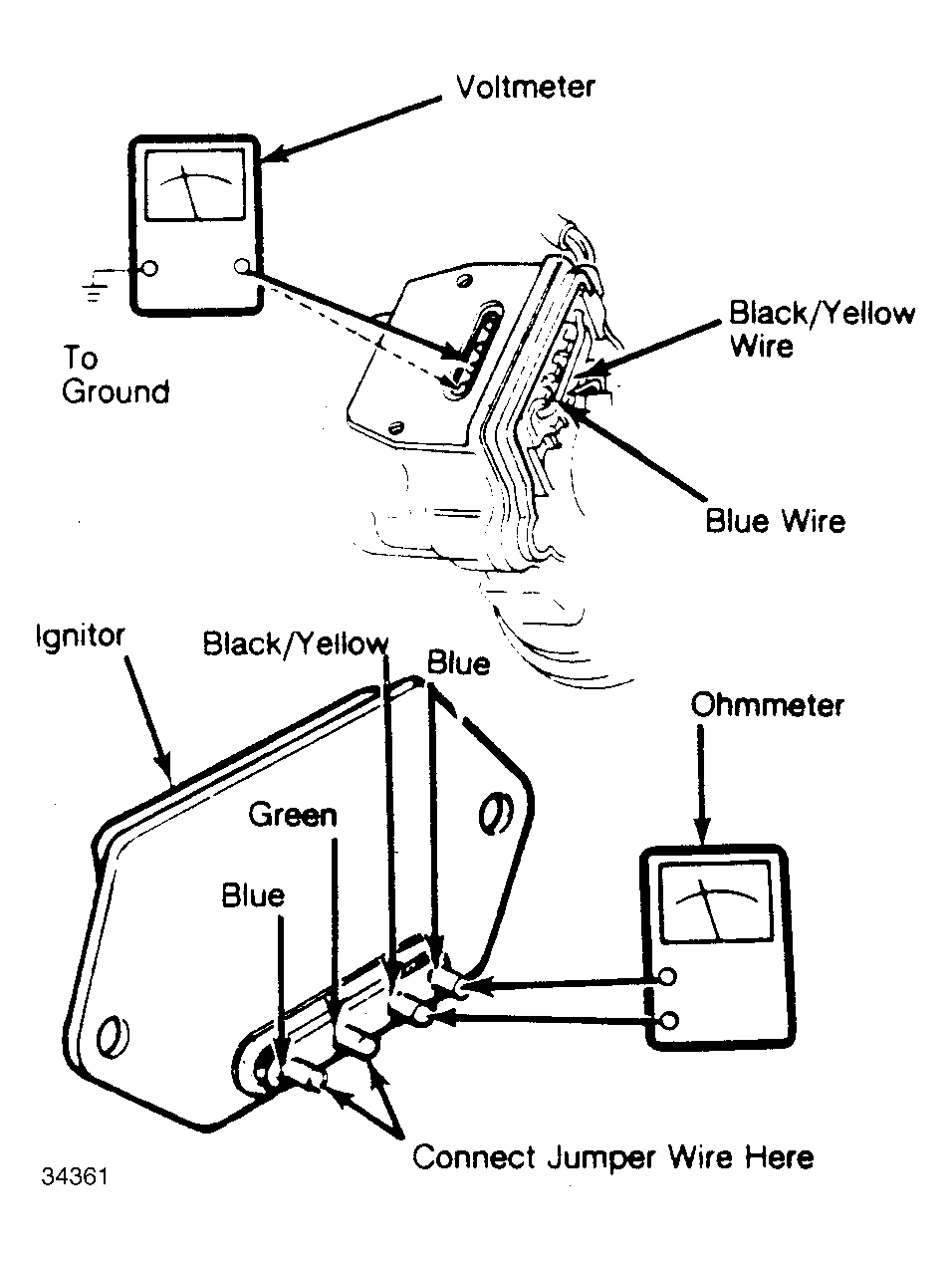

Fig 1: Ignitor Test
