Ignition Coil

  1. Turn ignition off. Disconnect wiring from ignition coil terminals. Connect an ohmmeter across coil terminals. See Fig 1.
  2. On Civic and CRX, reading should be 1.24-1.46 ohms. Set ohmmeter in x1000 range. Connect ohmmeter leads to ignition coil positive terminal and coil tower terminal. See Fig 1.
  3. On Civic and CRX, secondary resistance should be 8000-12,000 ohms. If readings are not within specifications, replace ignition coil.

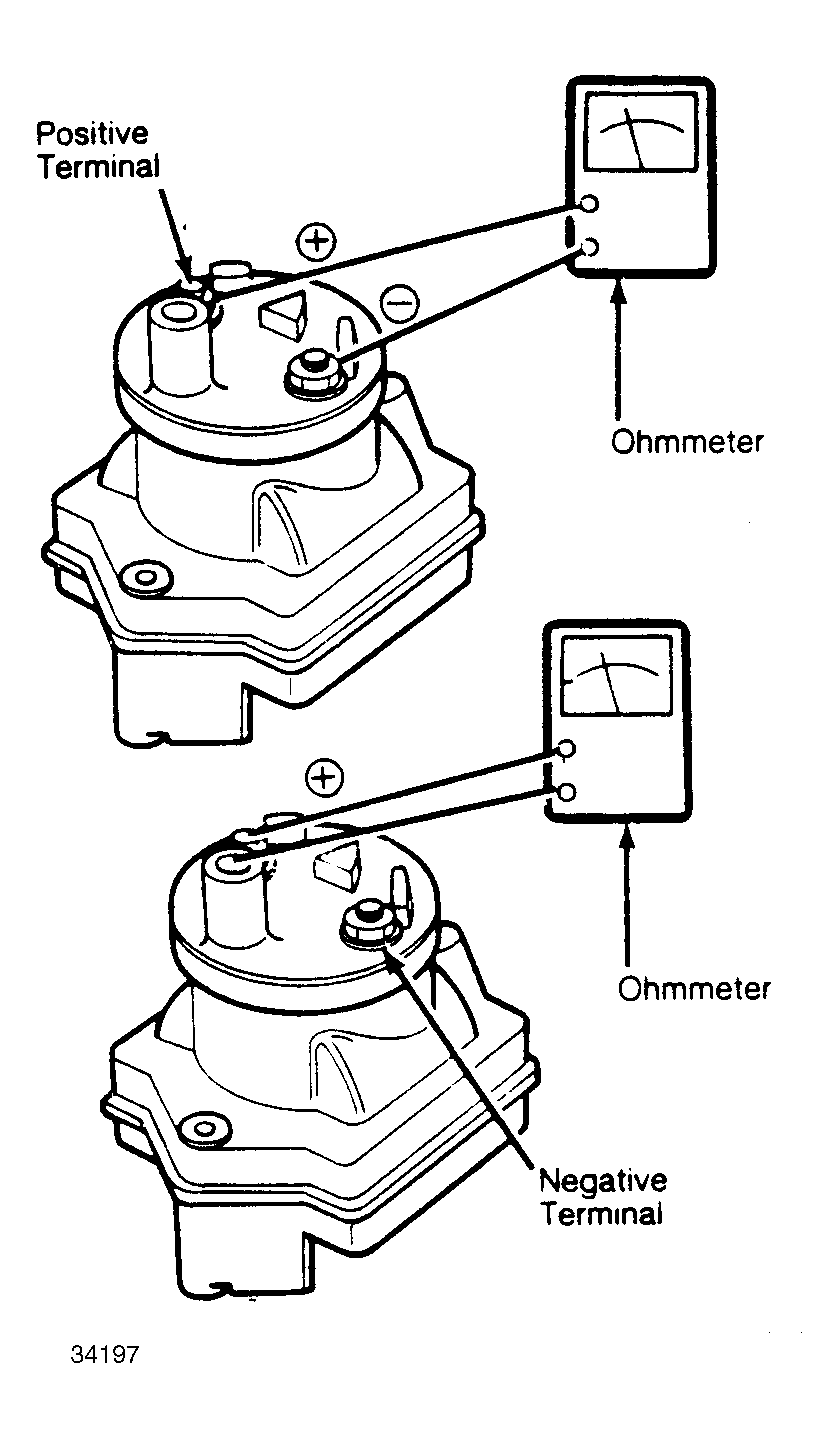

Fig 1: Ignition Coil Test Civic coil shown; others use conventional type coil.
