Feedback Carburetor System: Wiring Diagram

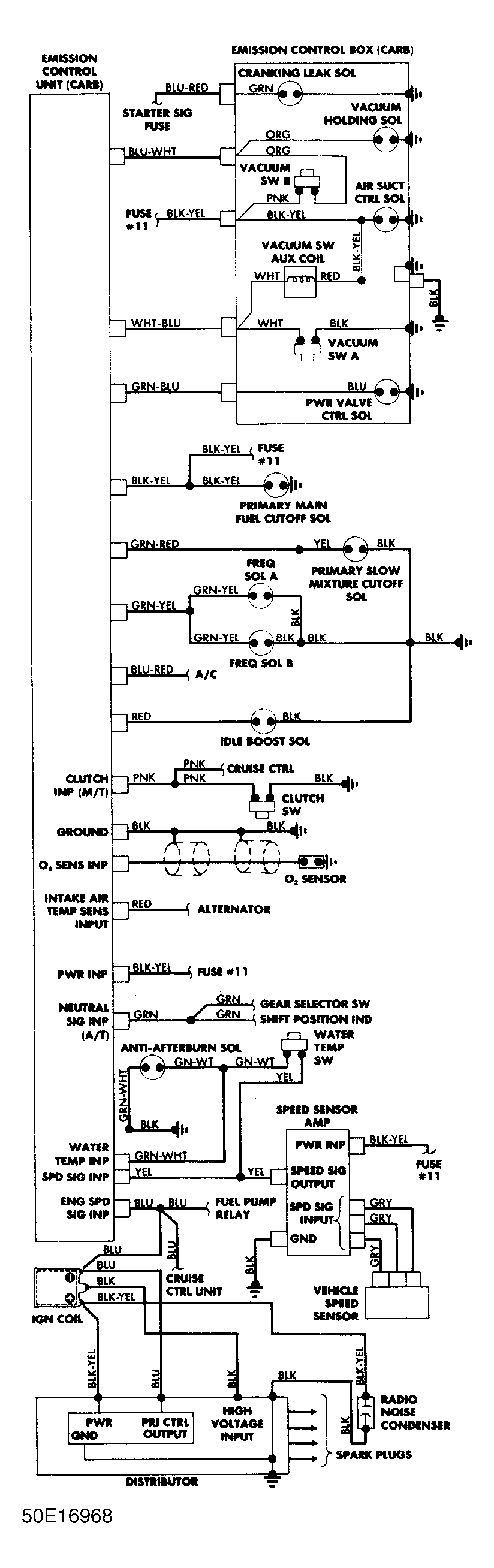

Fig 1: Feedback Carburetor System Wiring Diagram

G50E16968
