Main Switch

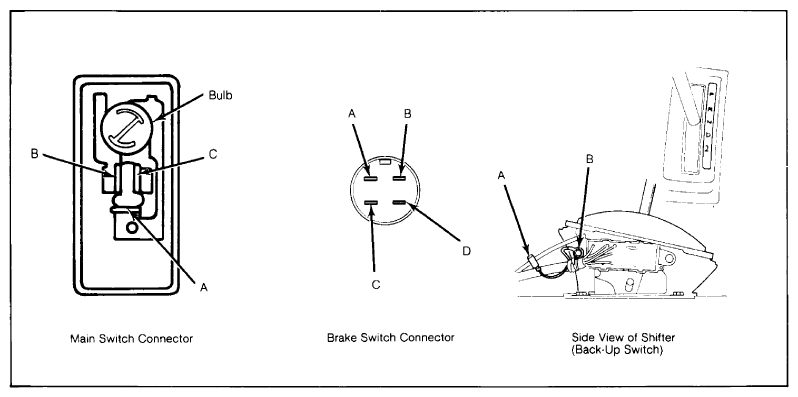

Use an ohmmeter to check resistance and continuity across main switch terminals. In both the on and off positions, there should be 20 ohms resistance between terminals A and B. In the on position, there should be continuity between terminals B and C. See Figure.
