HITACHI Electronic Ignition: Overhaul: Disassembly

  1. Carefully pry upward on reluctor by using 2 screwdrivers, cushioned with rags to prevent damage to distributor housing. See Fig 1. Use care not to damage reluctor or stator.
  2. On California and High Altitude automatic transmission equipped models, remove advance/retard diaphragm mount screw. Pull out on diaphragm arm, while pushing arm downward.
  3. Drive roll pin from distributor shaft. Remove shaft and gear from housing. Inspect and replace parts as necessary.

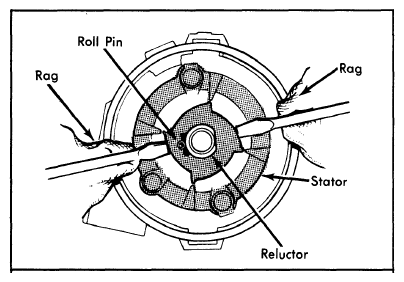

    Fig 1: Removing Reluctor From Shaft
    G09350960Courtesy of AMERICAN HONDA MOTOR CO., INC.
