Wiring Diagrams: Wiring Diagram

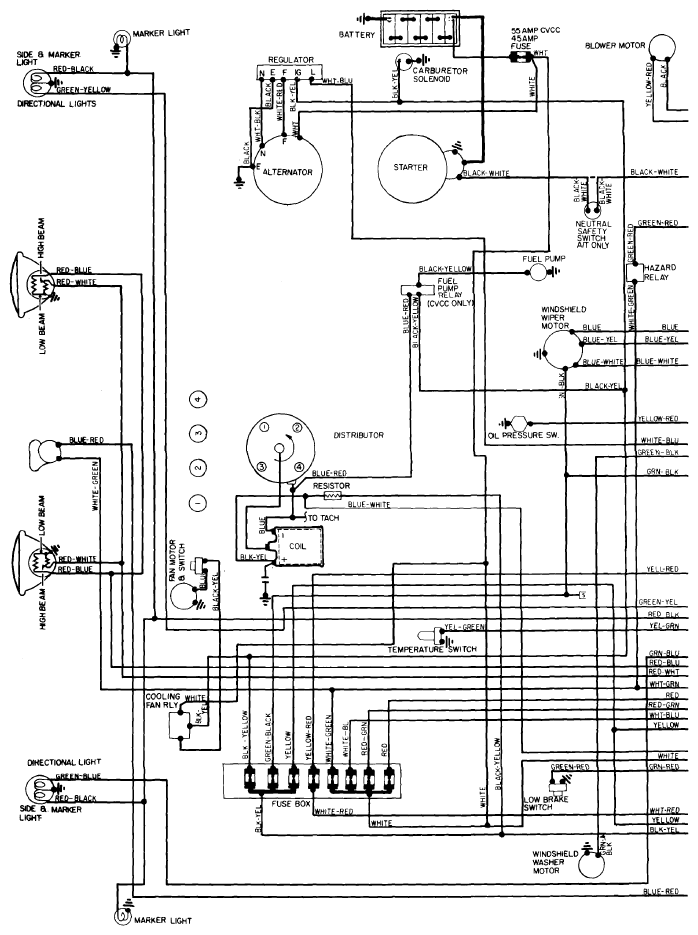

Fig 1: Wiring Diagram - Civic & Civic CVCC (1 of 2)
G09303523Courtesy of AMERICAN HONDA MOTOR CO., INC.

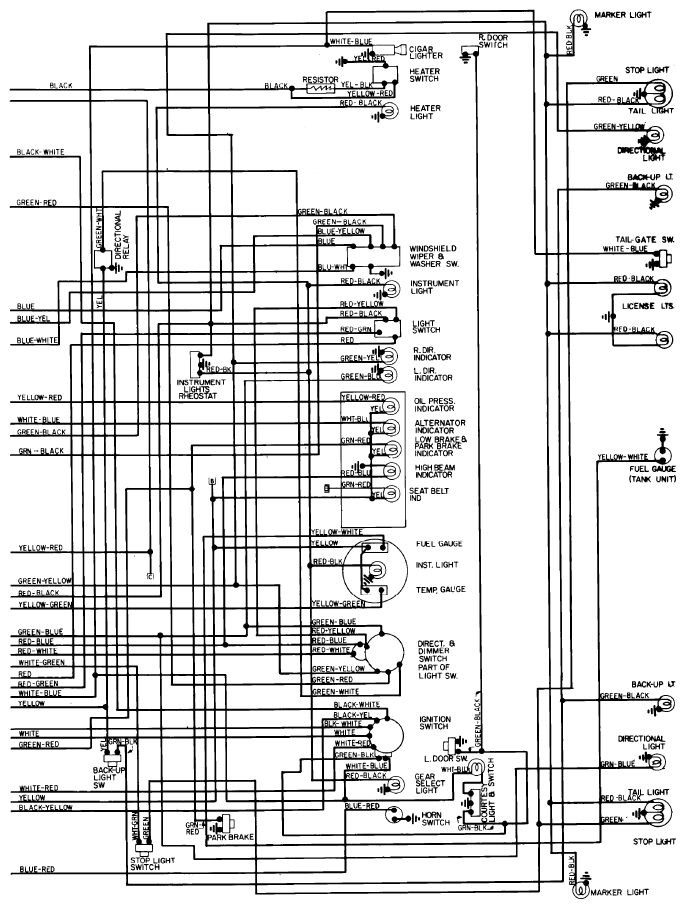

Fig 2: Wiring Diagram - Civic & Civic CVCC (2 of 2)
G09303524Courtesy of AMERICAN HONDA MOTOR CO., INC.
