NIPPONDENSO Alternators: Application

Model			Amps(1)	Part No.
Honda
	Accord		50	314-6-671
	Civic, CVCC		40	31100-671-014
Opel			40	94201052
Toyota(2)
	3K-C		40	24020
	2TC		40	36071
	2F
		Standard	40	60010, 60071
		With A/C	50	60020
		Heavy Duty	50	60030, 60040
		W/Vac. Pump	55	60080
	20R
		Standard	40	34031
		With A/C	45	38021
(1) Rated output at 14 volts at 3000 RPM (Toyota), 2000 RPM (Honda) and 1400 RPM (Opel). (2) All Toyota part numbers are preceded by 27020.

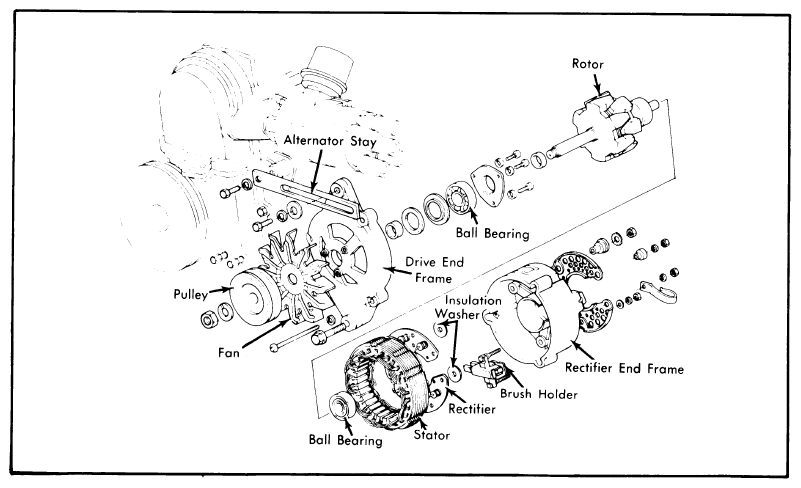

Fig 1: 1 Disassembled View of Nippondenso Alternator.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
